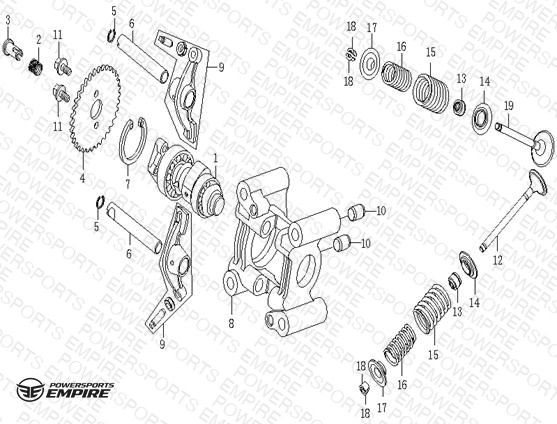

E06 — CYLINDER HEAD
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0030-024100 CAMSHAFT COMP. | CAMSHAFT COMP. | 1 | $103.49 | Obsolete | View Details |
| 02 | 0010-040010 SPRING | SPRING | 6 | $1.14 | Obsolete | View Details |
| 03 | 0010-040011-0050 JOINT, OIL PASSAGE | JOINT, OIL PASSAGE | 1 | $3.44 | Obsolete | View Details |
| 04 | 0030-024002 SPROCKET | SPROCKET | 1 | $28.74 | Obsolete | View Details |
| 05 | 30800-01005 CIRCLIP 10 | CIRCLIP 10 | 6 | $1.14 | Obsolete | View Details |
| 06 | 0030-024003 AXLE, ROCKARM | AXLE, ROCKARM | 1 | $4.59 | Obsolete | View Details |
| 07 | 30800-04205 SNAP RING | SNAP RING | 6 | $2.29 | Available to order | 6 |
| 08 | 0030-024001-0050 BRACKET, CAMSHAFT | BRACKET, CAMSHAFT | 1 | $42.50 | Obsolete | View Details |
| 09 | 0030-024200 ROCKARM COMP. | ROCKARM COMP. | 1 | $11.49 | Obsolete | View Details |
| 10 | 0010-021005 DOWEL PIN f 10x14 | DOWEL PIN f 10x14 | 6 | $1.25 | Available to order | 6 |
| 11 | 0040-022015-0050 BOLT, TIMING SPROCKET | BOLT, TIMING SPROCKET | 6 | $1.14 | Obsolete | View Details |
| 12 | 0090-022007 VALVE, EXHAUST | VALVE, EXHAUST BIG VALVE | 1 | $28.74 | Obsolete | View Details |
| 13 | 0010-022500-10000 SEAL RING, VALVE STEM | SEAL RING, VALVE STEM | 2 | $4.59 | Available to order | 2 |
| 14 | 0010-022001-0050 SPRING SOCKET, VALVE | SPRING SOCKET, VALVE | 1 | $3.44 | Obsolete | View Details |
| 15 | 0020-022003-0050 OUTER SPRING, VALVE | OUTER SPRING, VALVE | 1 | $3.44 | Obsolete | View Details |
| 16 | 0010-022004-0050 INNER SPRING, VALVE | INNER SPRING, VALVE | 1 | $2.29 | Obsolete | View Details |
| 17 | 0010-022005-0050 SPRING PLATE, VALVE | SPRING PLATE, VALVE | 1 | $2.29 | Obsolete | View Details |
| 18 | 0010-022006-0030 LOCK CLIP, VALVE | LOCK CLIP, VALVE | 6 | $3.44 | Obsolete | View Details |
| 19 | 0090-022002 VALVE, INTAKE | VALVE, INTAKE BIG VALVE | 1 | $28.74 | Obsolete | View Details |
