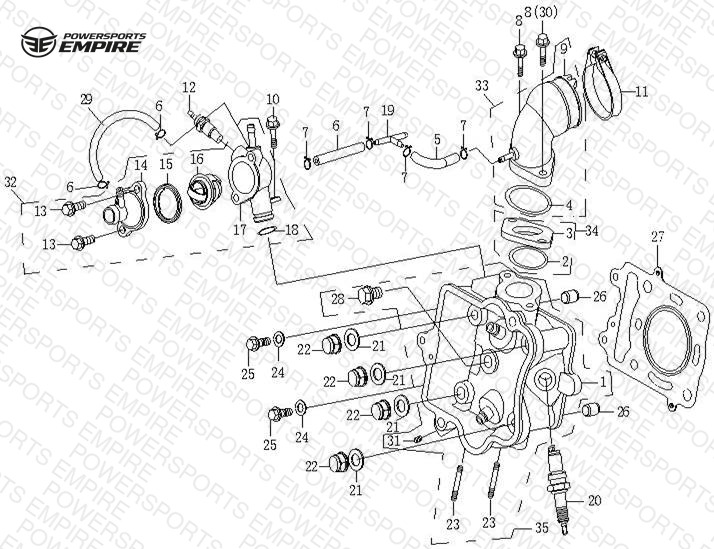

E07 — CYLINDER HEAD ASSY
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0060-022300-0080 CYLINDER HEAD | CYLINDER HEAD | 1 | $142.99 | Obsolete | View Details |
| 02 | 0010-022018 O-RING 27X2 | O-RING 27X2 | 2 | $1.14 | Obsolete | View Details |
| 03 | 0010-022019 GASKET, INJECTOR SEAT | GASKET, INJECTOR SEAT | 1 | $2.29 | Obsolete | View Details |
| 04 | 0010-022016 O-RING, 29.7X2.8 | O-RING, 29.7X2.8 | 2 | $1.14 | Obsolete | View Details |
| 05 | 0040-022019 VACUUM TUBE 77 | VACUUM TUBE 77 | 6 | $2.29 | Obsolete | View Details |
| 06 | 0010-022017 BREATHER HOSE,CARB. | BREATHER HOSE,CARB. | 1 | $1.14 | Obsolete | View Details |
| 07 | 30601-106530 CLIP | CLIP | 6 | $1.14 | Obsolete | View Details |
| 08 | 0010-080013-0010 BOLT M6x22 | BOLT M6x22 | 6 | $1.25 | Available to order | 6 |
| 09 | 0030-022100 JOINT COMP. CARBURETOR | JOINT COMP. CARBURETOR POINT OF VIEW, 77 | 1 | $18.39 | Obsolete | View Details |
| 10 | 0010-023008-00001 BOLT | BOLT | 6 | $1.25 | Available to order | 6 |
| 11 | 0010-022200 CLAMP | CLAMP | 1 | $4.59 | Obsolete | View Details |
| 12 | 0030-022600 SWITCH, WATER TEMP. | SWITCH, WATER TEMP. | 1 | $28.74 | Obsolete | View Details |
| 13 | 0010-090005-0010 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 14 | 0010-0228A0-0080 LOWER HOUSING, THERMOSTAT | LOWER HOUSING, THERMOSTAT | 1 | $4.59 | Obsolete | View Details |
| 15 | 0010-022802 SEAL RING | SEAL RING | 2 | $3.44 | Available to order | 2 |
| 16 | 0010-022810 THERMOSTAT COMP. | THERMOSTAT COMP. | 1 | $26.44 | Obsolete | View Details |
| 17 | 0010-0228B0-0080 UPPER HOUSING, THERMOSTAT | UPPER HOUSING, THERMOSTAT | 1 | $11.49 | Obsolete | View Details |
| 18 | 0010-022804 O-RING, 14.8x1.9 | O-RING, 14.8x1.9 | 2 | $1.14 | Obsolete | View Details |
| 19 | 0040-022017 VACUUM T-JOINT | VACUUM T-JOINT | 6 | $2.29 | Obsolete | View Details |
| 20 | 0800-022800 SPARK PLUG | SPARK PLUG | 1 | $12.64 | Available to order | 1 |
| 21 | 0010-021016 WASHER 8 | WASHER 8 | 6 | $1.25 | Available to order | 6 |
| 22 | 0010-022013-0020 NUT M8 | NUT M8 | 6 | $3.44 | Obsolete | View Details |
| 23 | 0110-022007-0010 STUD, EXHAUST PIPE | STUD, EXHAUST PIPE | 6 | $1.14 | Obsolete | View Details |
| 24 | 30300-060132 WASHER | WASHER SPS | 6 | $1.14 | Obsolete | View Details |
| 25 | 0010-021017-0030 BOLT M6x25 | BOLT M6x25 | 6 | — | Obsolete | View Details |
| 26 | 0010-021005 DOWEL PIN f 10x14 | DOWEL PIN f 10x14 | 6 | $1.25 | Available to order | 6 |
| 27 | 0060-022011 GASKET,CYLINDER | GASKET,CYLINDER | 1 | $9.19 | Obsolete | View Details |
| 28 | 0010-022303-0020 BOLT PLUG | BOLT PLUG | 6 | $1.14 | Obsolete | View Details |
| 29 | 0010-022021 COOLING HOSE, CARBURETOR | COOLING HOSE, CARBURETOR | 1 | $1.14 | Obsolete | View Details |
| 30 | 0030-022021-0030 BOLT M6x22 | BOLT M6x22 | 1 | $3.44 | Obsolete | View Details |
| 31 | 30120-060006050 SCREW | SCREW | 6 | $1.14 | Obsolete | View Details |
| 32 | 0010-022800 THERMOSTAT COMP. | THERMOSTAT COMP. | 1 | $28.74 | Obsolete | View Details |
| 33 | 0030-0221A0 JOINT, CARBURETOR | JOINT, CARBURETOR | 1 | $22.99 | Obsolete | View Details |
| 34 | 0010-0220A0 GASKET, CARBURETOR JOINT | GASKET, CARBURETOR JOINT | 1 | $3.44 | Obsolete | View Details |
| 35 | 0060-0223A0 CYLINDER COVER .COMP. | CYLINDER COVER .COMP. | 1 | $131.99 | Obsolete | View Details |
