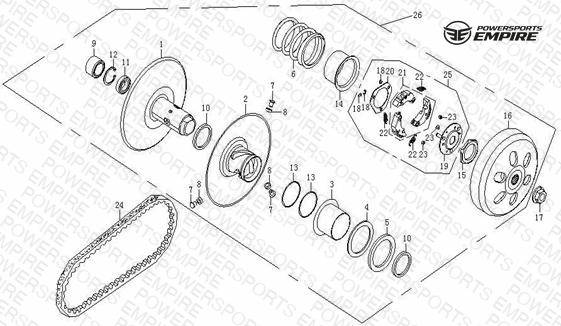

E12 — CLUTCH ASSY
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0030-052100 DRIVEN FACE COMP. | DRIVEN FACE COMP. | 1 | $45.99 | Obsolete | View Details |
| 02 | 0030-052200 MOVABLE DRIVEN FACE COMP. | MOVABLE DRIVEN FACE COMP. | 1 | $34.49 | Obsolete | View Details |
| 03 | 0030-052001 SEAL COLLAR | SEAL COLLAR | 1 | $11.49 | Obsolete | View Details |
| 04 | 0030-052005 PLASTIC WASHER | PLASTIC WASHER | 1 | $1.14 | Obsolete | View Details |
| 05 | 0030-052006 WASHER, DAMPER | WASHER, DAMPER | 1 | $2.29 | Obsolete | View Details |
| 06 | 0030-052002 SPRING, CLUTCH | SPRING, CLUTCH | 1 | $6.89 | Obsolete | View Details |
| 07 | 0030-052003 GUIDE PIN | GUIDE PIN | 6 | $2.29 | Obsolete | View Details |
| 08 | 0030-052004 ROLLER, GUIDE | ROLLER, GUIDE | 6 | $1.14 | Obsolete | View Details |
| 09 | 0110-052310 BEARING, NEEDLE 22X29X18 | BEARING, NEEDLE 22X29X18 | 1 | $9.19 | Obsolete | View Details |
| 10 | 0030-052300 SEAL, DRIVEN FACE | SEAL, DRIVEN FACE | 1 | $6.89 | Obsolete | View Details |
| 11 | 30400-01501 BEARING 61902 | BEARING 61902 | 1 | $9.19 | Obsolete | View Details |
| 12 | 30800-02815 CIRCLIP | CIRCLIP | 6 | $1.14 | Obsolete | View Details |
| 13 | 0030-052009 O-RING | O-RING | 2 | $1.14 | Obsolete | View Details |
| 14 | 0030-052008 SLEEVE | SLEEVE | 1 | $3.44 | Obsolete | View Details |
| 15 | 0030-052007 SPECIAL NUT | SPECIAL NUT | 6 | $3.44 | Obsolete | View Details |
| 16 | 0030-052400 CLUTCH OUTER COMP. | CLUTCH OUTER COMP. | 1 | $34.49 | Obsolete | View Details |
| 17 | 0110-052008-0020 BOLT,M12x1.25 | BOLT,M12x1.25 | 6 | $2.29 | Obsolete | View Details |
| 18 | 0030-052503 CIRCLIP 7 | CIRCLIP 7 | 6 | $1.14 | Obsolete | View Details |
| 19 | 0030-052510 HUB, CLUTCH RELEASE | HUB, CLUTCH RELEASE | 1 | $11.49 | Obsolete | View Details |
| 20 | 0030-052501 END PLATE, CLUTCH | END PLATE, CLUTCH | 1 | $4.59 | Obsolete | View Details |
| 21 | 0030-0525A0 CLUTCH WEIGHT SET | CLUTCH WEIGHT SET | 1 | $11.49 | Obsolete | View Details |
| 22 | 0030-052502 RETURN SPRING, CLUTCH | RETURN SPRING, CLUTCH | 3 | $2.29 | Obsolete | View Details |
| 23 | 0030-052530 RUBBER, DAMPER | RUBBER, DAMPER | 3 | $1.14 | Obsolete | View Details |
| 24 | 0030-053000 DRIVE BELT, TEETH TYPE | DRIVE BELT, TEETH TYPE | 1 | $91.99 | Obsolete | View Details |
| 25 | 0030-052500 CLUTCH KIT | CLUTCH KIT | 1 | $114.99 | Obsolete | View Details |
| 26 | 0030-052000 CLUTCH ASSY | CLUTCH ASSY | 1 | $252.99 | Obsolete | View Details |
