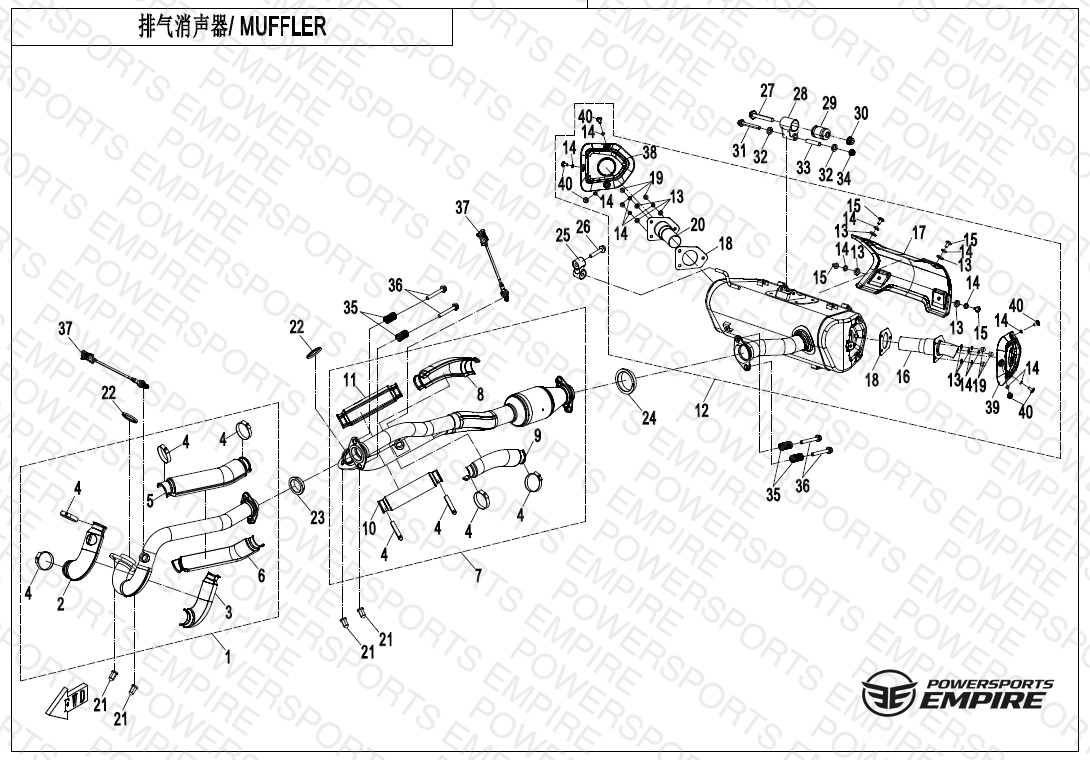

F02-1 — MUFFLER
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9AWV-021100-8001 EXHAUST PIPE ASSY, FRONT CYLINDER | EXHAUST PIPE ASSY, FRONT CYLINDER | 1 | $252.99 | Available to order | 1 |
| 02 | 9AWV-021100-8000-21 HEAT INSULATION GUARD 1 | HEAT INSULATION GUARD 1 | 1 | $11.49 | Available to order | 1 |
| 03 | 9AWV-021100-8000-22 HEAT INSULATION GUARD 2 | HEAT INSULATION GUARD 2 | 1 | $11.49 | Available to order | 1 |
| 04 | 7030-021305 A-TYPE CLAMP | A-TYPE CLAMP | 1 | $9.19 | Available to order | 1 |
| 05 | 9AWV-021100-8000-24 HEAT INSULATION GUARD 3 | HEAT INSULATION GUARD 3 | 1 | $6.89 | Available to order | 1 |
| 06 | 9AWV-021100-8000-27 HEAT INSULATION GUARD 4 | HEAT INSULATION GUARD 4 | 1 | $6.89 | Available to order | 1 |
| 07 | 9AWV-021200-8002 2 IN 1 EXHAUST PIPE ASSY | 2 IN 1 EXHAUST PIPE ASSY | 1 | $659.99 | Out of Stock | Notify Me |
| 08 | 9AWV-021200-8000-20 HEAT INSULATION GUARD 1 | HEAT INSULATION GUARD 1 | 1 | $6.89 | Available to order | 1 |
| 09 | 9AWV-021200-8000-21 HEAT INSULATION GUARD 2 | HEAT INSULATION GUARD 2 | 1 | $6.89 | Available to order | 1 |
| 10 | 9AWV-021200-8000-25 HEAT INSULATION GUARD 3 | HEAT INSULATION GUARD 3 | 1 | $4.59 | Available to order | 1 |
| 11 | 9AWV-021200-8000-27 HEAT INSULATION GUARD 4 | HEAT INSULATION GUARD 4 | 1 | $5.74 | Available to order | 1 |
| 12 | 9AWV-021300-8001 MUFFLER ASSY | MUFFLER ASSY | 1 | $989.99 | Out of Stock | Notify Me |
| 13 | 30306-060800 WASHER | WASHER | 6 | $2.29 | Available to order | 6 |
| 14 | 30303-060900 WASHER 6 | WASHER 6 | 6 | — | Obsolete | View Details |
| 15 | 6WWV-046701-5000 INNER HEX SCREW M6x13 | INNER HEX SCREW M6x13 | 2 | — | Obsolete | View Details |
| 16 | 9AWV-021332-8001 LH SPARK ARRESTOR | LH SPARK ARRESTOR | 1 | $45.99 | Available to order | 1 |
| 17 | 9AWV-021300-8001-20 MUFFLER DECO GUARD | MUFFLER DECO GUARD | 1 | $57.49 | Available to order | 1 |
| 18 | 9AWV-021001-8000 GASKET, GRAPHITE | GASKET, GRAPHITE | 1 | $11.49 | Obsolete | View Details |
| 19 | 30212-060830 NUT M6 | NUT M6 | 6 | — | Obsolete | View Details |
| 20 | 9AWV-021331-8001 RH SPARK ARRESTOR | RH SPARK ARRESTOR | 1 | $45.99 | Available to order | 1 |
| 21 | 8010-020001 NUT | NUT M8 | 6 | $1.25 | Available to order | 6 |
| 22 | 0800-022300 GASKET, EXHAUST PIPE | GASKET, EXHAUST PIPE | 1 | $10.34 | Available to order | 1 |
| 23 | 9AWA-021003-00002 SMALL GRAPHITE RING | SMALL GRAPHITE RING | 1 | $18.39 | Available to order | 1 |
| 24 | 9AWA-021004-00002 GRAPHITE RING, BIG | GRAPHITE RING, BIG | 1 | $20.69 | Available to order | 1 |
| 25 | 7020-000160 UPPER MOUNT,ENGINE | UPPER MOUNT,ENGINE | 1 | $26.44 | Available to order | 1 |
| 26 | 30006-080035810 BOLT M8x35 | BOLT M8x35 | 6 | $1.25 | Available to order | 6 |
| 27 | 30006-102070810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 28 | 9AWV-020004-8000 MOUNT ASSY, MUFFLER | MOUNT ASSY, MUFFLER | 1 | $5.74 | Available to order | 1 |
| 29 | 5BY0-020030-00001 CUSHION SLEEVE | CUSHION SLEEVE | 1 | $22.99 | Available to order | 1 |
| 30 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 31 | 30006-080065810 BOLT M8x65 | BOLT M8x65 | 6 | $2.29 | Available to order | 6 |
| 32 | 9CR6-020003 LOCK WASHER | LOCK WASHER | 6 | $5.74 | Available to order | 6 |
| 33 | 7020-020001 BUSHING,MUFFLER PIPE | BUSHING,MUFFLER PIPE | 1 | $5.74 | Available to order | 1 |
| 34 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 35 | 9AWA-021001 SPRING | SPRING | 1 | $3.44 | Available to order | 1 |
| 36 | 9AWV-020022-8001 LIMIT BOLT | LIMIT BOLT | 2 | $6.89 | Available to order | 2 |
| 37 | 0HU0-176000 OXYGEN SENSOR | OXYGEN SENSOR | 1 | $208.99 | Available to order | 1 |
| 38 | 9AWV-021300-8000-23 MUFFLER RH DECO GUARD | MUFFLER RH DECO GUARD | 1 | $29.89 | Available to order | 1 |
| 39 | 9AWV-021300-8000-21 MUFFLER LH DECO GUARD | MUFFLER LH DECO GUARD | 1 | $29.89 | Available to order | 1 |
| 40 | 9AWV-021300-8000-22 SCREW | SCREW | 2 | $2.29 | Available to order | 2 |
