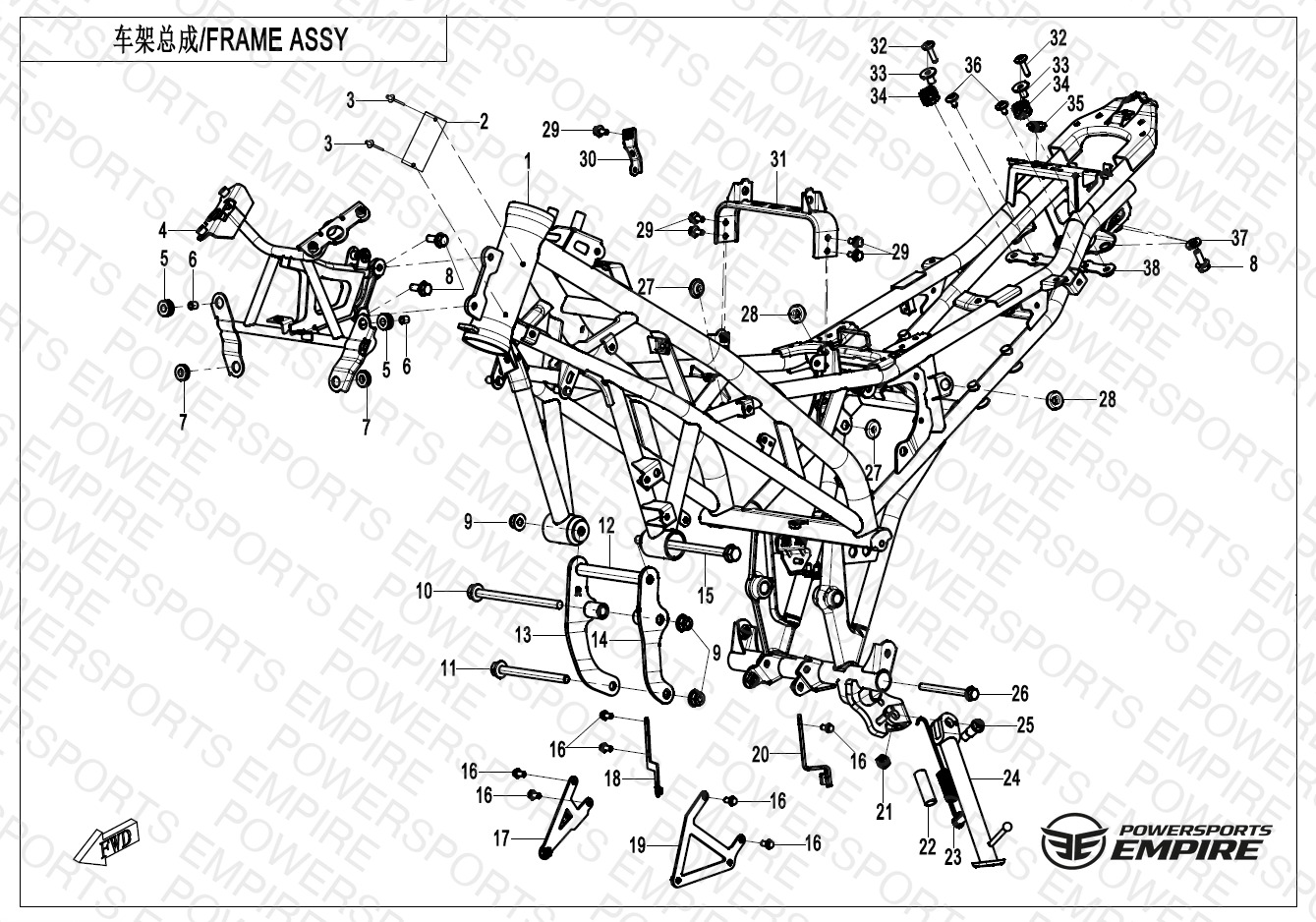

F03-1 — FRAME
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 6KNV-031000-7201-0BP00 FRAME | FRAME | 1 | — | Obsolete | View Details |
| 03 | 30902-0400820 POP RIVET | POP RIVET | 6 | — | Obsolete | View Details |
| 04 | 6KMV-030400-3000 FRONT FRAME | FRONT FRAME | 1 | $81.64 | Available to order | 1 |
| 05 | 6090-040302 RUBBER DAMPER | RUBBER DAMPER | 6 | $1.25 | Out of Stock | Notify Me |
| 06 | 6090-040303 BUSHING | BUSHING | 6 | $1.25 | Available to order | 6 |
| 07 | 9010-160101 RUBBER CUSHION,HEADLIGHT | RUBBER CUSHION,HEADLIGHT | 6 | $1.25 | Available to order | 6 |
| 08 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 09 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 10 | 30001-102150110 BOLT M10x1.25x150 | BOLT M10x1.25x150 M10x1.25x150 | 6 | $8.04 | Available to order | 6 |
| 11 | 30006-102120810 BOLT M10X1.25X120 | BOLT M10X1.25X120 | 6 | $6.89 | Available to order | 6 |
| 12 | 6KMV-030030-3000 ENGINE FRONT BUSHING | ENGINE FRONT BUSHING | 1 | $14.94 | Out of Stock | Notify Me |
| 13 | 6KMV-030020-3000 ENGINE RH CONNECTING BRACKET | ENGINE RH CONNECTING BRACKET | 1 | $14.94 | Out of Stock | Notify Me |
| 14 | 6KMV-030010-3000 ENGINE LH CONNECTING BRACKET | ENGINE LH CONNECTING BRACKET | 1 | $14.94 | Out of Stock | Notify Me |
| 15 | 30001-102170110 BOLT M10x1.25x170 | BOLT M10x1.25x170 | 6 | $8.04 | Available to order | 6 |
| 16 | 0010-021019-0010 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $2.29 | Available to order | 6 |
| 17 | 6KMV-030060-3000 ENGINE DEFLECTOR RH FRONT BRACKET | ENGINE DEFLECTOR RH FRONT BRACKET | 1 | $11.49 | Available to order | 1 |
| 18 | 6KMV-030070-3000 ENGINE DEFLECTOR RH REAR BRACKET | ENGINE DEFLECTOR RH REAR BRACKET | 1 | $6.89 | Available to order | 1 |
| 19 | 6KMV-030040-3000 ENGINE DEFLECTOR LH FRONT BRACKET | ENGINE DEFLECTOR LH FRONT BRACKET | 1 | $11.49 | Available to order | 1 |
| 20 | 6KMV-030050-3000 ENGINE DEFLECTOR LH REAR BRACKET | ENGINE DEFLECTOR LH REAR BRACKET | 1 | $6.89 | Available to order | 1 |
| 21 | 30208-102010 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Out of Stock | Notify Me |
| 22 | A000-030004 SPRING COLLAR, SIDE STAND | SPRING COLLAR, SIDE STAND | 1 | $3.44 | Available to order | 1 |
| 23 | 6KMV-030060-C000 SPRING, SIDE STAND | SPRING, SIDE STAND | 1 | $11.49 | Available to order | 1 |
| 24 | 6KMV-030300-3000-0BP00 SIDE STAND | SIDE STAND MAUD SPIRIT BLACK | 1 | $21.84 | Available to order | 1 |
| 25 | A000-030006 BOLT, SIDE STAND | BOLT, SIDE STAND | 1 | $3.44 | Available to order | 1 |
| 26 | 30006-080090810 BOLT M8X90 | BOLT M8X90 | 6 | $2.29 | Available to order | 6 |
| 27 | 6KMV-041112-3000 M6 RUBBER SLEEVE | M6 RUBBER SLEEVE | 2 | $5.74 | Available to order | 2 |
| 28 | 6KWV-041114-1000 RUBBER HEAD | RUBBER HEAD | 2 | $2.29 | Available to order | 2 |
| 29 | 30006-060012810 BOLT M6x12 | BOLT M6x12 | 6 | — | Obsolete | View Details |
| 30 | 6KMV-030110-3000 BRACKET, OIL CUP | BRACKET, OIL CUP | 1 | $6.89 | Out of Stock | Notify Me |
| 31 | 6KM0-030100-2B200 REAR MOUNTING ASSY,FUEL TANK | REAR MOUNTING ASSY,FUEL TANK MATTE BLACK | 1 | $34.49 | Out of Stock | Notify Me |
| 32 | 6WWV-047002-5000 INNER HEX SCREW M6x26 | INNER HEX SCREW M6x26 | 2 | $1.25 | Out of Stock | Notify Me |
| 33 | 6GU#-000202-6000 T SHAPE BUSHING | T SHAPE BUSHING | 1 | $2.29 | Available to order | 1 |
| 34 | 5020-031001 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
| 35 | 5BY0-040010 RUBBER COLLAR | RUBBER COLLAR | 6 | $2.29 | Available to order | 6 |
| 36 | 6WWV-046702-5000 INNER HEX SCREW M6x13 | INNER HEX SCREW M6x13 | 6 | $1.25 | Available to order | 6 |
| 37 | 30306-100112 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 38 | 6KNV-030010-7000 ECU BRACKET | ECU BRACKET | 1 | $6.89 | Out of Stock | Notify Me |
