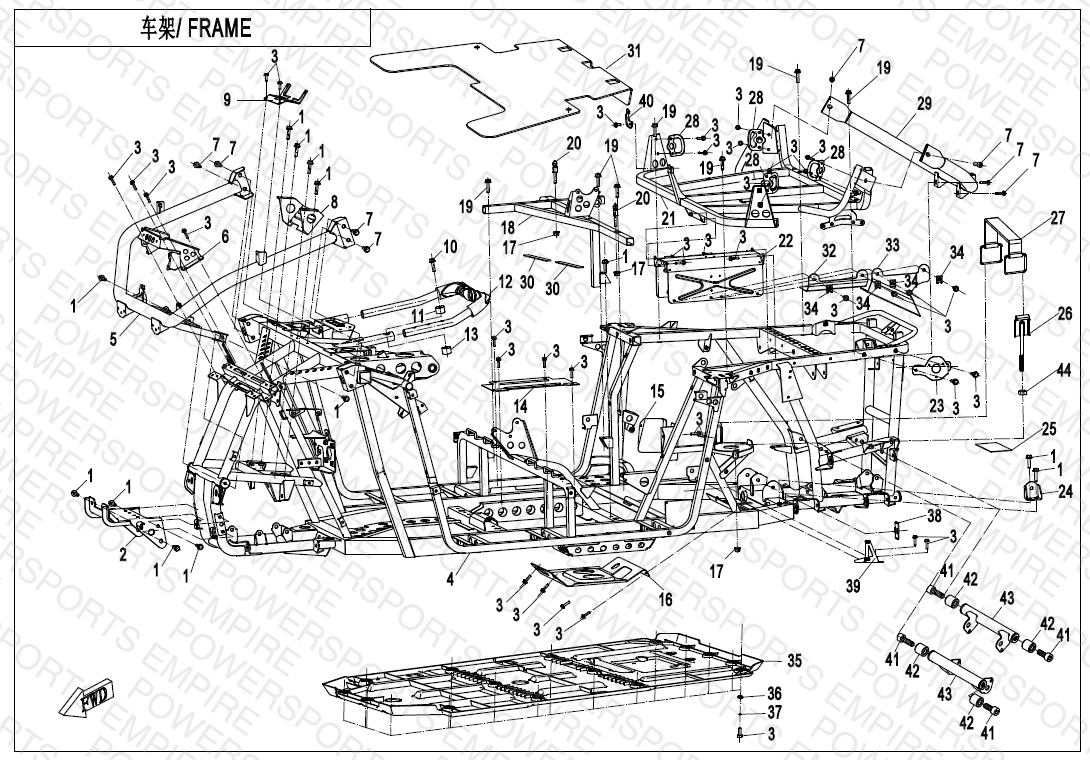

F03-B-V2 — FRAME
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-080016810 BOLT M8X16 | BOLT M8X16 M8x16 | 6 | $1.25 | Available to order | 6 |
| 02 | 7000-037370 BRACKET,WINCH | BRACKET,WINCH | 1 | $91.99 | Available to order | 1 |
| 03 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 04 | 5BWB-031000-40000 FRAME ASSY. | FRAME ASSY. | 1 | $2529.99 | Obsolete | View Details |
| 05 | 7000-031500 FRONT BUMPER | FRONT BUMPER | 1 | $406.99 | Out of Stock | Notify Me |
| 06 | 9060-037110-10000 UPPER BRACKET, RESERVOIR TANK | UPPER BRACKET, RESERVOIR TANK | 1 | $24.14 | Available to order | 1 |
| 07 | 30006-102016810 BOLT | BOLT M10x1.25x16 | 6 | $3.44 | Available to order | 6 |
| 08 | 9060-037450 MOUNTING SEAT, STEERING MOTOR | MOUNTING SEAT, STEERING MOTOR | 1 | $45.99 | Available to order | 1 |
| 09 | 7000-030030-10000 BRACKET, FUSE BOX | BRACKET, FUSE BOX | 1 | $9.19 | Out of Stock | Notify Me |
| 10-01 | 30102-080050870 INNER HEX SCREW M8x50 | INNER HEX SCREW M8x50 M8x50 | 6 | $2.29 | Available to order | 6 |
| 11 | 7000-100004-10000 UPPER PRESS BLOCK, PASSENGER ARMREST | UPPER PRESS BLOCK, PASSENGER ARMREST | 1 | $8.61 | Available to order | 1 |
| 12 | 7000-100110 ARM REST | ARM REST | 1 | $114.99 | Available to order | 1 |
| 13 | 7000-100005-10000 LOWER PRESS BLOCK, PASSENGER ARMREST | LOWER PRESS BLOCK, PASSENGER ARMREST | 1 | $8.61 | Obsolete | View Details |
| 14 | 9060-038125 HEAT INSULATOR, FUEL TANK | HEAT INSULATOR, FUEL TANK | 1 | $28.74 | Obsolete | View Details |
| 15 | 7000-031701 REAR PLATE,FUEL TANK | REAR PLATE,FUEL TANK | 1 | $22.99 | Available to order | 1 |
| 16 | 7000-031801-00001 ENGINE BASE PLATE | ENGINE BASE PLATE | 1 | $34.49 | Available to order | 1 |
| 17 | 30204-080810 LOCK NUT | LOCK NUT M8 | 6 | $1.25 | Available to order | 6 |
| 18 | 7000-031100-20000 MOUNT BRACKET, SEAT | MOUNT BRACKET, SEAT | 1 | $131.99 | Out of Stock | Notify Me |
| 19 | 30006-080040810 BOLT | BOLT M8x40 | 6 | $2.29 | Available to order | 6 |
| 20 | 9060-037663 LIMIT ROD, SEAT | LIMIT ROD, SEAT | 1 | $18.39 | Obsolete | View Details |
| 21 | 7000-031200-10000 BRACKET, REAR CARGO BOX | BRACKET, REAR CARGO BOX | 1 | $219.99 | Out of Stock | Notify Me |
| 22 | 7000-020020 HEAT INSULTOR | HEAT INSULTOR | 1 | $80.49 | Obsolete | View Details |
| 23 | 7000-031810 SEAT,TRAILER POWER | SEAT,TRAILER POWER | 1 | $13.79 | Available to order | 1 |
| 24 | 7000-031802 BRACKET, ENGINE | BRACKET, ENGINE | 1 | $8.04 | Available to order | 1 |
| 25 | 9010-120008 SPONGE PAD | SPONGE PAD | 6 | $3.44 | Available to order | 6 |
| 26 | 5BWB-030050 BRACKET, BATTERY STRIP | BRACKET, BATTERY STRIP | 1 | $8.04 | Obsolete | View Details |
| 27 | 401B-150700 FIXING TIES, BATTERY | FIXING TIES, BATTERY | 1 | $17.24 | Available to order | 1 |
| 28 | 9030-220004 HOOK,BAND | HOOK,BAND | 1 | $5.74 | Available to order | 1 |
| 29 | 7000-031400-00001 REAR BUMPER | REAR BUMPER | 1 | $252.99 | Out of Stock | Notify Me |
| 30 | 9060-038129 SPONGE, HEAT ISOLATOR | SPONGE, HEAT ISOLATOR | 6 | $3.44 | Available to order | 6 |
| 31 | 7000-038111-10001 HEAT INSULATOR, CARGO BOX | HEAT INSULATOR, CARGO BOX | 1 | $114.99 | Out of Stock | Notify Me |
| 32 | 7000-031805 HEAT INSULATOR MUFFLER | HEAT INSULATOR MUFFLER | 1 | — | Obsolete | View Details |
| 33 | 7000-031806 HEAT INSULATOR,MUFFLER | HEAT INSULATOR,MUFFLER | 1 | $22.99 | Out of Stock | Notify Me |
| 34 | 8030-040800-00001 NUT CLIP M6 | NUT CLIP M6 M6 | 6 | $2.29 | Available to order | 6 |
| 35 | 9060-040024-10000 SKID PLATE. (TRUCK FREIGHT) | SKID PLATE. (TRUCK FREIGHT) | 1 | $384.99 | Out of Stock | Notify Me |
| 36 | 9060-040028 CUPPED WASHER | CUPPED WASHER | 1 | $3.44 | Available to order | 1 |
| 37 | 30303-060112 LOCK WASHER | LOCK WASHER 6 | 6 | $1.25 | Available to order | 6 |
| 38 | 9060-038122 RECTANGLE PIUG | RECTANGLE PIUG | 6 | $3.44 | Available to order | 6 |
| 39 | 5BWB-030110-00001 PARKING CABLE BRACKET | PARKING CABLE BRACKET | 1 | $10.34 | Obsolete | View Details |
| 40 | 7000-030040 SEAT, AIR INLET PORT | SEAT, AIR INLET PORT | 1 | $4.59 | Available to order | 1 |
| 41 | 30102-102035810 SCREW M10X35 | SCREW M10X35 M10x1.25x35 | 6 | $2.29 | Available to order | 6 |
| 42 | 7000-031803 MOUNTING BUSH,REAR AXLE | MOUNTING BUSH,REAR AXLE | 1 | $4.59 | Available to order | 1 |
| 43 | 7000-030010-10000 MOUNT FRAME, REAR GEAR CASE | MOUNT FRAME, REAR GEAR CASE | 1 | $13.79 | Available to order | 1 |
| 44 | 30200-080810 NUT M8 | NUT M8 M8 | 6 | $2.29 | Available to order | 6 |
