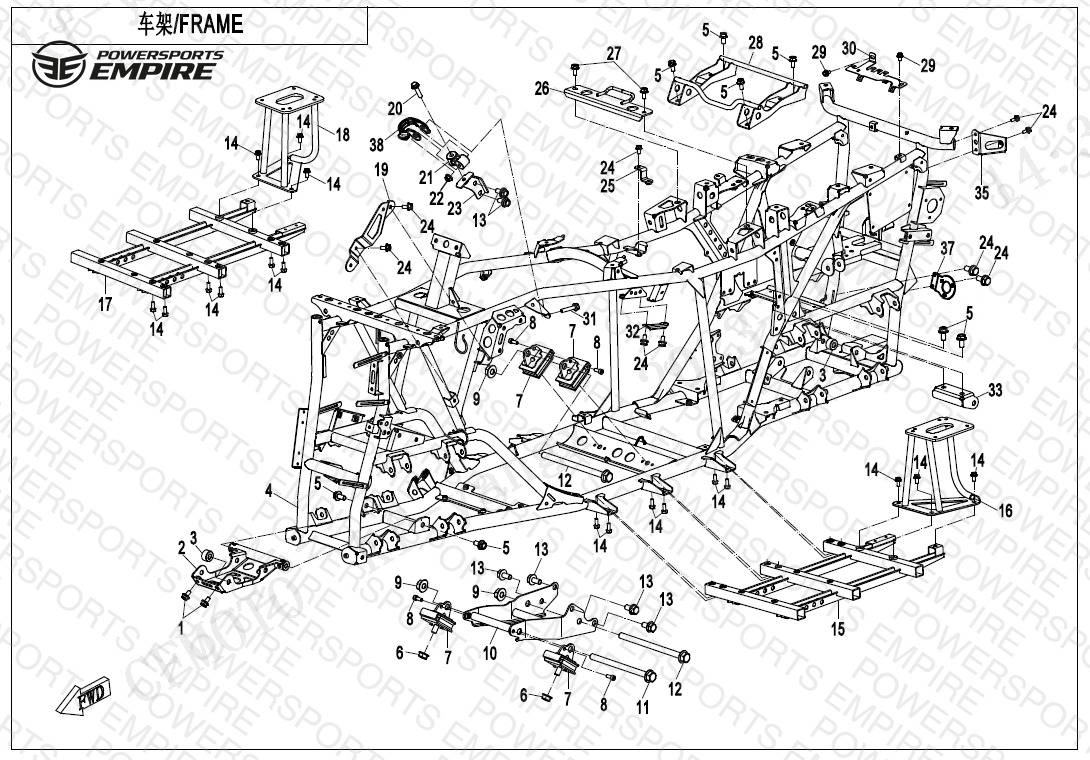

F03-V4 — FRAME
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-080014810 BOLT M8X14 | BOLT M8X14 | 6 | $1.25 | Available to order | 6 |
| 02 | 9DS#-030100-6001 BRACKET, FRONT GEAR CASE | BRACKET, FRONT GEAR CASE | 1 | $28.74 | Available to order | 1 |
| 03 | 9AWA-030002 BUSHING, FRONT AXLE | BUSHING, FRONT AXLE | 1 | $3.44 | Available to order | 1 |
| 04 | 9CSV-031000-A005-01-0BP00 FRAME | FRAME MAUD SPIRIT BLACK | 1 | — | Obsolete | View Details |
| 05 | 30006-102020810 BOLT M10x1.25x20 | BOLT M10x1.25x20 | 6 | $2.29 | Out of Stock | Notify Me |
| 06 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 07 | 9DQV-000300-3000 MOUNT, ENGINE | MOUNT, ENGINE | 1 | $32.19 | Available to order | 1 |
| 08 | 30102-060016810 SCREW | SCREW | 6 | $1.25 | Available to order | 6 |
| 09 | 30204-122810 NUT M12x1.25 | NUT M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 10 | 9CR6-001100-20000 FRONT BRACKET, ENGINE | FRONT BRACKET, ENGINE ELECTROPHORESIS BLACK | 1 | $40.24 | Available to order | 1 |
| 11 | 30006-122170810 BOLT | BOLT | 6 | $11.49 | Available to order | 6 |
| 12 | 30006-122180810 BOLT | BOLT | 6 | $12.64 | Available to order | 6 |
| 13 | 30006-103020810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 14 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 15 | 9CS#-030300-6401 BRACKET, LH FOOTREST | BRACKET, LH FOOTREST | 1 | $131.99 | Available to order | 1 |
| 16 | 9CS#-030500-6400 BRACKET, LH PEDAL | BRACKET, LH PEDAL | 1 | $91.99 | Available to order | 1 |
| 17 | 9CS#-030400-6401 BRACKET, RH FOOTREST | BRACKET, RH FOOTREST | 1 | $114.99 | Available to order | 1 |
| 18 | 9CS#-030600-6400 BRACKET, RH PEDAL | BRACKET, RH PEDAL | 1 | $91.99 | Available to order | 1 |
| 19 | 9DS#-030070-6000 BRACKET, EPS CONTROLLER | BRACKET, EPS CONTROLLER | 1 | $17.24 | Available to order | 1 |
| 20 | 30006-080035810 BOLT M8x35 | BOLT M8x35 | 6 | $1.25 | Available to order | 6 |
| 21 | 7020-000160 UPPER MOUNT,ENGINE | UPPER MOUNT,ENGINE | 1 | $26.44 | Available to order | 1 |
| 22 | 30204-080810 LOCK NUT | LOCK NUT M8 | 6 | $1.25 | Available to order | 6 |
| 23 | 9DSV-030040-6002 UPPER BRACKET, ENGINE | UPPER BRACKET, ENGINE | 1 | $11.49 | Available to order | 1 |
| 24 | 30006-060012810 BOLT M6x12 | BOLT M6x12 | 6 | — | Obsolete | View Details |
| 25 | 9DSV-030020-A000 BRACKET, AIR FILTER | BRACKET, AIR FILTER | 1 | $11.49 | Available to order | 1 |
| 26 | 9DS#-030020-6000 BRACKET, FRONT SEAT | BRACKET, FRONT SEAT ELECTROPHORESIS BLACK | 1 | $19.54 | Available to order | 1 |
| 27 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 28 | 9CS#-030100-6400 BRACKET, REAR SEAT | BRACKET, REAR SEAT ELECTROPHORESIS BLACK | 1 | $91.99 | Out of Stock | Notify Me |
| 29 | 30006-060010810 BOLT M6X10 | BOLT M6X10 | 6 | $1.25 | Available to order | 6 |
| 30 | 9DSV-030081-6K00 LOCKING PLATE 4, WIRE CONNECTOR | LOCKING PLATE 4, WIRE CONNECTOR | 1 | $8.04 | Available to order | 1 |
| 31 | 30006-080045810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 32 | 9DS#-030091-6000 PRESSING PLATE III, WIRE CONNNECTOR | PRESSING PLATE III, WIRE CONNNECTOR | 1 | $11.49 | Available to order | 1 |
| 33 | 9CRB-030010 SUSPENSION BRACKET ASSY, REAR GEAR CASE | SUSPENSION BRACKET ASSY, REAR GEAR CASE | 1 | $11.49 | Available to order | 1 |
| 34 | 9DS#-030504-6000 RH BRACKET, REAR TRUNK | RH BRACKET, REAR TRUNK | 1 | $8.04 | Available to order | 1 |
| 35 | 9DS#-030503-6000 LH BRACKET, REAR TRUNK | LH BRACKET, REAR TRUNK | 1 | $8.04 | Out of Stock | Notify Me |
| 36 | 30305-060112 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 37 | 9DSV-030010-A000 TRAILER POWER BRACKET | TRAILER POWER BRACKET | 1 | $6.89 | Available to order | 1 |
| 38 | 9DSV-030060-6000 UPPER LIMIT BRACKET | UPPER LIMIT BRACKET | 1 | $11.49 | Available to order | 1 |
