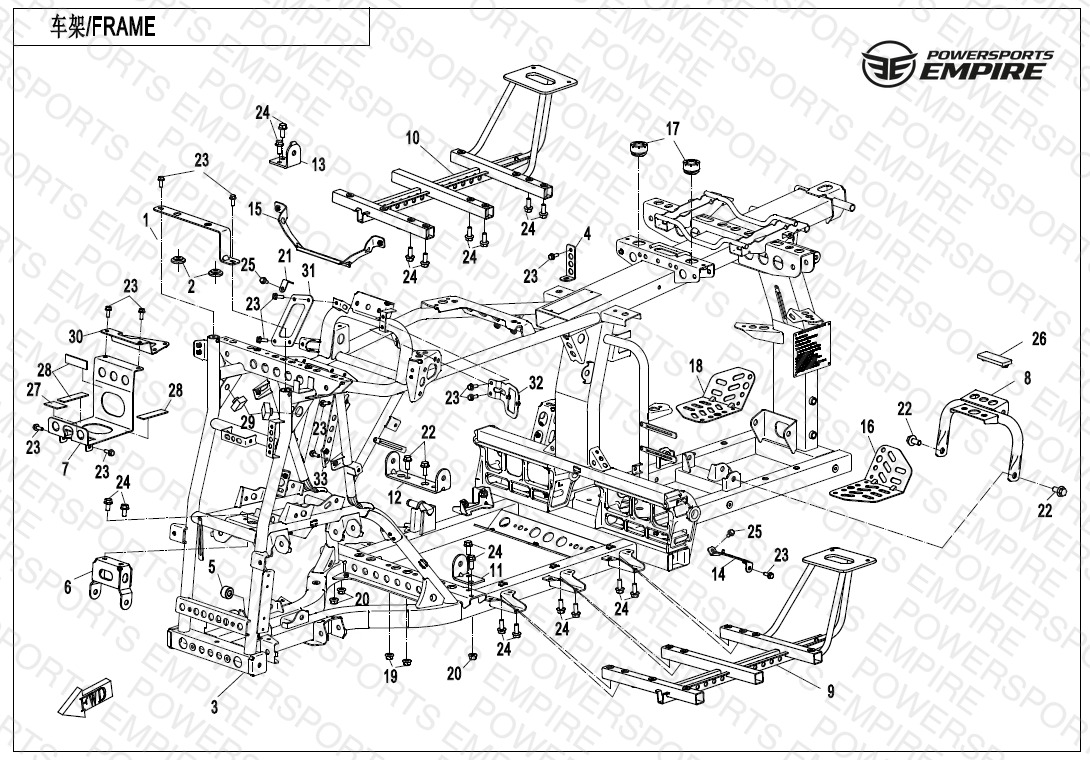

F03-V4 — FRAME
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9AWA-030201 PRESS PLATE, BATTERY | PRESS PLATE, BATTERY | 1 | $16.09 | Available to order | 1 |
| 02 | 9010-030005 RUBBER WASHER | RUBBER WASHER | 6 | $1.25 | Available to order | 6 |
| 03 | 9AWA-031000-A0000 FRAME | FRAME | 1 | $1429.99 | Obsolete | View Details |
| 04 | 9AWA-030001 BRACKET, REAR HEAT INSULATION | BRACKET, REAR HEAT INSULATION | 1 | $6.89 | Out of Stock | Notify Me |
| 05 | 9AWA-030002 BUSHING, FRONT AXLE | BUSHING, FRONT AXLE | 1 | $3.44 | Available to order | 1 |
| 06 | 9AWA-037000 UPPER BRACKET, FRONT DIFFERENTIAL | UPPER BRACKET, FRONT DIFFERENTIAL | 1 | $45.99 | Available to order | 1 |
| 08 | 9AWA-033000-10000 UPPER BRACKET, REAR DIFFERENTIAL | UPPER BRACKET, REAR DIFFERENTIAL | 1 | $28.87 | Available to order | 1 |
| 09 | 9AWA-035000 BRACKET, RUNNING BOARD, LH | BRACKET, RUNNING BOARD, LH | 1 | $103.49 | Out of Stock | Notify Me |
| 10 | 9AWA-034000 BRACKET, RUNNING BOARD, RH | BRACKET, RUNNING BOARD, RH | 1 | $103.49 | Out of Stock | Notify Me |
| 11 | 9AWA-030003 FRONT MOUNT, LH, ENGINE | FRONT MOUNT, LH, ENGINE | 1 | $11.49 | Available to order | 1 |
| 12 | 9AWA-030004 FRONT ENGINE MOUNT BRACKET | FRONT ENGINE MOUNT BRACKET | 1 | $28.74 | Available to order | 1 |
| 13 | 9AWA-030005 FRONT ENGINE MOUNT PLATE, RH | FRONT ENGINE MOUNT PLATE, RH | 1 | $11.49 | Available to order | 1 |
| 14 | 9AWA-038000 BRACKET, PARKING CABLE | BRACKET, PARKING CABLE | 1 | $11.49 | Available to order | 1 |
| 15 | 9AWA-030120-10000 HEAD GUARD BRACKET | HEAD GUARD BRACKET | 1 | $11.49 | Available to order | 1 |
| 16 | 9AWA-030006 GUARD, LH | GUARD, LH | 1 | $68.99 | Available to order | 1 |
| 17 | 7020-130001 RUBBER SLEEVE, SEAT | RUBBER SLEEVE, SEAT | 1 | $5.74 | Available to order | 1 |
| 18 | 9AWA-030007 GUARD, RH | GUARD, RH | 1 | $68.99 | Available to order | 1 |
| 19 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 20 | 30204-080810 LOCK NUT | LOCK NUT M8 | 6 | $1.25 | Available to order | 6 |
| 21 | 7020-230003 BRACKET, FLASHER | BRACKET, FLASHER | 1 | — | Obsolete | View Details |
| 22 | 30006-102020810 BOLT M10x1.25x20 | BOLT M10x1.25x20 M10x1.25x20 | 6 | $2.29 | Out of Stock | Notify Me |
| 23 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 24 | 30006-080020810 BOLT M8x20 | BOLT M8x20 M8x20 | 6 | $1.25 | Available to order | 6 |
| 25 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 26 | 9AWA-120001 DAMPER, FUEL TANK | DAMPER, FUEL TANK | 1 | $4.59 | Obsolete | View Details |
| 27 | 9010-120008 SPONGE PAD | SPONGE PAD | 6 | $3.44 | Available to order | 6 |
| 28 | 4020-040402 SPONGE, FRONT TOP COVER | SPONGE, FRONT TOP COVER | 6 | $2.29 | Available to order | 6 |
| 29 | 5190-001003 RUBBER CUSHION,MAIN BRACKET | RUBBER CUSHION,MAIN BRACKET | 6 | $3.44 | Available to order | 6 |
| 30 | 9AWA-039300 BRACKET ASSY, WINCH CONTROLLER | BRACKET ASSY, WINCH CONTROLLER | 1 | $10.34 | Available to order | 1 |
| 31 | 9AWA-030030 CONVERTING BRACKET, ECU | CONVERTING BRACKET, ECU | 1 | $11.49 | Available to order | 1 |
| 32 | 9AWA-030060 MOUNTING BRACKET ASSY, IGNITION COIL | MOUNTING BRACKET ASSY, IGNITION COIL | 1 | $10.34 | Obsolete | View Details |
| 33 | 9AWA-030040 BRACKET, REGULATOR | BRACKET, REGULATOR | 1 | $11.49 | Available to order | 1 |
