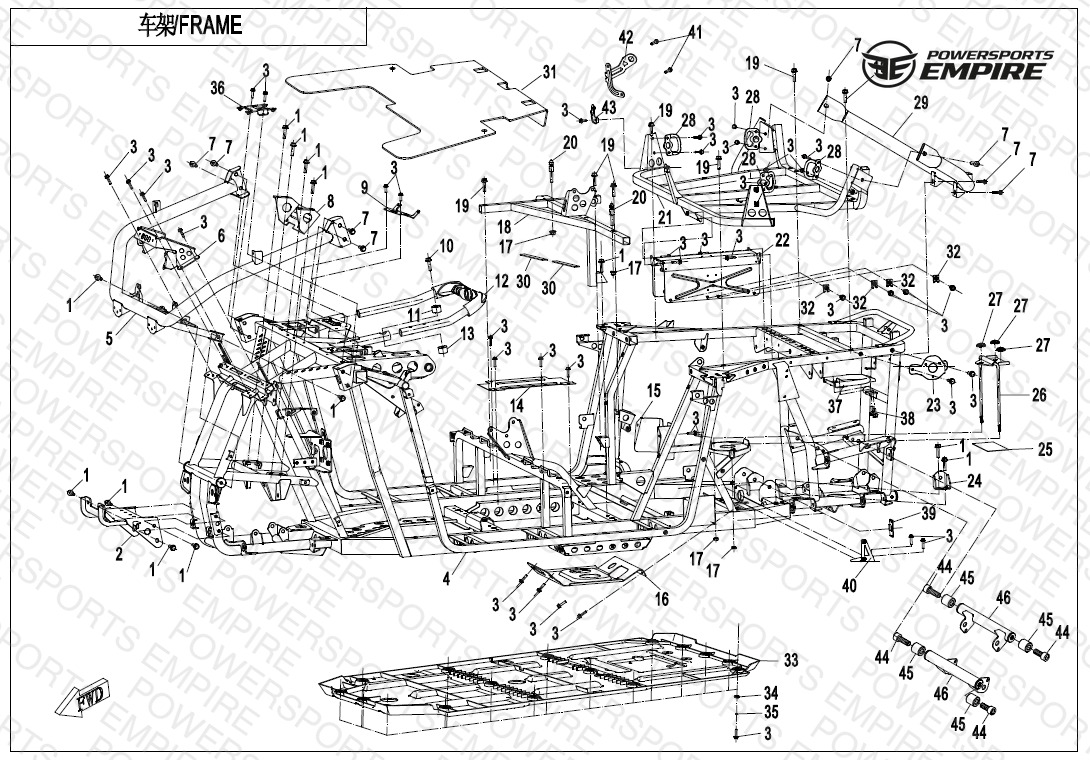

F03-V4 — FRAME
Parts (46)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 02 | 7000-037370 BRACKET,WINCH | BRACKET,WINCH | 1 | $91.99 | Available to order | 1 |
| 03 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 04 | 5BY2-031000-80000 FRAME | FRAME | 1 | $2749.99 | Obsolete | View Details |
| 05 | 7000-031500 FRONT BUMPER | FRONT BUMPER | 1 | $406.99 | Out of Stock | Notify Me |
| 06 | 9060-037110-10000 UPPER BRACKET, RESERVOIR TANK | UPPER BRACKET, RESERVOIR TANK | 1 | $24.14 | Available to order | 1 |
| 07 | 30006-102016810 BOLT | BOLT M10×1.25×16 | 6 | $3.44 | Available to order | 6 |
| 08 | 9060-037450 MOUNTING SEAT, STEERING MOTOR | MOUNTING SEAT, STEERING MOTOR | 1 | $45.99 | Available to order | 1 |
| 09 | 7000-030030-10000 BRACKET, FUSE BOX | BRACKET, FUSE BOX | 1 | $9.19 | Out of Stock | Notify Me |
| 10 | 30102-080050870 INNER HEX SCREW M8x50 | INNER HEX SCREW M8x50 | 6 | $2.29 | Available to order | 6 |
| 11 | 7000-100004 UPPER BLOCK | UPPER BLOCK | 1 | $4.59 | Obsolete | View Details |
| 12 | 7000-100110 ARM REST | ARM REST | 1 | $114.99 | Available to order | 1 |
| 13 | 7000-100005 UPPER BLOCK | UPPER BLOCK | 1 | $8.04 | Obsolete | View Details |
| 14 | 9060-038125 HEAT INSULATOR, FUEL TANK | HEAT INSULATOR, FUEL TANK | 1 | $28.74 | Obsolete | View Details |
| 15 | 7000-031701 REAR PLATE,FUEL TANK | REAR PLATE,FUEL TANK | 1 | $22.99 | Available to order | 1 |
| 16 | 7000-031801-00001 ENGINE BASE PLATE | ENGINE BASE PLATE | 1 | $34.49 | Available to order | 1 |
| 17 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 18 | 7000-031100-20000 MOUNT BRACKET, SEAT | MOUNT BRACKET, SEAT | 1 | $131.99 | Out of Stock | Notify Me |
| 19 | 30006-080040810 BOLT | BOLT M8×40 | 6 | $2.29 | Available to order | 6 |
| 20 | 9060-037663 LIMIT ROD, SEAT | LIMIT ROD, SEAT | 1 | $18.39 | Obsolete | View Details |
| 21 | 5BY2-032100 CARGO BOX MOUNT SEAT | CARGO BOX MOUNT SEAT | 1 | $186.99 | Out of Stock | Notify Me |
| 22 | 7000-020020 HEAT INSULTOR | HEAT INSULTOR | 1 | $80.49 | Obsolete | View Details |
| 23 | 7000-031810 SEAT,TRAILER POWER | SEAT,TRAILER POWER | 1 | $13.79 | Available to order | 1 |
| 24 | 7000-031802 BRACKET, ENGINE | BRACKET, ENGINE | 1 | $8.04 | Available to order | 1 |
| 25 | 9010-120008 SPONGE PAD | SPONGE PAD | 6 | $3.44 | Available to order | 6 |
| 26 | 7000-031820 PLATE, BATTERY | PLATE, BATTERY | 1 | $34.49 | Available to order | 1 |
| 27 | 9010-030005 RUBBER WASHER | RUBBER WASHER | 6 | $1.25 | Available to order | 6 |
| 28 | 9030-220004 HOOK,BAND | HOOK,BAND | 1 | $5.74 | Available to order | 1 |
| 29 | 7000-031400-00001 REAR BUMPER | REAR BUMPER | 1 | $252.99 | Out of Stock | Notify Me |
| 30 | 9060-038129 SPONGE, HEAT ISOLATOR | SPONGE, HEAT ISOLATOR | 6 | $3.44 | Available to order | 6 |
| 31 | 5BR0-031301 HEAT INSULATOR, CARGO BOX | HEAT INSULATOR, CARGO BOX | 1 | $91.99 | Out of Stock | Notify Me |
| 32 | 8030-040800-00001 NUT CLIP M6 | NUT CLIP M6 | 6 | $2.29 | Available to order | 6 |
| 33 | 9060-040024-10000 SKID PLATE. (TRUCK FREIGHT) | SKID PLATE. (TRUCK FREIGHT) | 1 | $384.99 | Out of Stock | Notify Me |
| 34 | 9060-040028 CUPPED WASHER | CUPPED WASHER | 1 | $3.44 | Available to order | 1 |
| 35 | 30303-060112 LOCK WASHER | LOCK WASHER 6 | 6 | $1.25 | Available to order | 6 |
| 36 | 6NQ0-030050 ECU MOUNT | ECU MOUNT | 1 | $11.49 | Obsolete | View Details |
| 37 | 5BY2-032200 MUFFLER HOLDER | MUFFLER HOLDER | 1 | $34.49 | Available to order | 1 |
| 38 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6×16 | 6 | $1.25 | Available to order | 6 |
| 39 | 9060-038122 RECTANGLE PIUG | RECTANGLE PIUG | 6 | $3.44 | Available to order | 6 |
| 40 | 5BWB-030110 PARKING CABLE BRACKET | PARKING CABLE BRACKET | 1 | $8.04 | Obsolete | View Details |
| 41 | 0010-023008-0010 BOLT M6x18 | BOLT M6x18 | 6 | — | Obsolete | View Details |
| 42 | 5BY2-030001 BRACKET | BRACKET | 1 | $28.74 | Obsolete | View Details |
| 43 | 7000-030020 LINK BRACKET, RELAY BOX | LINK BRACKET, RELAY BOX | 1 | $11.49 | Obsolete | View Details |
| 44 | 30102-102035810 SCREW M10X35 | SCREW M10X35 | 6 | $2.29 | Available to order | 6 |
| 45 | 7000-031803 MOUNTING BUSH,REAR AXLE | MOUNTING BUSH,REAR AXLE | 1 | $4.59 | Available to order | 1 |
| 46 | 7000-030010-10000 MOUNT FRAME, REAR GEAR CASE | MOUNT FRAME, REAR GEAR CASE | 1 | $13.79 | Available to order | 1 |
