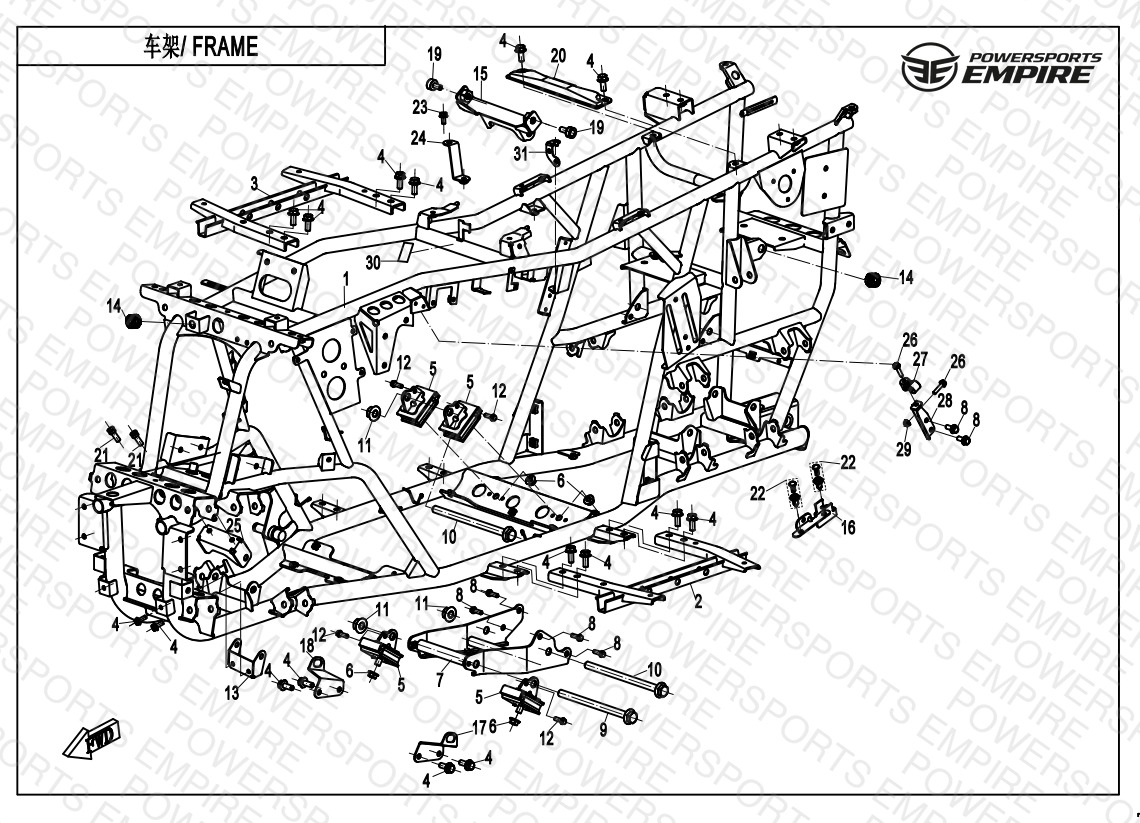

F03-B-V5 — FRAME(NEW)
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9GQ0-031000-A0000 FRAME | FRAME | 1 | $1649.99 | Obsolete | View Details |
| 02 | 9GQ0-039100 RUNNING BOARD BRACE, LH | RUNNING BOARD BRACE, LH | 1 | $45.99 | Out of Stock | Notify Me |
| 03 | 9GQ0-039200 FOOTREST BOARD,RH | FOOTREST BOARD,RH | 1 | $186.99 | Available to order | 1 |
| 04 | 30006-080020810 BOLT M8x20 | BOLT M8x20 M8x20 | 6 | $1.25 | Available to order | 6 |
| 05 | 401B-000200-10000 ENGINE MOUNT | ENGINE MOUNT | 1 | $45.99 | Available to order | 1 |
| 06 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 07 | 9CR6-001100-20000 FRONT BRACKET, ENGINE | FRONT BRACKET, ENGINE | 1 | $40.24 | Available to order | 1 |
| 08 | 30006-103020810 BOLT | BOLT M10x20 | 6 | $2.29 | Available to order | 6 |
| 09 | 30006-122170810 BOLT | BOLT M12x1.25x170 | 6 | $11.49 | Available to order | 6 |
| 10 | 30006-122180810 BOLT | BOLT M12x1.25x180 | 6 | $12.64 | Available to order | 6 |
| 11 | 30204-122810 NUT M12x1.25 | NUT M12x1.25 M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 12 | 30102-060012810 SCREW M6X12 | SCREW M6X12 | 6 | $1.25 | Available to order | 6 |
| 13 | 9GQ0-030110 LOWER BRACKET, FRONT AXLE | LOWER BRACKET, FRONT AXLE | 1 | $6.89 | Available to order | 1 |
| 14 | 5020-031001 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
| 15 | 9GQ0-030070-10000 UPPER LINK SEAT,REAR AXLE | UPPER LINK SEAT,REAR AXLE | 1 | $11.49 | Available to order | 1 |
| 16 | 9GQA-030020 BRACKET, ECU | BRACKET, ECU | 1 | $5.74 | Available to order | 1 |
| 17 | 9GQ0-030004 BRACKET,LH INNER FENDER | BRACKET,LH INNER FENDER | 1 | $5.74 | Available to order | 1 |
| 18 | 9GQ0-030005 BRACKET,RH INNER FENDER | BRACKET,RH INNER FENDER | 1 | $5.74 | Available to order | 1 |
| 19 | 30102-102020810 SCREW M10x20 | SCREW M10x20 M10x1.25x20 | 6 | $3.44 | Available to order | 6 |
| 20 | 9GQ0-030010-10000 FIXING BRACKET,SEAT | FIXING BRACKET,SEAT | 1 | $9.19 | Available to order | 1 |
| 21 | 30102-080020810 SCREW M8x20 | SCREW M8x20 M8x20 | 6 | $1.25 | Available to order | 6 |
| 22 | 9060-040310 PUSH RIVET | PUSH RIVET | 6 | $1.25 | Available to order | 6 |
| 23 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 24 | 9GQV-030080-1400 BRACKET, AIR FILTER | BRACKET, AIR FILTER | 1 | $4.59 | Available to order | 1 |
| 25 | 9GQ0-030050-10000 UPPER CONNECTING PLATE | UPPER CONNECTING PLATE | 1 | $20.69 | Available to order | 1 |
| 26 | 30006-080035810 BOLT M8x35 | BOLT M8x35 M8x35 | 6 | $1.25 | Available to order | 6 |
| 27 | 7020-000160 UPPER MOUNT,ENGINE | UPPER MOUNT,ENGINE | 1 | $26.44 | Available to order | 1 |
| 28 | 9DR7-030120 CYLINDER HEAD MOUNT LINK | CYLINDER HEAD MOUNT LINK | 1 | $20.69 | Available to order | 1 |
| 29 | 30204-080810 LOCK NUT | LOCK NUT M8 | 6 | $1.25 | Available to order | 6 |
| 30 | 6NQ0-190005 PAD | PAD | 1 | $3.44 | Available to order | 1 |
| 31 | 9GQ0-030131 LOCK PLATE, WIRE | LOCK PLATE, WIRE | 1 | $3.09 | Available to order | 1 |
