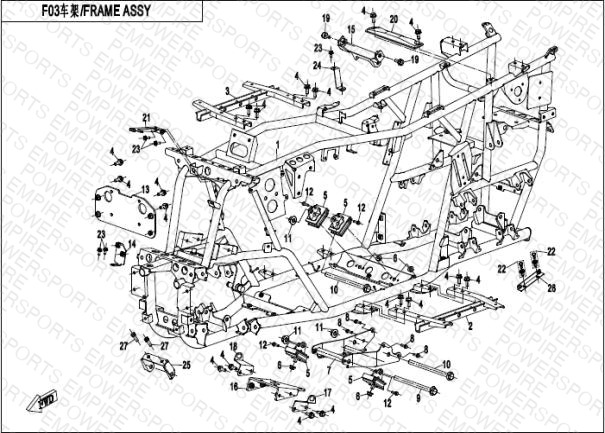

F03 — FRAME ASSY
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9GQ0-031000 FRAME ASSY. | FRAME ASSY. | 1 | $1759.99 | Obsolete | View Details |
| 02 | 9GQ0-039100 RUNNING BOARD BRACE, LH | RUNNING BOARD BRACE, LH | 1 | $45.99 | Out of Stock | Notify Me |
| 03 | 9GQ0-039200 FOOTREST BOARD,RH | FOOTREST BOARD,RH | 1 | $186.99 | Available to order | 1 |
| 04 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 05 | 401B-000200-10000 ENGINE MOUNT | ENGINE MOUNT | 1 | $45.99 | Available to order | 1 |
| 06 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 07 | 9CR6-001100-20000 FRONT BRACKET, ENGINE | FRONT BRACKET, ENGINE | 1 | $40.24 | Available to order | 1 |
| 08 | 30006-102020810 BOLT M10x1.25x20 | BOLT M10x1.25x20 | 6 | $2.29 | Out of Stock | Notify Me |
| 09 | 30006-122170810 BOLT | BOLT | 6 | $11.49 | Available to order | 6 |
| 10 | 30006-122180810 BOLT | BOLT | 6 | $12.64 | Available to order | 6 |
| 11 | 30204-122810 NUT M12x1.25 | NUT M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 12 | 30102-060012810 SCREW M6X12 | SCREW M6X12 | 6 | $1.25 | Available to order | 6 |
| 13 | 9GQ0-030090 INSTALLING BRACKET,WINCH | INSTALLING BRACKET,WINCH | 1 | $45.99 | Available to order | 1 |
| 14 | 9GQ0-030030 BRACKET,FUEL HOSE SEAT | BRACKET,FUEL HOSE SEAT | 1 | $2.29 | Available to order | 1 |
| 15 | 9GQ0-030070 UPPER MOUNTING SEAT,REAR AXLE | UPPER MOUNTING SEAT,REAR AXLE | 1 | $11.49 | Obsolete | View Details |
| 16 | 9GQ0-030040 EPS MOUNTING PLATE | EPS MOUNTING PLATE | 1 | $28.74 | Obsolete | View Details |
| 17 | 9GQ0-030004 BRACKET,LH INNER FENDER | BRACKET,LH INNER FENDER | 1 | $5.74 | Available to order | 1 |
| 18 | 9GQ0-030005 BRACKET,RH INNER FENDER | BRACKET,RH INNER FENDER | 1 | $5.74 | Available to order | 1 |
| 19 | 30102-102020810 SCREW M10x20 | SCREW M10x20 | 6 | $3.44 | Available to order | 6 |
| 20 | 9GQ0-030010 FIXING BRACKET,SEAT | FIXING BRACKET,SEAT | 1 | $6.89 | Obsolete | View Details |
| 21 | 9GQ0-030020 BRACKET,WINCH RELAY | BRACKET,WINCH RELAY | 1 | $8.04 | Available to order | 1 |
| 22 | 9060-040310 PUSH RIVET | PUSH RIVET | 6 | $1.25 | Available to order | 6 |
| 23 | 30006-060010810 BOLT M6X10 | BOLT M6X10 | 6 | $1.25 | Available to order | 6 |
| 24 | 9GQV-030080-1400 BRACKET, AIR FILTER | BRACKET, AIR FILTER | 1 | $4.59 | Available to order | 1 |
| 25 | 9GQ0-030050-10000 UPPER CONNECTING PLATE | UPPER CONNECTING PLATE | 1 | $20.69 | Available to order | 1 |
| 26 | 9GQ0-030060 MOUNTING PLATE,ECU | MOUNTING PLATE,ECU | 1 | $3.44 | Out of Stock | Notify Me |
| 27 | 30102-080020140 SCREW | SCREW | 6 | $1.14 | Obsolete | View Details |
