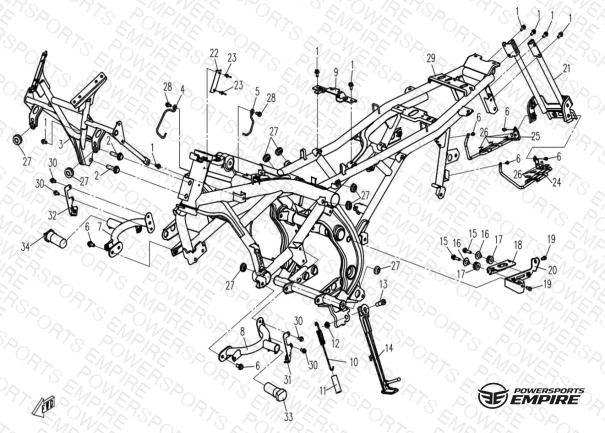

F03 — FRAME ASSY
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 02 | 30006-102040810 BOLT M10X1.25X40 | BOLT M10X1.25X40 | 6 | — | Obsolete | View Details |
| 03 | A010-030400 BRACKET,FRONT | BRACKET,FRONT | 1 | $118.58 | Obsolete | View Details |
| 04 | A000-030002 RIGHT HOOK, MAIN CABLE | RIGHT HOOK, MAIN CABLE | 1 | $3.44 | Out of Stock | Notify Me |
| 05 | A000-030001 LEFT HOOK, MAIN CABLE | LEFT HOOK, MAIN CABLE | 1 | $4.59 | Out of Stock | Notify Me |
| 06 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 07 | A010-030300 RH BRACKET, FRONT PANEL | RH BRACKET, FRONT PANEL | 1 | $34.49 | Obsolete | View Details |
| 08 | A010-030200 LH BRACKET, FRONT PANEL | LH BRACKET, FRONT PANEL | 1 | $45.99 | Obsolete | View Details |
| 09 | A010-030150 BRACKET, FUEL TANK | BRACKET, FUEL TANK | 1 | $6.89 | Obsolete | View Details |
| 10 | A000-030210 SPRING, SIDE STAND | SPRING, SIDE STAND | 1 | $4.59 | Available to order | 1 |
| 11 | A000-030004 SPRING COLLAR, SIDE STAND | SPRING COLLAR, SIDE STAND | 1 | $3.44 | Available to order | 1 |
| 12 | 30208-102040 NUT M10x1.25 | NUT M10x1.25 | 6 | — | Obsolete | View Details |
| 13 | A000-030006 BOLT, SIDE STAND | BOLT, SIDE STAND | 1 | $3.44 | Available to order | 1 |
| 14 | A010-030190 SIDE STAND COMP. | SIDE STAND COMP. | 1 | $44.52 | Obsolete | View Details |
| 15 | 30006-060025810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 16 | 5020-031002 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
| 17 | 5020-031001 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
| 18 | A000-030130 BRACKET, REGULATOR | BRACKET, REGULATOR | 1 | $6.89 | Available to order | 1 |
| 19 | 30102-060012810 SCREW M6X12 | SCREW M6X12 | 6 | $1.25 | Available to order | 6 |
| 20 | A000-030120 BRACKET, REGULATOR | BRACKET, REGULATOR | 1 | $11.49 | Available to order | 1 |
| 21 | A010-030160 BRACKET, REAR FENDER | BRACKET, REAR FENDER | 1 | $45.99 | Obsolete | View Details |
| 22 | A010-190011 NAME PLATE | NAME PLATE | 1 | $4.59 | Obsolete | View Details |
| 23 | 30902-0420820 SELF-PLUGGING RIVET 4.2X 8 | SELF-PLUGGING RIVET 4.2X 8 | 6 | — | Obsolete | View Details |
| 24 | A010-220700 SUPPORT, LH SIDE BOX | SUPPORT, LH SIDE BOX | 1 | $57.49 | Obsolete | View Details |
| 25 | A010-220800 SUPPORT, RH SIDE BOX | SUPPORT, RH SIDE BOX | 1 | $57.49 | Obsolete | View Details |
| 26 | 9010-120008 SPONGE PAD | SPONGE PAD | 6 | $3.44 | Available to order | 6 |
| 27 | A000-040302 RUBBER DAMPER | RUBBER DAMPER | 1 | $3.44 | Available to order | 1 |
| 28 | 6KM#-040702-8000 INNER HEX SCREW M6x12 | INNER HEX SCREW M6x12 | 6 | $1.25 | Available to order | 6 |
| 29 | A010-031000-1BB0 FRAME ASSY. | FRAME ASSY. | 1 | — | Obsolete | View Details |
| 30 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 31 | A010-044110-2000 WIND SHIELD SUPPORT COMP.LH | WIND SHIELD SUPPORT COMP.LH | 1 | $11.49 | Obsolete | View Details |
| 32 | A010-044210-2000 WIND SHIELD SUPPORT COMP.RH | WIND SHIELD SUPPORT COMP.RH | 1 | $11.49 | Obsolete | View Details |
| 33 | A010-200001 PROTECTIVE RUBBER,LH | PROTECTIVE RUBBER,LH | 1 | $4.59 | Obsolete | View Details |
| 34 | A010-200002 PROTECTIVE RUBBER,RH | PROTECTIVE RUBBER,RH | 1 | $4.59 | Obsolete | View Details |
