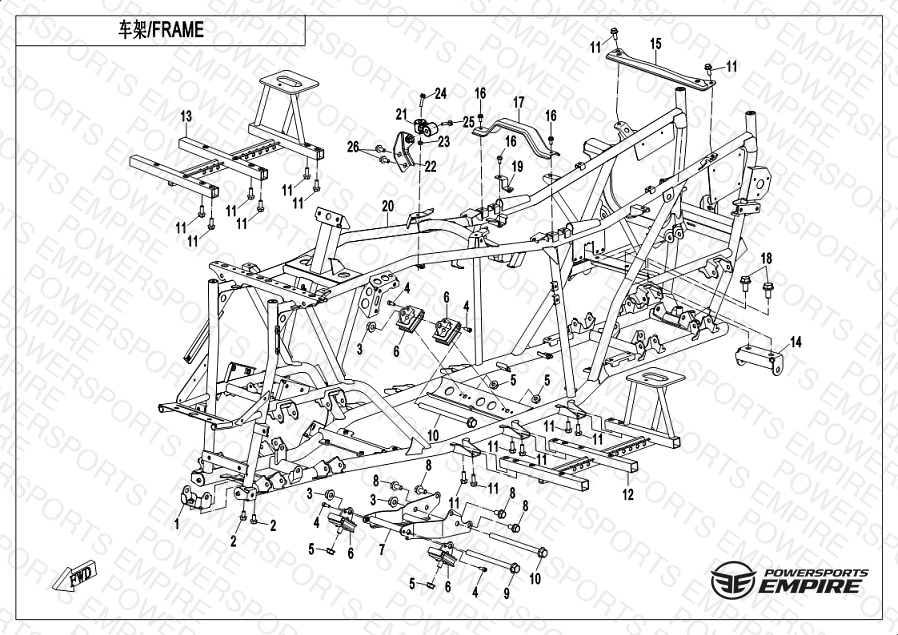

F03 — FRAME
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9010-037400 BRACKET,FRONT AXLE | BRACKET,FRONT AXLE | 1 | $11.49 | Available to order | 1 |
| 02 | 30006-080014810 BOLT M8X14 | BOLT M8X14 | 6 | $1.25 | Available to order | 6 |
| 03 | 30204-122810 NUT M12x1.25 | NUT M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 04 | 30102-060016810 SCREW | SCREW | 6 | $1.25 | Available to order | 6 |
| 05 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 06 | 401B-000200-10000 ENGINE MOUNT | ENGINE MOUNT | 1 | $45.99 | Available to order | 1 |
| 07 | 9CR6-001100-20000 FRONT BRACKET, ENGINE | FRONT BRACKET, ENGINE | 1 | $40.24 | Available to order | 1 |
| 08 | 30006-102020810 BOLT M10x1.25x20 | BOLT M10x1.25x20 | 6 | $2.29 | Out of Stock | Notify Me |
| 09 | 30006-122170810 BOLT | BOLT | 6 | $11.49 | Available to order | 6 |
| 10 | 30006-122180810 BOLT | BOLT | 6 | $12.64 | Available to order | 6 |
| 11 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 12 | 9CR6-039100-10000 BRACKET, LEFT FOOTBOARD | BRACKET, LEFT FOOTBOARD | 1 | $71.76 | Obsolete | View Details |
| 13 | 9CR6-039200-10000 BRACKET,RIGHT FOOTBOARD | BRACKET,RIGHT FOOTBOARD | 1 | $80.49 | Obsolete | View Details |
| 14 | 9CR6-030120 UPPER BRACKET,REAR AXLE | UPPER BRACKET,REAR AXLE | 1 | $5.74 | Obsolete | View Details |
| 15 | 9010-030070 SEAT BRACKET COMP. | SEAT BRACKET COMP. | 1 | $16.09 | Available to order | 1 |
| 16 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 17 | 901A-030007 SEAT BRIDGE BRACKET | SEAT BRIDGE BRACKET | 1 | $17.24 | Out of Stock | Notify Me |
| 18 | 30006-102016810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 19 | 9DR8-035070 SUPPORT, AIR FILTER | SUPPORT, AIR FILTER | 1 | $9.19 | Obsolete | View Details |
| 20 | 9CR6-031000-90000 FRAME(SPECIAL ORDER) | FRAME(SPECIAL ORDER) | 1 | $1759.99 | Obsolete | View Details |
| 21 | 7020-000160 UPPER MOUNT,ENGINE | UPPER MOUNT,ENGINE | 1 | $26.44 | Available to order | 1 |
| 22 | 9CR6-030140 UPPER BRACKET, ENGINE | UPPER BRACKET, ENGINE | 1 | $6.89 | Obsolete | View Details |
| 23 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 24 | 30006-080040810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 25 | 30006-080035810 BOLT M8x35 | BOLT M8x35 | 6 | $1.25 | Available to order | 6 |
| 26 | 30006-103020810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
