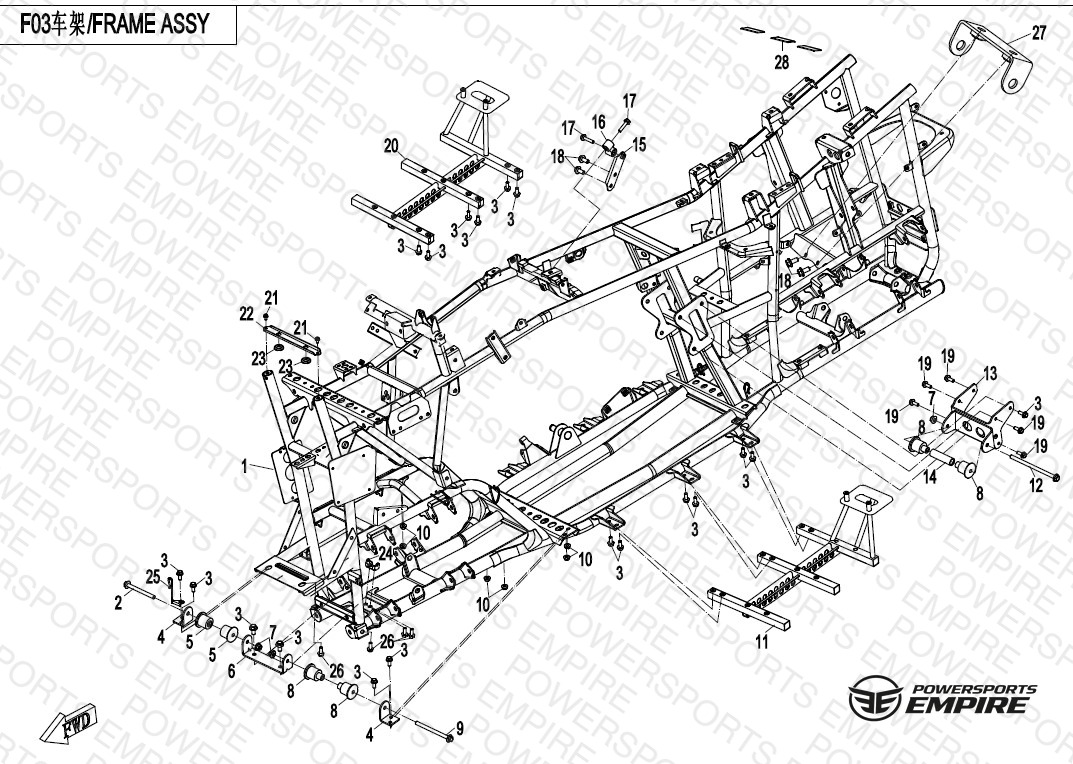

F03 — FRAME ASSY
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 7020-031000-F0000 FRAME ASSY. | FRAME ASSY. | 1 | $1099.99 | Obsolete | View Details |
| 02 | 30006-102100840 BOLT M10×1.25×100 | BOLT M10×1.25×100 | 6 | $4.59 | Obsolete | View Details |
| 03 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 04 | 7020-000101 MOUNT 1, ENGINE | MOUNT 1, ENGINE | 1 | $6.89 | Obsolete | View Details |
| 05 | 7020-000120 RIGHT DAMPER,ENGINE | RIGHT DAMPER,ENGINE | 1 | $12.64 | Available to order | 1 |
| 06 | 7020-000102 MOUNT 2, ENGINE | MOUNT 2, ENGINE | 1 | $19.54 | Obsolete | View Details |
| 07 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 08 | 7020-000110 LEFT DAMPER,ENGINE | LEFT DAMPER,ENGINE | 1 | $12.64 | Available to order | 1 |
| 09 | 30006-102130810 BOLT M10X1.25X130 | BOLT M10X1.25X130 | 6 | $8.04 | Available to order | 6 |
| 10 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 11 | 7020-037000 BRACKET, LEFT FOOTBOARD | BRACKET, LEFT FOOTBOARD | 1 | $110.88 | Obsolete | View Details |
| 12 | 30001-102170140 BOLT M10x1.25x170 | BOLT M10x1.25x170 | 6 | — | Obsolete | View Details |
| 13 | 7020-000130 REAR BRACKET, ENGINE | REAR BRACKET, ENGINE | 1 | $45.99 | Obsolete | View Details |
| 14 | 7020-000171 CENTER COLLAR | CENTER COLLAR | 1 | $9.19 | Obsolete | View Details |
| 15 | 7020-000150 UPPER MOUNT PLATE, ENGINE | UPPER MOUNT PLATE, ENGINE | 1 | $5.74 | Available to order | 1 |
| 16 | 7020-000160 UPPER MOUNT,ENGINE | UPPER MOUNT,ENGINE | 1 | $26.44 | Available to order | 1 |
| 17 | 30006-080035810 BOLT M8x35 | BOLT M8x35 | 6 | $1.25 | Available to order | 6 |
| 18 | 30006-103020810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 19 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 20 | 7020-037100 BRACKET, RIGHT FOOTBOARD | BRACKET, RIGHT FOOTBOARD | 1 | $114.99 | Obsolete | View Details |
| 21 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 22 | 7020-038011 PLATE, BATTERY | PLATE, BATTERY | 1 | $9.19 | Obsolete | View Details |
| 23 | 9010-030005 RUBBER WASHER | RUBBER WASHER | 6 | $1.25 | Available to order | 6 |
| 24 | 9010-037400 BRACKET,FRONT AXLE | BRACKET,FRONT AXLE | 1 | $11.49 | Available to order | 1 |
| 25 | 7020-000190 FIXING HOOK, CABLE | FIXING HOOK, CABLE | 1 | $2.29 | Available to order | 1 |
| 26 | 30006-080014810 BOLT M8X14 | BOLT M8X14 | 6 | $1.25 | Available to order | 6 |
| 27 | 7020-036810 MOUNT BRACKET, REAR AXLE | MOUNT BRACKET, REAR AXLE | 1 | $11.49 | Obsolete | View Details |
| 28 | 9060-038129 SPONGE, HEAT ISOLATOR | SPONGE, HEAT ISOLATOR | 6 | $3.44 | Available to order | 6 |
