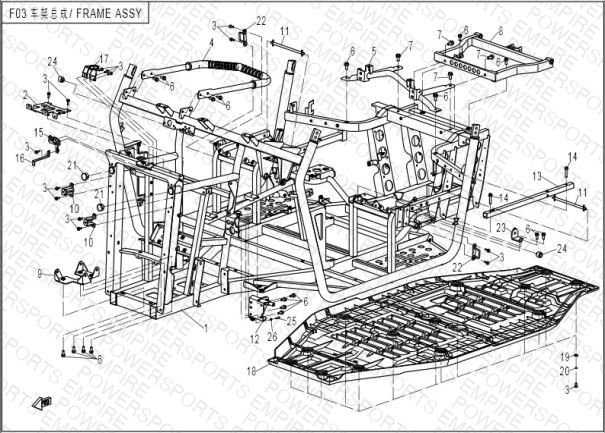

F03 — FRAME ASSY
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 7030-030100 FRAME ASSY. | FRAME ASSY. | 1 | $1979.99 | Obsolete | View Details |
| 02 | 7030-037110 UPPER BRACKET,RADIATOR | UPPER BRACKET,RADIATOR | 1 | $34.49 | Available to order | 1 |
| 03 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 04 | 7030-037210-10000 FRONT ARMREST | FRONT ARMREST | 1 | $57.49 | Available to order | 1 |
| 05 | 7030-037400-20000 BRACKET, SEAT BELT | BRACKET, SEAT BELT | 1 | $97.18 | Out of Stock | Notify Me |
| 06 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 07 | 30006-102025810 BOLT M10X1.25X25 | BOLT M10X1.25X25 | 6 | $2.29 | Available to order | 6 |
| 08 | 7030-037600 BRACKET,CARGO BOX | BRACKET,CARGO BOX | 1 | $157.85 | Obsolete | View Details |
| 09 | 7030-038110-10000 BRACKET, FRONT AXLE | BRACKET, FRONT AXLE | 1 | $26.44 | Available to order | 1 |
| 10 | 7030-038210 BRACKET,FRONT TOP COVER | BRACKET,FRONT TOP COVER | 1 | $34.49 | Available to order | 1 |
| 11 | 7030-037810 ROD,SEAT LOCK | ROD,SEAT LOCK | 1 | $12.64 | Out of Stock | Notify Me |
| 12 | 7030-039110 BRACKET,FOOTREST BOARD | BRACKET,FOOTREST BOARD | 1 | $57.49 | Available to order | 1 |
| 13 | 7030-037710 INNER BAR,LH SEAT | INNER BAR,LH SEAT | 1 | $28.74 | Out of Stock | Notify Me |
| 14 | 30006-080040840 BOLT M8×40 | BOLT M8×40 | 6 | $2.29 | Obsolete | View Details |
| 15 | 7030-010200 LOCK,FRONT COVER | LOCK,FRONT COVER | 1 | $45.99 | Available to order | 1 |
| 16 | 7030-010201 LEVER,FRONT COVER LOCK | LEVER,FRONT COVER LOCK | 1 | $17.24 | Out of Stock | Notify Me |
| 17 | 7030-040192 SUPPORT PLATE SERING | SUPPORT PLATE SERING | 1 | $4.59 | Available to order | 1 |
| 18 | 7030-040711 SKID PLATE. (TRUCK FREIGHT) | SKID PLATE. (TRUCK FREIGHT) | 1 | $274.99 | Obsolete | View Details |
| 19 | 9060-040028 CUPPED WASHER | CUPPED WASHER | 1 | $3.44 | Available to order | 1 |
| 20 | 30303-060112 LOCK WASHER | LOCK WASHER | 6 | $1.25 | Available to order | 6 |
| 21 | 9060-038123 CIRCULAR PIUG | CIRCULAR PIUG | 6 | $2.29 | Obsolete | View Details |
| 22 | 7030-370700 HOOK LOCK COMP. | HOOK LOCK COMP. | 1 | $12.64 | Available to order | 1 |
| 23 | 7030-038711 REAR JOINT,ENGINE | REAR JOINT,ENGINE | 1 | $6.89 | Available to order | 1 |
| 24 | 9030-370901 CUSHION RUBBER | CUSHION RUBBER | 1 | $3.44 | Obsolete | View Details |
| 25 | 30006-060025810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 26 | 30200-060810 NUT | NUT | 6 | $1.25 | Available to order | 6 |
