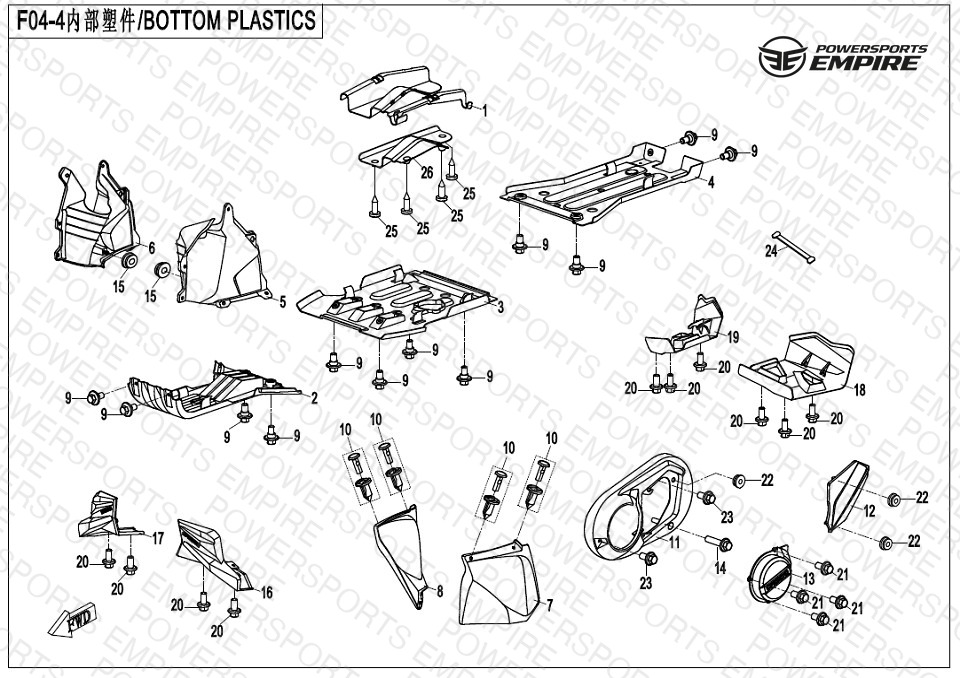

F04-4 — BOTTOM PLASTICS
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9GQ0-044011 LOWER PANEL,FUEL TANK | LOWER PANEL,FUEL TANK | 1 | $68.99 | Obsolete | View Details |
| 02 | 9GQ0-044021 FRONT SKID PLATE,ENGINE | FRONT SKID PLATE,ENGINE | 1 | $80.49 | Available to order | 1 |
| 03 | 9GQV-044022-1000 MIDDLE PANEL ENGINE | MIDDLE PANEL ENGINE | 1 | $42.54 | Out of Stock | Notify Me |
| 04 | 9GQV-044023-1000 REAR PANEL, ENGINE | REAR PANEL, ENGINE | 1 | $36.79 | Available to order | 1 |
| 05 | 9GQ0-044031 FRONT UPPER INNER FENDER,LH | FRONT UPPER INNER FENDER,LH | 1 | $19.54 | Available to order | 1 |
| 06 | 9GQ0-044032 FRONT UPPER INNER FENDER,RH | FRONT UPPER INNER FENDER,RH | 1 | $19.54 | Available to order | 1 |
| 07 | 9GQ0-044033-10000 FRONT LOWER FENDER PANEL, LH | FRONT LOWER FENDER PANEL, LH | 1 | $45.99 | Available to order | 1 |
| 08 | 9GQ0-044034-10000 FRONT LOWER FENDER PANEL, RH | FRONT LOWER FENDER PANEL, RH | 1 | $45.99 | Available to order | 1 |
| 09 | 8010-000004 BOLT M6x14 | BOLT M6x14 | 6 | $1.25 | Available to order | 6 |
| 10 | 9060-040310 PUSH RIVET | PUSH RIVET | 6 | $1.25 | Available to order | 6 |
| 11 | 9CR6-044051-10000 LEFT COVER, ENGINE | LEFT COVER, ENGINE | 1 | $45.99 | Available to order | 1 |
| 12 | 9CRV-044052-2400 CAP, OIL FILTER | CAP, OIL FILTER | 1 | $9.19 | Available to order | 1 |
| 13 | 9CR6-044053 DECO COVER, RECOIL STARTER | DECO COVER, RECOIL STARTER | 1 | $22.99 | Available to order | 1 |
| 14 | 30006-060050810 BOLT | BOLT | 6 | $1.25 | Available to order | 6 |
| 15 | 7020-040209 FIXING RUBBER BUSH | FIXING RUBBER BUSH | 1 | $1.25 | Available to order | 1 |
| 16 | 9GQ0-044041 FRONT PROTECTION PLATE,LH | FRONT PROTECTION PLATE,LH | 1 | $19.54 | Available to order | 1 |
| 17 | 9GQ0-044042 FRONT PROTECTION PLATE,RH | FRONT PROTECTION PLATE,RH | 1 | $19.54 | Available to order | 1 |
| 18 | 9GQ0-044043 REAR PROTECTION PLATE,LH | REAR PROTECTION PLATE,LH | 1 | $57.49 | Obsolete | View Details |
| 19 | 9GQ0-044044 REAR PROTECTION PLATE,RH | REAR PROTECTION PLATE,RH | 1 | $57.49 | Obsolete | View Details |
| 20 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 21 | 0010-021019-0010 BOLT M6x12 | BOLT M6x12 | 6 | $2.29 | Available to order | 6 |
| 22 | 0180-015003 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
| 23 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6×16 | 6 | $1.25 | Available to order | 6 |
| 24 | 9GQ0-040910 TIE BAND,BATTERY | TIE BAND,BATTERY | 1 | $11.49 | Available to order | 1 |
| 25 | 30110-421130010 SELF TAPPING SCREW | SELF TAPPING SCREW ST4.2×13 | 6 | $3.44 | Available to order | 6 |
| 26 | 9GQ0-044051 HEAT INSULATOR,FUEL TANK | HEAT INSULATOR,FUEL TANK | 1 | $45.99 | Obsolete | View Details |
