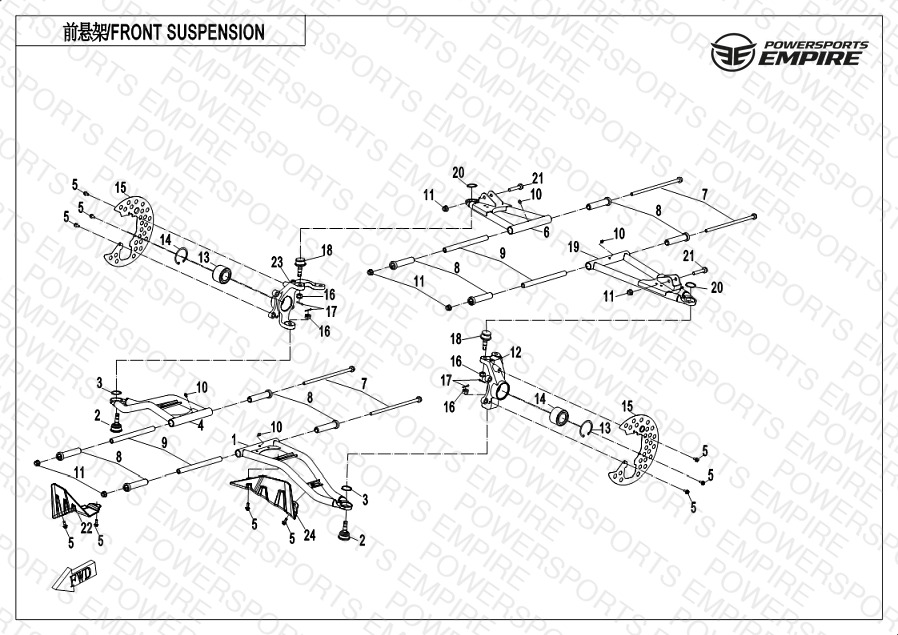

F05-1 — FRONT SUSPENSION
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5HYV-050210-1C00 FRONT LOWER A ARM, LH | FRONT LOWER A ARM, LH | 1 | — | Obsolete | View Details |
| 02 | 9060-050900-10000 BALL PIN COMP. | BALL PIN COMP. | 1 | $45.99 | Available to order | 1 |
| 03 | 30801-03405 RETAINER 34 | RETAINER 34 | 6 | $1.25 | Available to order | 6 |
| 04 | 5HY0-050410 FRONT LOWER A ARM, RH | FRONT LOWER A ARM, RH | 1 | $153.99 | Obsolete | View Details |
| 05 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 06 | 5HYV-050310-1C00 FRONT UPPER A ARM, RH | FRONT UPPER A ARM, RH | 1 | $153.99 | Available to order | 1 |
| 07 | 4060-060101 MOUNTING SHAFT, REAR ARM | MOUNTING SHAFT, REAR ARM | 1 | $12.64 | Available to order | 1 |
| 08 | 9060-050002 LONG BUSH,SUSPENSION ARM | LONG BUSH,SUSPENSION ARM | 2 | $19.54 | Available to order | 2 |
| 09 | 9060-060101-00002 MIDDLE SPACER, REAR UPPER SWING ARM | MIDDLE SPACER, REAR UPPER SWING ARM | 1 | $11.49 | Available to order | 1 |
| 10 | 3120100 GREASE ZERK | GREASE ZERK | 2 | $3.44 | Available to order | 2 |
| 11 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 12 | 5HY0-050701 STEERING KNUCKLE, LH | STEERING KNUCKLE, LH | 1 | $120.99 | Available to order | 1 |
| 13 | 30800-06005 CIRCLIP | CIRCLIP | 6 | $5.74 | Available to order | 6 |
| 14 | 30411-03080 HUB BEARING | HUB BEARING | 1 | — | Obsolete | View Details |
| 15 | 7020-050005 BRAKE DISC SHIELD | BRAKE DISC SHIELD | 1 | $19.54 | Available to order | 1 |
| 16 | 30219-122810 NUT M12x1.25 | NUT M12x1.25 | 6 | $2.29 | Available to order | 6 |
| 17 | 30903-0322210 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 18 | 9030-050600-10000 BALL PIN COMP. | BALL PIN COMP. | 1 | $57.49 | Available to order | 1 |
| 19 | 5HYV-050110-1C00 FRONT UPPER A ARM, LH | FRONT UPPER A ARM, LH | 1 | $153.99 | Obsolete | View Details |
| 20 | 30801-03205 RETAINER 32 | RETAINER 32 | 6 | $1.25 | Available to order | 6 |
| 21 | 30006-102055810 BOLT M10X1.25X55 | BOLT M10X1.25X55 | 6 | $2.29 | Available to order | 6 |
| 22 | 5HY#-050401-1000 FRONT RH SWING ARM GUARD | FRONT RH SWING ARM GUARD | 1 | $12.64 | Available to order | 1 |
| 23 | 5HY0-050801 STEERING KNUCKLE, RH | STEERING KNUCKLE, RH | 1 | $120.99 | Available to order | 1 |
| 24 | 5HY#-050201-1000 GUARD, FRONT LH SWING ARM | GUARD, FRONT LH SWING ARM | 1 | $12.64 | Available to order | 1 |
