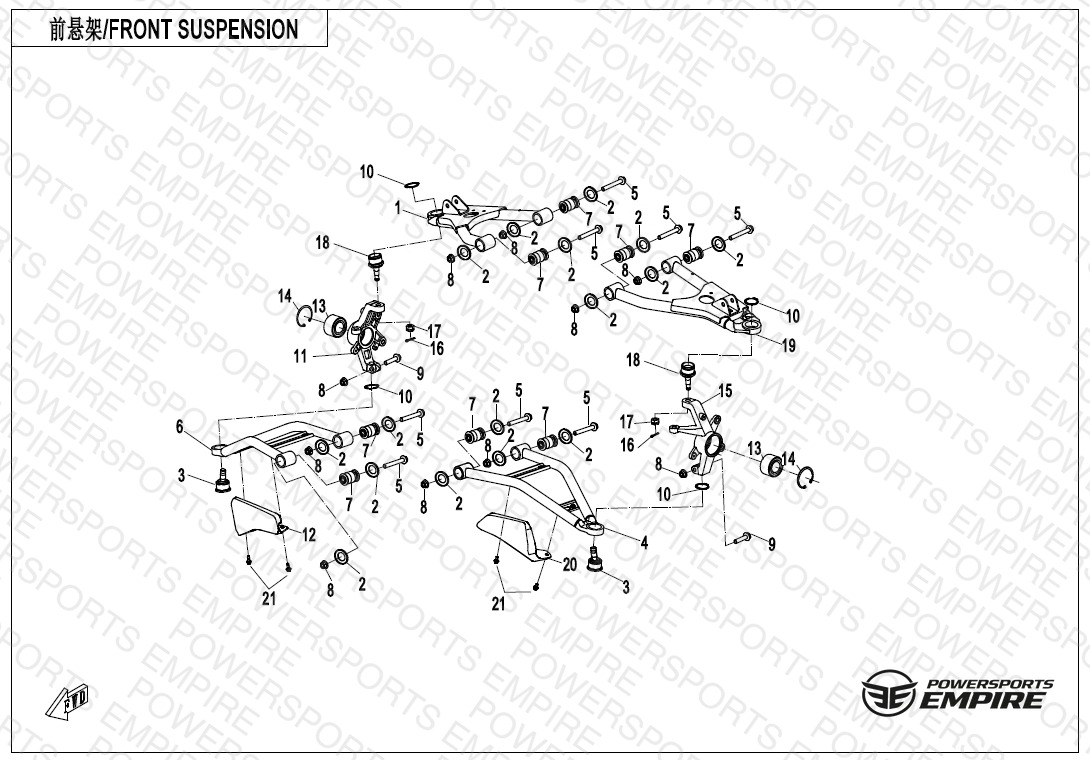

F05-1 — FRONT SUSPENSION
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9AWV-050210-2E01 FRONT RH UPPER SWING ARM | FRONT RH UPPER SWING ARM | 1 | — | Obsolete | View Details |
| 02 | 9DSV-050900-6K00 CAP, CUSHION SLEEVE | CAP, CUSHION SLEEVE | 1 | $2.29 | Available to order | 1 |
| 03 | 9010-050800-20000 BOTTOM BALL PIN | BOTTOM BALL PIN | 1 | $57.49 | Available to order | 1 |
| 04 | 9AWV-050310-2E01 FRONT LH LOWER SWING ARM | FRONT LH LOWER SWING ARM | 1 | — | Obsolete | View Details |
| 05 | 30006-102070810 BOLT | BOLT M10x1.25x70 | 6 | $2.29 | Available to order | 6 |
| 06 | 9AWV-050410-2E01-0BP00 FRONT RH LOWER SWING ARM | FRONT RH LOWER SWING ARM | 1 | $131.99 | Available to order | 1 |
| 07 | 9010-050500 BUFFERING COLLAR | BUFFERING COLLAR | 4 | $8.04 | Available to order | 4 |
| 08 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 09 | 30006-102040810 BOLT M10X1.25X40 | BOLT M10X1.25X40 M10x1.25x40 | 6 | — | Obsolete | View Details |
| 10 | 30801-03405 RETAINER 34 | RETAINER 34 34 | 6 | $1.25 | Available to order | 6 |
| 11 | 9AWA-050801 STEERING KNUCKLE, RH | STEERING KNUCKLE, RH | 1 | $114.99 | Available to order | 1 |
| 12 | 9AWA-044042 FRONT A ARM GUARD, RH | FRONT A ARM GUARD, RH | 1 | $10.34 | Available to order | 1 |
| 13 | 9GQ0-050710 BEARING, HUB | BEARING, HUB | 1 | $57.49 | Available to order | 1 |
| 14 | 30800-05505 RETAINER 55 | RETAINER 55 55 | 6 | $2.29 | Available to order | 6 |
| 15 | 9AWA-050701 STEERING KNUCKLE, LH | STEERING KNUCKLE, LH | 1 | $114.99 | Available to order | 1 |
| 16 | 30903-0201610 COTTER PIN 2.0x16 | COTTER PIN 2.0x16 2.0x16 | 6 | $2.29 | Available to order | 6 |
| 17 | 9010-100002 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $3.44 | Available to order | 6 |
| 18 | 9010-050700-1000 TOP BALL PIN | TOP BALL PIN CCVI | 1 | — | Obsolete | View Details |
| 19 | 9AWV-050110-2E01 FRONT LH UPPER SWING ARM | FRONT LH UPPER SWING ARM | 1 | — | Obsolete | View Details |
| 20 | 9AWA-044041 A ARM GUARD, LH | A ARM GUARD, LH | 1 | $10.34 | Available to order | 1 |
| 21 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
