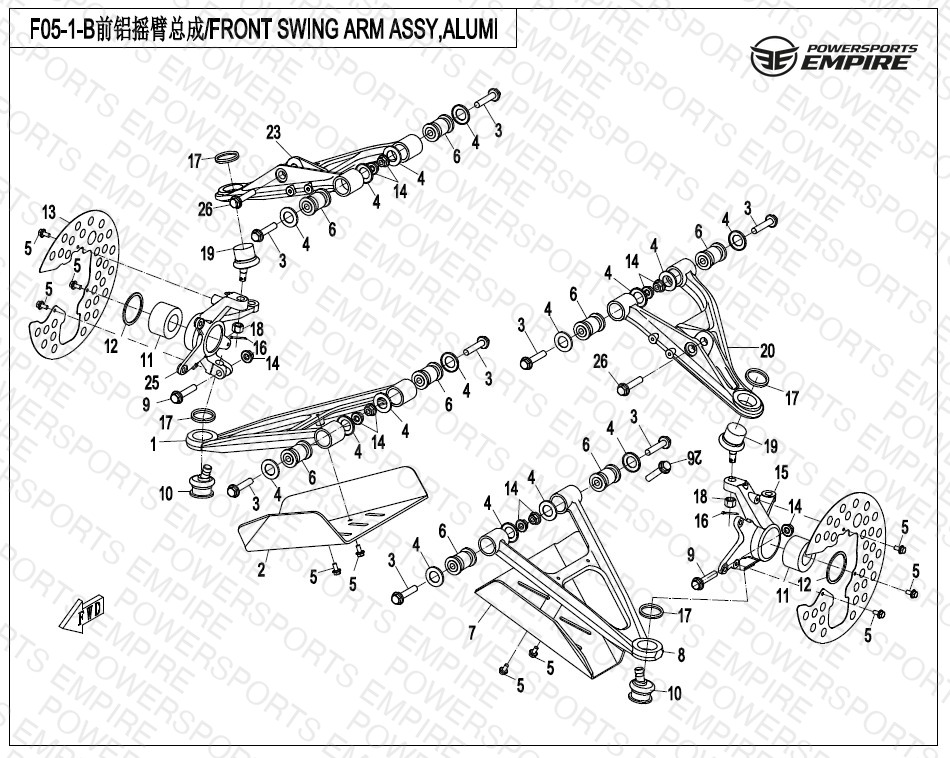

F05-1B — FRONT SWING ARM ASSY,ALUMI
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 7020-050101 FRONT LOWER ARM, RH | FRONT LOWER ARM, RH | 1 | $164.99 | Obsolete | View Details |
| 02 | 7020-050004 FRONT PROTECTOR, RH | FRONT PROTECTOR, RH | 1 | $114.99 | Obsolete | View Details |
| 03 | 30006-102070810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 04 | 9010-050003 CAP, BUFFERING COLLAR | CAP, BUFFERING COLLAR | 2 | $3.44 | Obsolete | View Details |
| 05 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 06 | 9010-050500 BUFFERING COLLAR | BUFFERING COLLAR | 4 | $8.04 | Available to order | 4 |
| 07 | 7020-050003 FRONT PROTECTOR, LH | FRONT PROTECTOR, LH | 1 | $114.99 | Obsolete | View Details |
| 08 | 7020-050301 FRONT LOWER ARM, LH | FRONT LOWER ARM, LH | 1 | $164.99 | Out of Stock | Notify Me |
| 09 | 30006-102050810 BOLT M10x1.25x50 | BOLT M10x1.25x50 | 6 | $2.29 | Available to order | 6 |
| 10 | 9010-050800-20000 BOTTOM BALL PIN | BOTTOM BALL PIN | 1 | $57.49 | Available to order | 1 |
| 11 | 9GQ0-050710 BEARING, HUB | BEARING, HUB | 1 | $57.49 | Available to order | 1 |
| 12 | 30800-05505 RETAINER 55 | RETAINER 55 | 6 | $2.29 | Available to order | 6 |
| 13 | 9010-030008-1000 GUARD, BRAKE DISC | GUARD, BRAKE DISC | 1 | $26.44 | Obsolete | View Details |
| 14 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 15 | 9010-050002 STEERING KNUCKLE, LH | STEERING KNUCKLE, LH | 1 | $91.99 | Obsolete | View Details |
| 16 | 30903-0252610 PIN 2.5x26 | PIN 2.5x26 | 6 | $1.25 | Available to order | 6 |
| 17 | 30801-03405 RETAINER 34 | RETAINER 34 | 6 | $1.25 | Available to order | 6 |
| 18 | 9010-100002 NUT M10x1.25 | NUT M10x1.25 | 6 | $3.44 | Available to order | 6 |
| 19 | 9010-050700-1000 TOP BALL PIN | TOP BALL PIN | 1 | — | Obsolete | View Details |
| 20 | 401B-050401 FRONT UPPER ARM, LH | FRONT UPPER ARM, LH | 1 | $164.99 | Obsolete | View Details |
| 23 | 401B-050201 FRONT UPPER ARM, RH | FRONT UPPER ARM, RH | 1 | $164.99 | Obsolete | View Details |
| 25 | 9010-050001 STEERING KNUCKLE (RH) | STEERING KNUCKLE (RH) | 1 | $114.99 | Obsolete | View Details |
