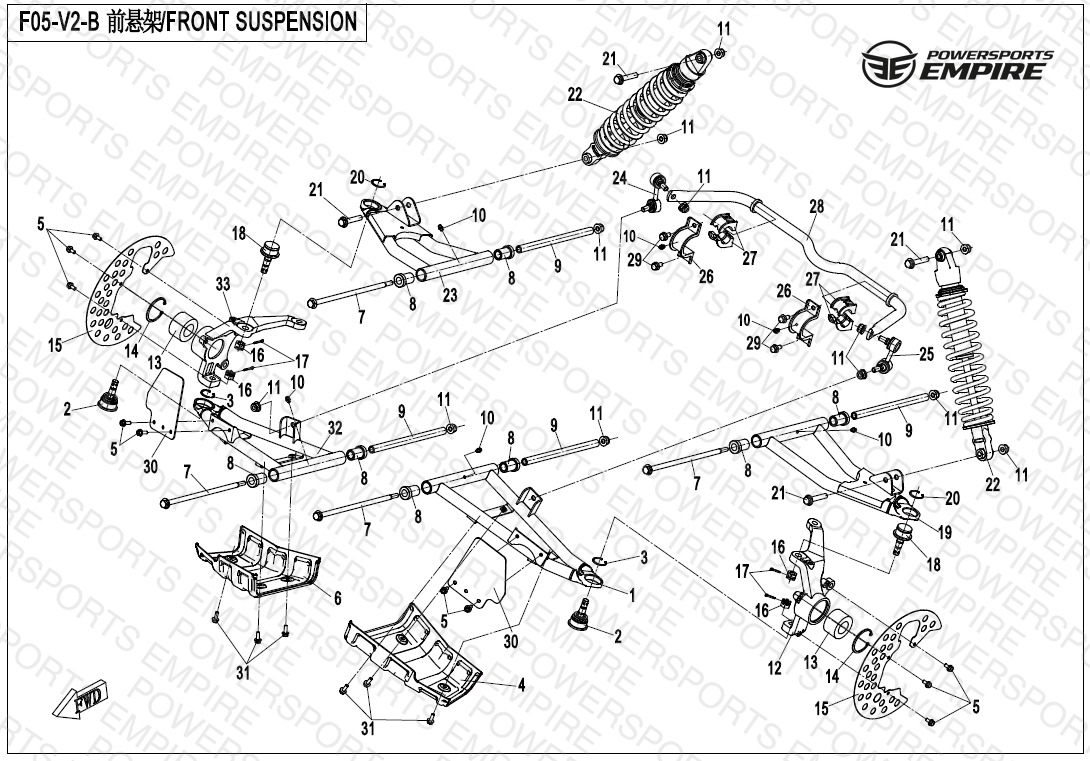

F05-V2-B — FRONT SUSPENSION
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 703V-050210-1500 FRONT LOWER SWING ARM ASSY, LH | FRONT LOWER SWING ARM ASSY, LH | 1 | $114.99 | Available to order | 1 |
| 02 | 9060-050900-10000 BALL PIN COMP. | BALL PIN COMP. CCVI | 1 | $45.99 | Available to order | 1 |
| 03 | 30801-03405 RETAINER 34 | RETAINER 34 34 | 6 | $1.25 | Available to order | 6 |
| 04 | 7030-040721 COVER,FRONT ARM(LH) | COVER,FRONT ARM(LH) | 1 | $57.49 | Available to order | 1 |
| 05 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 06 | 7030-040731 GUARD FRONT ARM(RH) | GUARD FRONT ARM(RH) | 1 | $20.69 | Available to order | 1 |
| 07 | 4060-050101 SHAFT,FRONT ARM | SHAFT,FRONT ARM | 1 | $12.64 | Available to order | 1 |
| 08 | 9060-050002 LONG BUSH,SUSPENSION ARM | LONG BUSH,SUSPENSION ARM | 2 | $19.54 | Available to order | 2 |
| 09 | 9060-050101-00002 MIDDLE SPACER, FRONT SWING ARM | MIDDLE SPACER, FRONT SWING ARM | 2 | $11.49 | Available to order | 2 |
| 10 | 3121401 GREASE ZERK M6 | GREASE ZERK M6 45° | 1 | $3.44 | Available to order | 1 |
| 11 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 12 | 5UWB-050701 STEERING KNUCKLE. LH | STEERING KNUCKLE. LH | 1 | $131.99 | Available to order | 1 |
| 13 | 9GQ0-050710 BEARING, HUB | BEARING, HUB 30 | 1 | $57.49 | Available to order | 1 |
| 14 | 30800-05505 RETAINER 55 | RETAINER 55 55 | 6 | $2.29 | Available to order | 6 |
| 15 | 7020-050005 BRAKE DISC SHIELD | BRAKE DISC SHIELD | 1 | $19.54 | Available to order | 1 |
| 16 | 30219-122810 NUT M12x1.25 | NUT M12x1.25 M12x1.25 | 6 | $2.29 | Available to order | 6 |
| 17 | 30903-0322210 COTTER PIN | COTTER PIN 3.2x22 | 6 | $1.25 | Available to order | 6 |
| 18 | 9030-050600-10000 BALL PIN COMP. | BALL PIN COMP. CCVI | 1 | $57.49 | Available to order | 1 |
| 19 | 703A-050110 FRONT UPPER A-ARM,LH | FRONT UPPER A-ARM,LH | 1 | $103.49 | Available to order | 1 |
| 20 | 30801-03205 RETAINER 32 | RETAINER 32 32 A-TYPE | 6 | $1.25 | Available to order | 6 |
| 21 | 30006-102055810 BOLT M10X1.25X55 | BOLT M10X1.25X55 M10x1.25x55 | 6 | $2.29 | Available to order | 6 |
| 22 | 703A-050500 FRONT SHOCK ABSORBER | FRONT SHOCK ABSORBER OIL SHOCK | 1 | $197.99 | Available to order | 1 |
| 23 | 703A-050310 FRONT UPPER A-ARM,RH | FRONT UPPER A-ARM,RH | 1 | $103.49 | Available to order | 1 |
| 24 | 9010-060800-20000 SWAY BAR LINK (RH) | SWAY BAR LINK (RH) CCVI | 1 | $57.49 | Available to order | 1 |
| 25 | 9010-060700-20000 SWAY BAR LINK (LH) | SWAY BAR LINK (LH) CCVI | 1 | $57.49 | Available to order | 1 |
| 26 | 9030-060002 RETAINING COVER | RETAINING COVER | 1 | $12.64 | Available to order | 1 |
| 27 | 7000-060003 SWAY BAR BUSHING | SWAY BAR BUSHING | 1 | $9.19 | Available to order | 1 |
| 28 | 7030-050610 FRONT STABILIZER BAR | FRONT STABILIZER BAR | 1 | $91.99 | Out of Stock | Notify Me |
| 29 | 30006-080016810 BOLT M8X16 | BOLT M8X16 M8x16 | 6 | $1.25 | Available to order | 6 |
| 30 | 703A-050201 GUARD | GUARD | 1 | $19.54 | Available to order | 1 |
| 31 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 32 | 703A-050410-10000 FRONT LOWER SWING ARM,RH | FRONT LOWER SWING ARM,RH | 1 | $103.49 | Obsolete | View Details |
| 33 | 5UWB-050801 STEERING KNUCKLE, RH | STEERING KNUCKLE, RH | 1 | $131.99 | Out of Stock | Notify Me |
