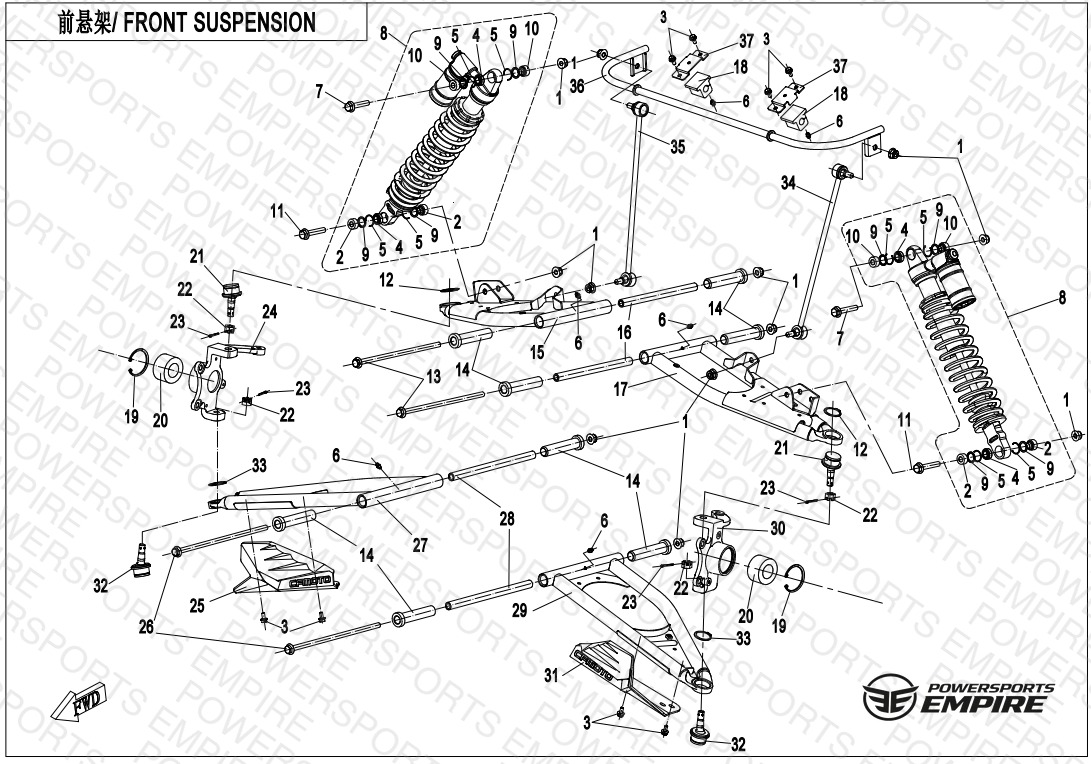

F05-B-V4 — FRONT SUSPENSION
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 02 | 7000-050504 SPACER RING | SPACER RING | 1 | $19.54 | Available to order | 1 |
| 03 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 04 | 7000-050510 BEARING | BEARING | 1 | $57.49 | Out of Stock | Notify Me |
| 05 | 7000-050502 CIRCLIP | CIRCLIP | 1 | $6.89 | Available to order | 1 |
| 06 | 3121401 GREASE ZERK M6 | GREASE ZERK M6 | 1 | $3.44 | Available to order | 1 |
| 07 | 30006-102050810 BOLT M10x1.25x50 | BOLT M10x1.25x50 M10x1.25x50 | 6 | $2.29 | Available to order | 6 |
| 08 | 7000-050500-10000 FRONT SHOCK ABSORBER | FRONT SHOCK ABSORBER WHITE | 1 | $505.99 | Available to order | 1 |
| 09 | 7000-050501 O-RING | O-RING | 6 | $3.44 | Available to order | 6 |
| 10 | 7000-050503 SPACER RING | SPACER RING | 1 | $12.64 | Available to order | 1 |
| 11 | 30006-102055810 BOLT M10X1.25X55 | BOLT M10X1.25X55 M10x1.25x55 | 6 | $2.29 | Available to order | 6 |
| 12 | 30801-03205 RETAINER 32 | RETAINER 32 | 6 | $1.25 | Available to order | 6 |
| 13 | 4060-060101 MOUNTING SHAFT, REAR ARM | MOUNTING SHAFT, REAR ARM | 1 | $12.64 | Available to order | 1 |
| 14 | 9060-050002 LONG BUSH,SUSPENSION ARM | LONG BUSH,SUSPENSION ARM | 2 | $19.54 | Available to order | 2 |
| 15 | 7000-050110-20000 FRONT RH UPPER SWING ARM | FRONT RH UPPER SWING ARM | 1 | $153.99 | Available to order | 1 |
| 16 | 9060-060101-00002 MIDDLE SPACER, REAR UPPER SWING ARM | MIDDLE SPACER, REAR UPPER SWING ARM | 1 | $11.49 | Available to order | 1 |
| 17 | 7000-050310-20000 FRONT LH UPPER SWING ARM | FRONT LH UPPER SWING ARM | 1 | $153.99 | Available to order | 1 |
| 18 | 7000-050601 RUBBER SEAT | RUBBER SEAT | 1 | $5.74 | Obsolete | View Details |
| 19 | 30800-05505 RETAINER 55 | RETAINER 55 55 | 6 | $2.29 | Available to order | 6 |
| 20 | 9GQ0-050710 BEARING, HUB | BEARING, HUB | 1 | $57.49 | Available to order | 1 |
| 21 | 9030-050600-10000 BALL PIN COMP. | BALL PIN COMP. | 1 | $57.49 | Available to order | 1 |
| 22 | 30219-122810 NUT M12x1.25 | NUT M12x1.25 M12x1.25 | 6 | $2.29 | Available to order | 6 |
| 23 | 30903-0322210 COTTER PIN | COTTER PIN 3.2x22 | 6 | $1.25 | Available to order | 6 |
| 24 | 5BWB-050802-10000 RH STEERING KNUCKLE | RH STEERING KNUCKLE | 1 | $153.99 | Out of Stock | Notify Me |
| 25 | 5BWB-050004 RH A-ARM GUARD | RH A-ARM GUARD | 1 | $11.49 | Available to order | 1 |
| 26 | 4060-050101 SHAFT,FRONT ARM | SHAFT,FRONT ARM | 1 | $12.64 | Available to order | 1 |
| 27 | 7000-050210-3B000 FRONT LOWER SWING ARM,RH | FRONT LOWER SWING ARM,RH BLACK | 1 | $131.99 | Out of Stock | Notify Me |
| 28 | 9060-050101-00002 MIDDLE SPACER, FRONT SWING ARM | MIDDLE SPACER, FRONT SWING ARM | 2 | $11.49 | Available to order | 2 |
| 29 | 7000-050410-3B000 FRONT LOWER SWING ARM, LH | FRONT LOWER SWING ARM, LH BLACK | 1 | $131.99 | Available to order | 1 |
| 30 | 5BWB-050702-10000 LH STEERING KNUCKLE | LH STEERING KNUCKLE | 1 | $153.99 | Out of Stock | Notify Me |
| 31 | 5BWB-050003 LH A-ARM GUARD | LH A-ARM GUARD | 1 | $11.49 | Available to order | 1 |
| 32 | 9060-050900-10000 BALL PIN COMP. | BALL PIN COMP. | 1 | $45.99 | Available to order | 1 |
| 33 | 30801-03405 RETAINER 34 | RETAINER 34 34 | 6 | $1.25 | Available to order | 6 |
| 34 | 9060-050620-1000 FRONT LINKAGE BAR (LH) | FRONT LINKAGE BAR (LH) | 1 | $80.49 | Obsolete | View Details |
| 35 | 9060-050640-1000 FRONT LINKAGE BAR (RH) | FRONT LINKAGE BAR (RH) | 1 | $80.49 | Obsolete | View Details |
| 36 | 7000-050610 FRONT STABILIZER BAR | FRONT STABILIZER BAR | 1 | $57.49 | Obsolete | View Details |
| 37 | 9060-050602 BUSHING, STABILIZER BAR | BUSHING, STABILIZER BAR | 2 | $9.19 | Obsolete | View Details |
