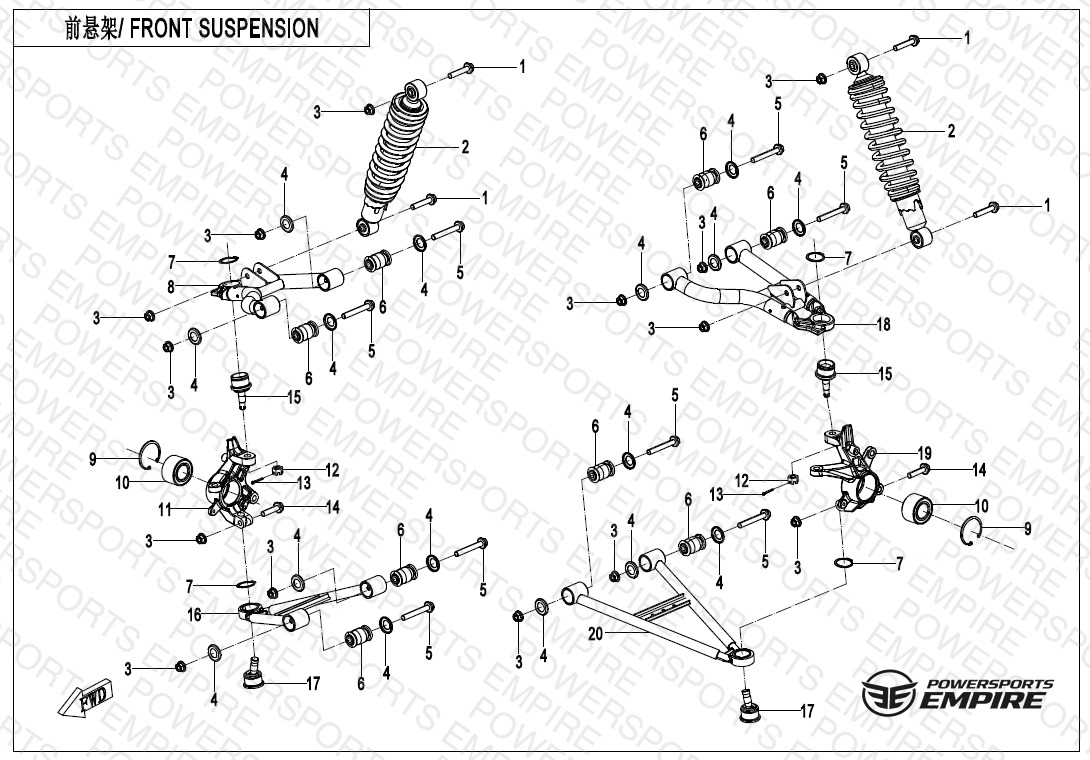

F05 — FRONT SUSPENSION
Parts (20)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-102055810 BOLT M10X1.25X55 | BOLT M10X1.25X55 M10x1.25x55 | 6 | $2.29 | Available to order | 6 |
| 02 | 9DS#-050600-6000 FRONT SHOCK ABSORBER ASSY. | FRONT SHOCK ABSORBER ASSY. | 1 | $252.99 | Available to order | 1 |
| 03 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 04 | 9010-050003 CAP, BUFFERING COLLAR | CAP, BUFFERING COLLAR | 2 | $3.44 | Obsolete | View Details |
| 05 | 30006-102070810 BOLT | BOLT M10x1.25x70 | 6 | $2.29 | Available to order | 6 |
| 06 | 9010-050500 BUFFERING COLLAR | BUFFERING COLLAR | 4 | $8.04 | Available to order | 4 |
| 07 | 30801-03405 RETAINER 34 | RETAINER 34 34 | 6 | $1.25 | Available to order | 6 |
| 08 | 9DSV-050310-6K01 FRONT UPPER SWING ARM, RH | FRONT UPPER SWING ARM, RH | 1 | $114.99 | Obsolete | View Details |
| 09 | 30800-05505 RETAINER 55 | RETAINER 55 55 | 6 | $2.29 | Available to order | 6 |
| 10 | 9GQ0-050710 BEARING, HUB | BEARING, HUB | 1 | $57.49 | Available to order | 1 |
| 11 | 9DSV-050801-6K00 RH STEERING KNUCKLE | RH STEERING KNUCKLE | 1 | $114.99 | Available to order | 1 |
| 12 | 9010-100002 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $3.44 | Available to order | 6 |
| 13 | 30903-0201610 COTTER PIN 2.0x16 | COTTER PIN 2.0x16 2.0x16 | 6 | $2.29 | Available to order | 6 |
| 14 | 30006-102045810 BOLT | BOLT M10x1.25x45 | 6 | $2.29 | Available to order | 6 |
| 15 | 9010-050700-1000 TOP BALL PIN | TOP BALL PIN | 1 | — | Obsolete | View Details |
| 16 | 9DSV-050410-6K01-0BP00 FRONT RH LOWER SWING ARM | FRONT RH LOWER SWING ARM | 1 | $103.49 | Available to order | 1 |
| 17 | 9010-050800-20000 BOTTOM BALL PIN | BOTTOM BALL PIN | 1 | $57.49 | Available to order | 1 |
| 18 | 9DSV-050110-6K01 FRONT UPPER SWING ARM, LH | FRONT UPPER SWING ARM, LH | 1 | $114.99 | Obsolete | View Details |
| 19 | 9DS#-050701-6000 LH STEERING KNUCKLE | LH STEERING KNUCKLE | 1 | $120.99 | Obsolete | View Details |
| 20 | 9DSV-050210-6K01 FRONT LOWER SWING ARM, LH | FRONT LOWER SWING ARM, LH | 1 | — | Obsolete | View Details |
