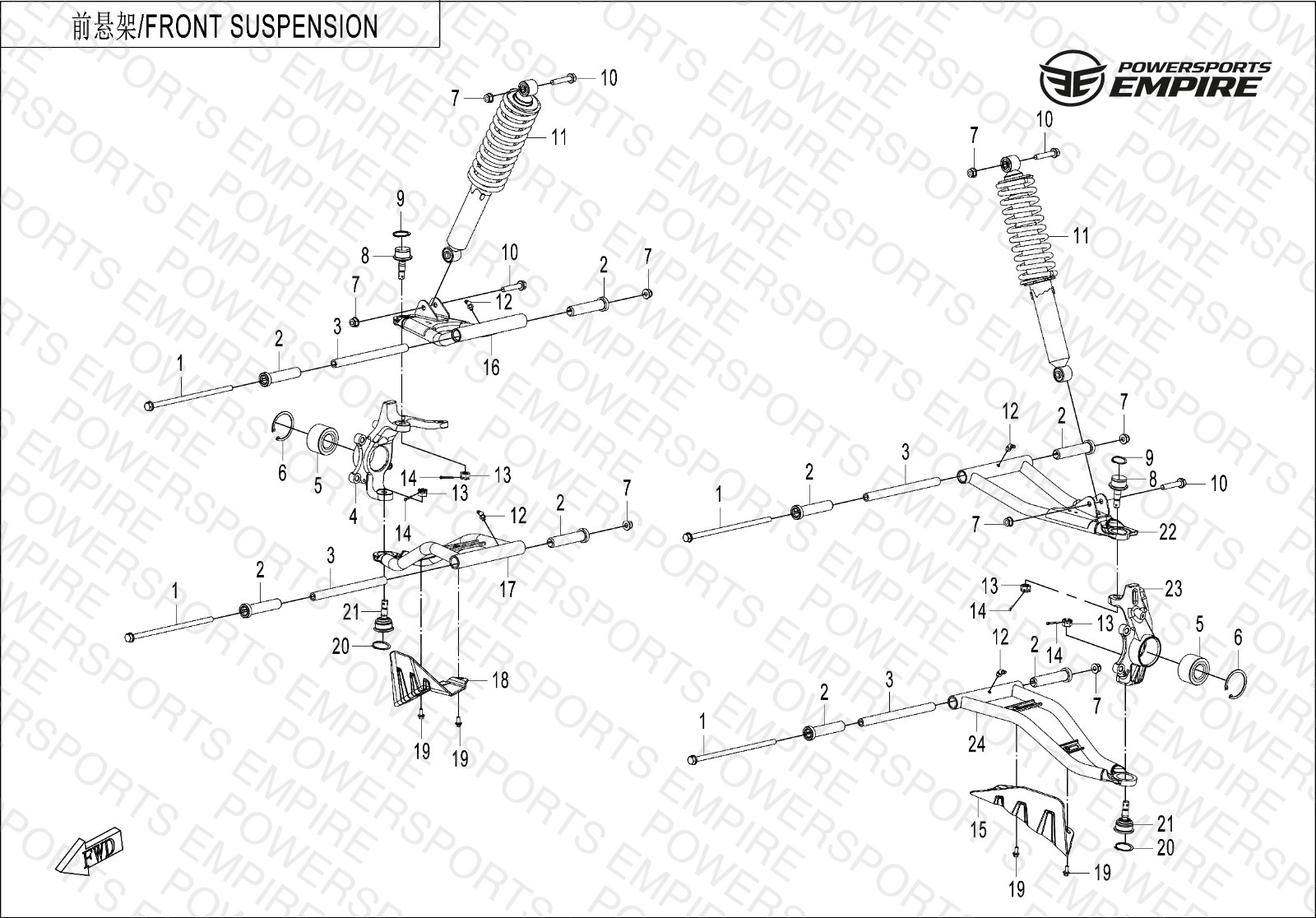

F05 — FRONT SUSPENSION
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 4060-060101 MOUNTING SHAFT, REAR ARM | MOUNTING SHAFT, REAR ARM | 1 | $12.64 | Available to order | 1 |
| 02 | 5ASV-050001-6000 LONG BUSHING | LONG BUSHING | 1 | $11.49 | Available to order | 1 |
| 03 | 9060-060101-00002 MIDDLE SPACER, REAR UPPER SWING ARM | MIDDLE SPACER, REAR UPPER SWING ARM | 1 | $11.49 | Available to order | 1 |
| 04 | 5ASV-050801-6000 STEERING KNUCKLE,RH | STEERING KNUCKLE,RH | 1 | $186.99 | Available to order | 1 |
| 05 | 30411-03080 HUB BEARING | HUB BEARING | 1 | — | Obsolete | View Details |
| 06 | 30800-06005 CIRCLIP | CIRCLIP 60 | 6 | $5.74 | Available to order | 6 |
| 07 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 08 | 9030-050600-10000 BALL PIN COMP. | BALL PIN COMP. CCVI | 1 | $57.49 | Available to order | 1 |
| 09 | 30801-03205 RETAINER 32 | RETAINER 32 32 A-TYPE | 6 | $1.25 | Available to order | 6 |
| 10 | 30006-102055110 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 11 | 5ASV-050500-6000-M1 FRONT SHOCK ABSORBER ASSY | FRONT SHOCK ABSORBER ASSY @ | 1 | $219.99 | Obsolete | View Details |
| 12 | 3121401 GREASE ZERK M6 | GREASE ZERK M6 | 1 | $3.44 | Available to order | 1 |
| 13 | 30219-122810 NUT M12x1.25 | NUT M12x1.25 M12x1.25 | 6 | $2.29 | Available to order | 6 |
| 14 | 30903-0322210 COTTER PIN | COTTER PIN 3.2x22 | 6 | $1.25 | Available to order | 6 |
| 15 | 5ASV-050201-6000 GUARD, FRONT LH SWING ARM | GUARD, FRONT LH SWING ARM | 1 | $11.49 | Available to order | 1 |
| 16-01 | 5ASV-050310-6002 FRONT RH UPPER SWING ARM | FRONT RH UPPER SWING ARM ELECTROPHORESIS BLACK | 1 | — | Obsolete | View Details |
| 16-02 | 5ASV-050310-6003 FRONT RH UPPER SWING ARM | FRONT RH UPPER SWING ARM | 1 | $131.99 | Available to order | 1 |
| 17 | 5ASV-050410-6002 FRONT RH LOWER SWING ARM | FRONT RH LOWER SWING ARM ELECTROPHORESIS BLACK | 1 | $120.99 | Available to order | 1 |
| 18 | 5ASV-050401-6000 GUARD, FRONT RH SWING ARM | GUARD, FRONT RH SWING ARM | 1 | $11.49 | Available to order | 1 |
| 19 | 8010-000004 BOLT M6x14 | BOLT M6x14 M6x14 | 6 | $1.25 | Available to order | 6 |
| 20 | 30801-03405 RETAINER 34 | RETAINER 34 34 | 6 | $1.25 | Available to order | 6 |
| 21 | 9060-050900-10000 BALL PIN COMP. | BALL PIN COMP. CCVI | 1 | $45.99 | Available to order | 1 |
| 22-02 | 5ASV-050110-6003 FRONT LH UPPER SWING ARM | FRONT LH UPPER SWING ARM | 1 | $136.39 | Available to order | 1 |
| 23 | 5ASV-050701-6000 LH STEERING KNUCKLE | LH STEERING KNUCKLE | 1 | $186.99 | Available to order | 1 |
| 24 | 5ASV-050210-6002 FRONT LH LOWER SWING ARM | FRONT LH LOWER SWING ARM ELECTROPHORESIS BLACK | 1 | $120.99 | Available to order | 1 |
