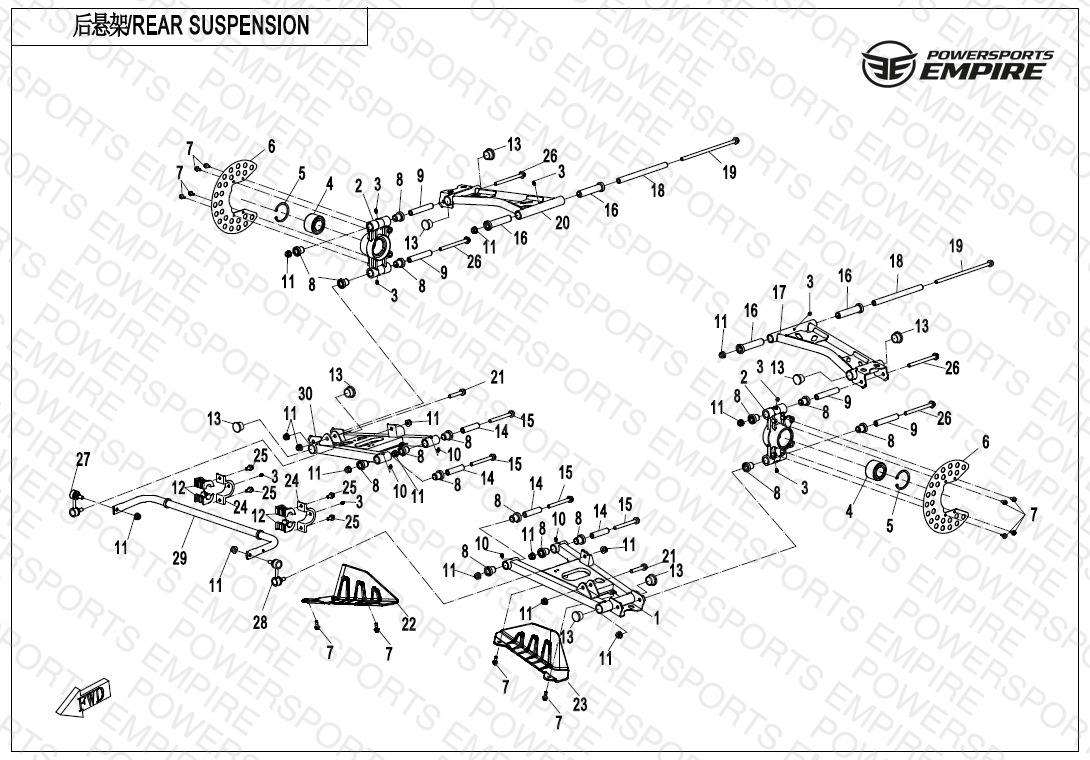

F06-1 — REAR SUSPENSION
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5HY0-060210 REAR LOWER A ARM, LH | REAR LOWER A ARM, LH | 1 | $153.99 | Available to order | 1 |
| 02 | 5HY0-060703 BRACKET, REAR WHEEL SHAFT | BRACKET, REAR WHEEL SHAFT | 1 | $131.99 | Available to order | 1 |
| 03 | 3120100 GREASE ZERK | GREASE ZERK M6 | 2 | $3.44 | Available to order | 2 |
| 04 | 30411-03080 HUB BEARING | HUB BEARING | 1 | — | Obsolete | View Details |
| 05 | 30800-06005 CIRCLIP | CIRCLIP 60 | 6 | $5.74 | Available to order | 6 |
| 06 | 5HY0-060702 GUARD, REAR BRAKE DISC | GUARD, REAR BRAKE DISC | 1 | $19.54 | Available to order | 1 |
| 07 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 08 | 9060-050003 SHORT BUSH,SUSPENSION ARM | SHORT BUSH,SUSPENSION ARM | 2 | $12.64 | Available to order | 2 |
| 10 | 3121400 GREASE ZERK | GREASE ZERK 90¬8 | 1 | $3.44 | Available to order | 1 |
| 11 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 12 | 7000-060003 SWAY BAR BUSHING | SWAY BAR BUSHING | 1 | $9.19 | Available to order | 1 |
| 13 | 9060-060002 PLUG, REAR LOWER ARM | PLUG, REAR LOWER ARM | 2 | $5.74 | Available to order | 2 |
| 14 | 9060-060201-00002 MIDDLE SPACER, REAR LOWER SWING ARM | MIDDLE SPACER, REAR LOWER SWING ARM | 1 | $6.89 | Available to order | 1 |
| 15 | 30001-102095110 BOLT M10X1.25X95 | BOLT M10X1.25X95 M10x1.25x95 | 6 | $5.74 | Available to order | 6 |
| 16 | 9060-050002 LONG BUSH,SUSPENSION ARM | LONG BUSH,SUSPENSION ARM | 2 | $19.54 | Available to order | 2 |
| 17 | 5HY0-060110 REAR UPPER A ARM, LH | REAR UPPER A ARM, LH | 1 | $103.49 | Obsolete | View Details |
| 18 | 9060-060101-00002 MIDDLE SPACER, REAR UPPER SWING ARM | MIDDLE SPACER, REAR UPPER SWING ARM | 1 | $11.49 | Available to order | 1 |
| 19 | 4060-060101 MOUNTING SHAFT, REAR ARM | MOUNTING SHAFT, REAR ARM | 1 | $12.64 | Available to order | 1 |
| 20 | 5HY0-060310 REAR UPPER A ARM, RH | REAR UPPER A ARM, RH | 1 | $164.99 | Available to order | 1 |
| 21 | 30006-102055810 BOLT M10X1.25X55 | BOLT M10X1.25X55 M10x1.25x55 | 6 | $2.29 | Available to order | 6 |
| 22 | 5HYV-060401-1000 GUARD, REAR RH SWINGARM | GUARD, REAR RH SWINGARM | 1 | $11.49 | Available to order | 1 |
| 23 | 5HYV-060201-1000 GUARD, REAR LH SWINGARM | GUARD, REAR LH SWINGARM | 1 | $11.49 | Available to order | 1 |
| 24 | 9030-060002 RETAINING COVER | RETAINING COVER | 1 | $12.64 | Available to order | 1 |
| 25 | 30006-080016810 BOLT M8X16 | BOLT M8X16 M8x16 | 6 | $1.25 | Available to order | 6 |
| 26 | 30001-102120110 BOLT | BOLT M10x1.25x120 | 6 | — | Obsolete | View Details |
| 27 | 9010-060800-20000 SWAY BAR LINK (RH) | SWAY BAR LINK (RH) CCVI | 1 | $57.49 | Available to order | 1 |
| 28 | 9010-060700-20000 SWAY BAR LINK (LH) | SWAY BAR LINK (LH) CCVI | 1 | $57.49 | Available to order | 1 |
| 29 | 5HY0-060610 REAR SWAY BAR | REAR SWAY BAR | 1 | $114.99 | Out of Stock | Notify Me |
| 30 | 5HY0-060410 REAR LOWER A ARM. RH | REAR LOWER A ARM. RH | 1 | $153.99 | Out of Stock | Notify Me |
