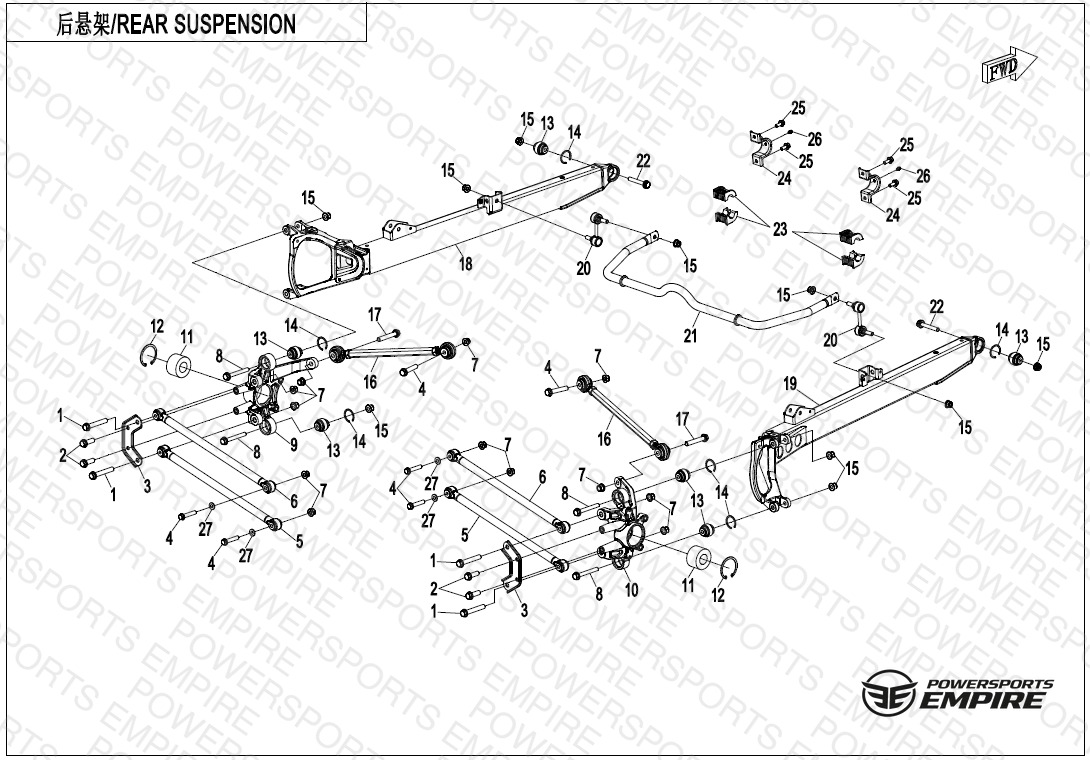

F06-1 — REAR SUSPENSION
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5BY0-060703 BOLT, REAR TIE ROD | BOLT, REAR TIE ROD | 1 | $6.89 | Available to order | 1 |
| 02 | 30006-102030810 BOLT M10X30 | BOLT M10X30 M10x1.25x30 | 6 | $2.29 | Available to order | 6 |
| 03 | 5BY0-060702 MOUNTING BRACKET, REAR WHEEL SHAFT SEAT | MOUNTING BRACKET, REAR WHEEL SHAFT SEAT | 1 | $11.49 | Available to order | 1 |
| 04 | 30001-122060160 BOLT M10x1.25x60 | BOLT M10x1.25x60 M10x1.25x60 | 6 | $6.89 | Available to order | 6 |
| 05 | 5BY0-060400 LOWER TIE ROD, REAR | LOWER TIE ROD, REAR | 1 | $186.99 | Available to order | 1 |
| 06 | 5BY0-060300 UPPER TIE ROD, REAR | UPPER TIE ROD, REAR | 1 | $186.99 | Available to order | 1 |
| 07 | 30204-122810 NUT M12x1.25 | NUT M12x1.25 M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 08 | 30006-102080110 BOLT | BOLT | 1 | $4.59 | Available to order | 1 |
| 09 | 5BYV-060701-1000 SUPPORT, REAR LH WHEEL SHAFT | SUPPORT, REAR LH WHEEL SHAFT | 1 | $219.99 | Out of Stock | Notify Me |
| 10 | 5BYV-060801-1000 SUPPORT, REAR RH WHEEL SHAFT | SUPPORT, REAR RH WHEEL SHAFT | 1 | $219.99 | Available to order | 1 |
| 11 | 30411-03080 HUB BEARING | HUB BEARING | 1 | — | Obsolete | View Details |
| 12 | 30800-06005 CIRCLIP | CIRCLIP 60 | 6 | $5.74 | Available to order | 6 |
| 13 | 5BY0-060120 BEARING, REAR SWING ARM | BEARING, REAR SWING ARM | 1 | $45.99 | Available to order | 1 |
| 14 | 5BY0-060102 BEARING RETAINER, SWING ARM | BEARING RETAINER, SWING ARM | 1 | $1.25 | Available to order | 1 |
| 15 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 16 | 5BY0-060900 ADJUSTING LEVER, REAR SWING ARM | ADJUSTING LEVER, REAR SWING ARM | 1 | $153.99 | Available to order | 1 |
| 17 | 30001-122070160 BOLT M12x1.25x70 | BOLT M12x1.25x70 M10x1.25x70 | 6 | $6.89 | Available to order | 6 |
| 18 | 5BYV-060110-1000 REAR LH SWING ARM | REAR LH SWING ARM | 1 | $571.99 | Obsolete | View Details |
| 19 | 5BYV-060210-1000 REAR RH SWING ARM | REAR RH SWING ARM | 1 | $571.99 | Obsolete | View Details |
| 20 | 5BYA-060620 SWAY BAR BALL PIN | SWAY BAR BALL PIN | 1 | $68.99 | Available to order | 1 |
| 21 | 5BYV-060610-A100 REAR SWAY BAR | REAR SWAY BAR | 1 | $120.99 | Out of Stock | Notify Me |
| 22 | 30006-102060110 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 23 | 5BWV-060003-5000 SEAT, SWAY BAR | SEAT, SWAY BAR | 1 | $28.74 | Available to order | 1 |
| 24 | 9030-060002 RETAINING COVER | RETAINING COVER | 1 | $12.64 | Available to order | 1 |
| 25 | 30006-080016810 BOLT M8X16 | BOLT M8X16 M8x16 | 6 | $1.25 | Available to order | 6 |
| 26 | 3121401 GREASE ZERK M6 | GREASE ZERK M6 | 1 | $3.44 | Available to order | 1 |
| 27 | 30306-120112 PLAIN WASHER | PLAIN WASHER 12 | 6 | $1.25 | Available to order | 6 |
