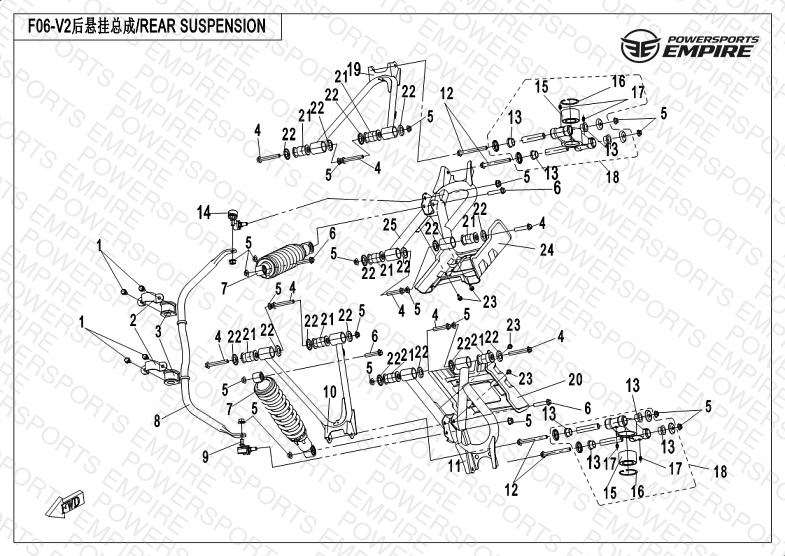

F06-V2 — REAR SUSPENSION
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-080012810 BOLT | BOLT | 6 | $1.25 | Available to order | 6 |
| 02 | 9GQ0-060601-00001 COVER, SWAY BAR BUSHING | COVER, SWAY BAR BUSHING | 1 | $12.64 | Available to order | 1 |
| 03 | 9GQ0-060003 SWAY BAR BUSHING | SWAY BAR BUSHING | 1 | $8.04 | Available to order | 1 |
| 04 | 30006-102070810 BOLT | BOLT M10×1.25×70 | 6 | $2.29 | Available to order | 6 |
| 05 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 06 | 30006-102050810 BOLT M10x1.25x50 | BOLT M10x1.25x50 | 6 | $2.29 | Available to order | 6 |
| 07 | 9010-060600 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER | 1 | $131.99 | Available to order | 1 |
| 08 | 9010-060500 SWAY BAR | SWAY BAR | 1 | $80.49 | Out of Stock | Notify Me |
| 09 | 9010-060700-20000 SWAY BAR LINK (LH) | SWAY BAR LINK (LH) | 1 | $57.49 | Available to order | 1 |
| 10 | 9010-060300-20000 REAR LEFT ARM (UPPER) | REAR LEFT ARM (UPPER) | 1 | $103.49 | Available to order | 1 |
| 11 | 9010-060400-20000 REAR SWING ARM (LOWER) ASSY,LH | REAR SWING ARM (LOWER) ASSY,LH | 1 | $105.23 | Obsolete | View Details |
| 12 | 30006-102100810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 13 | 9010-060004 BUSHING | BUSHING | 2 | $10.34 | Available to order | 2 |
| 14 | 9010-060800-20000 SWAY BAR LINK (RH) | SWAY BAR LINK (RH) | 1 | $57.49 | Available to order | 1 |
| 15 | 9GQ0-050710 BEARING, HUB | BEARING, HUB | 1 | $57.49 | Available to order | 1 |
| 16 | 30800-05505 RETAINER 55 | RETAINER 55 | 6 | $2.29 | Available to order | 6 |
| 17 | 3120100 GREASE ZERK | GREASE ZERK | 2 | $3.44 | Available to order | 2 |
| 18 | 9010-0600A0 HOLDER UNIT,REAR WHEEL SHAFT | HOLDER UNIT,REAR WHEEL SHAFT | 1 | $131.99 | Obsolete | View Details |
| 19 | 9010-060100-20000 REAR UPPER ARM,RH | REAR UPPER ARM,RH | 1 | $103.49 | Out of Stock | Notify Me |
| 20 | 901B-040021-10000 LEFT PROTECTOR, REAR SUSPENSION | LEFT PROTECTOR, REAR SUSPENSION | 1 | $45.99 | Obsolete | View Details |
| 21 | 9010-050500 BUFFERING COLLAR | BUFFERING COLLAR | 4 | $8.04 | Available to order | 4 |
| 22 | 9010-050003 CAP, BUFFERING COLLAR | CAP, BUFFERING COLLAR | 2 | $3.44 | Obsolete | View Details |
| 23 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 24 | 901B-040022-10000 RIGHT PROTECTOR, REAR SUSPENSION | RIGHT PROTECTOR, REAR SUSPENSION | 1 | $26.44 | Obsolete | View Details |
| 25 | 9010-060200-20000 REAR ARM (LOWER) ASSY,RH | REAR ARM (LOWER) ASSY,RH | 1 | $104.59 | Obsolete | View Details |
