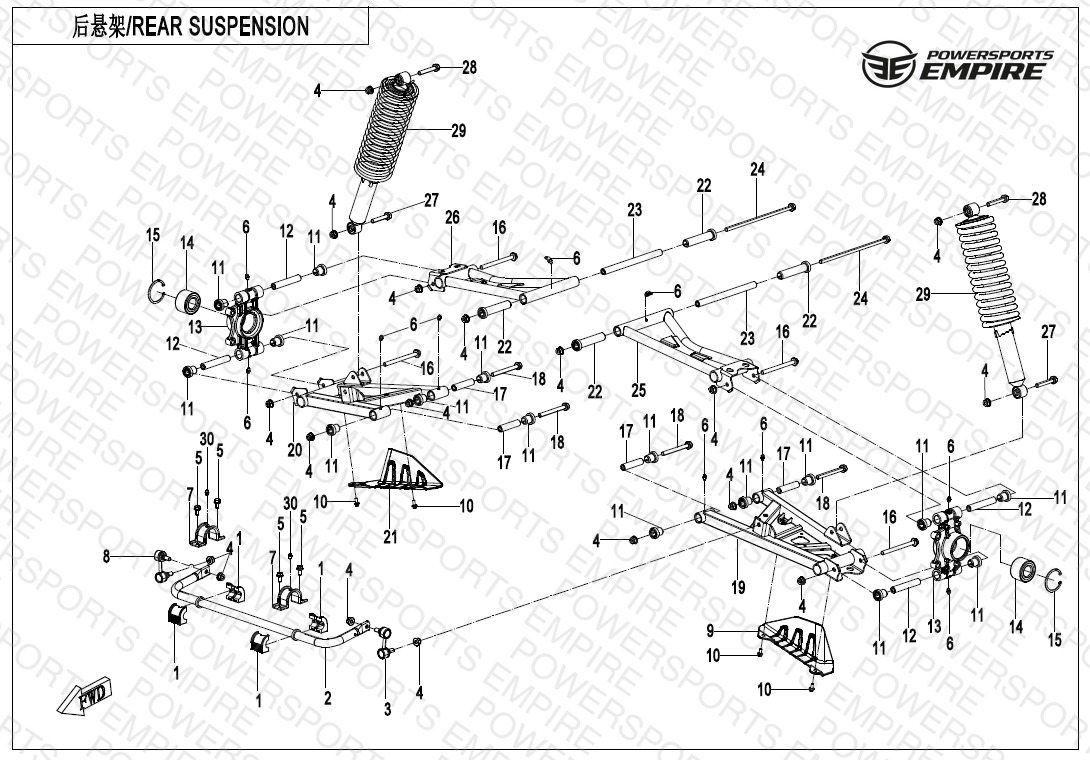

F06 — REAR SUSPENSION
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 7000-060003 SWAY BAR BUSHING | SWAY BAR BUSHING | 1 | $9.19 | Available to order | 1 |
| 02 | 5ASV-060610-6000 REAR SWAY BAR ASSY | REAR SWAY BAR ASSY | 1 | $114.99 | Out of Stock | Notify Me |
| 03 | 9010-060700-20000 SWAY BAR LINK (LH) | SWAY BAR LINK (LH) | 1 | $57.49 | Available to order | 1 |
| 04 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 05 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 06 | 3120100 GREASE ZERK | GREASE ZERK | 2 | $3.44 | Available to order | 2 |
| 07 | 9030-060002 RETAINING COVER | RETAINING COVER | 1 | $12.64 | Available to order | 1 |
| 08 | 9010-060800-20000 SWAY BAR LINK (RH) | SWAY BAR LINK (RH) | 1 | $57.49 | Available to order | 1 |
| 09 | 5HYV-060201-1000 GUARD, REAR LH SWINGARM | GUARD, REAR LH SWINGARM | 1 | $11.49 | Available to order | 1 |
| 10 | 8010-000004 BOLT M6x14 | BOLT M6x14 | 6 | $1.25 | Available to order | 6 |
| 11 | 5ASV-050002-6001 SHORT BUSHING | SHORT BUSHING | 2 | $8.04 | Available to order | 2 |
| 12 | 5HY0-060701-00001 MIDDLE SPACER, REAR BEARING CARRIER | MIDDLE SPACER, REAR BEARING CARRIER | 1 | $8.04 | Available to order | 1 |
| 13 | 5HY0-060703 BRACKET, REAR WHEEL SHAFT | BRACKET, REAR WHEEL SHAFT | 1 | $131.99 | Available to order | 1 |
| 14 | 30411-03081 HUB BEARING | HUB BEARING | 1 | $57.49 | Available to order | 1 |
| 15 | 30800-06005 CIRCLIP | CIRCLIP | 6 | $5.74 | Available to order | 6 |
| 16 | 30001-102120110 BOLT | BOLT | 6 | — | Obsolete | View Details |
| 17 | 9060-060201-00002 MIDDLE SPACER, REAR LOWER SWING ARM | MIDDLE SPACER, REAR LOWER SWING ARM | 1 | $6.89 | Available to order | 1 |
| 18 | 30001-102095110 BOLT M10X1.25X95 | BOLT M10X1.25X95 | 6 | $5.74 | Available to order | 6 |
| 19 | 5ASV-060210-6001 REAR LOWER SWING ARM, LH | REAR LOWER SWING ARM, LH | 1 | $142.99 | Available to order | 1 |
| 20 | 5ASV-060410-6001 REAR LOWER SWING ARM, RH | REAR LOWER SWING ARM, RH | 1 | $142.99 | Available to order | 1 |
| 21 | 5HYV-060401-1000 GUARD, REAR RH SWINGARM | GUARD, REAR RH SWINGARM | 1 | $11.49 | Available to order | 1 |
| 22 | 5ASV-050001-6000 LONG BUSHING | LONG BUSHING | 1 | $11.49 | Available to order | 1 |
| 23 | 9060-060101-00002 MIDDLE SPACER, REAR UPPER SWING ARM | MIDDLE SPACER, REAR UPPER SWING ARM | 1 | $11.49 | Available to order | 1 |
| 24 | 4060-060101 MOUNTING SHAFT, REAR ARM | MOUNTING SHAFT, REAR ARM | 1 | $12.64 | Available to order | 1 |
| 25 | 5ASV-060110-6002 REAR LH UPPER SWING ARM | REAR LH UPPER SWING ARM | 1 | $91.99 | Available to order | 1 |
| 26 | 5ASV-060310-6002 REAR RH UPPER SWING ARM | REAR RH UPPER SWING ARM | 1 | $91.99 | Available to order | 1 |
| 27 | 30006-102055110 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 28 | 30006-102060110 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 29 | 5ASV-060500-6000-M1 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER | 1 | — | Obsolete | View Details |
| 30 | 3121401 GREASE ZERK M6 | GREASE ZERK M6 | 1 | $3.44 | Available to order | 1 |
