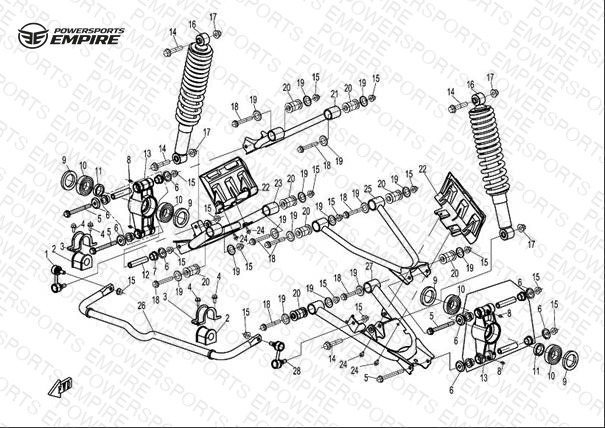

F06 — REAR SUSPENSION
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9010-060800-20000 SWAY BAR LINK (RH) | SWAY BAR LINK (RH) | 1 | $57.49 | Available to order | 1 |
| 02 | 9030-060003 RUBBER SUPPORT | RUBBER SUPPORT | 1 | $12.64 | Available to order | 1 |
| 03 | 9030-060002 RETAINING COVER | RETAINING COVER | 1 | $12.64 | Available to order | 1 |
| 04 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 05 | 30006-102100840 BOLT M10×1.25×100 | BOLT M10×1.25×100 | 6 | $4.59 | Obsolete | View Details |
| 06 | 9010-060900 DUST CAP | DUST CAP | 2 | $6.89 | Available to order | 2 |
| 07 | 9010-060004 BUSHING | BUSHING | 2 | $10.34 | Available to order | 2 |
| 09 | 30500-042800N SEAL RING FB 42x62x8 | SEAL RING FB 42x62x8 | 1 | $6.89 | Obsolete | View Details |
| 10 | 30400-03081 BEARING 6206 | BEARING 6206 | 1 | $34.49 | Obsolete | View Details |
| 11 | 9030-050003 SPACER | SPACER | 1 | $3.44 | Obsolete | View Details |
| 12 | 9010-060005 MIDDLE SPACER | MIDDLE SPACER | 2 | $17.24 | Available to order | 2 |
| 13 | 9030-060001 REAR AXLE SHAFT SUPPORT | REAR AXLE SHAFT SUPPORT | 1 | $131.99 | Obsolete | View Details |
| 14 | 30006-122060840 BOLT M12x1.25x60 | BOLT M12x1.25x60 | 6 | $3.44 | Obsolete | View Details |
| 15 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 16 | 9030-060600 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER | 1 | $164.99 | Obsolete | View Details |
| 17 | 30204-122840 NUT M12×1.25 | NUT M12×1.25 | 6 | $2.29 | Obsolete | View Details |
| 18 | 30006-102070810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 19 | 9010-050003 CAP, BUFFERING COLLAR | CAP, BUFFERING COLLAR | 2 | $3.44 | Obsolete | View Details |
| 20 | 9010-050500 BUFFERING COLLAR | BUFFERING COLLAR | 4 | $8.04 | Available to order | 4 |
| 21 | 9030-060300 REAR RIGHT ARM (UPPER) | REAR RIGHT ARM (UPPER) | 1 | $80.49 | Obsolete | View Details |
| 22 | 9030-050004 SUSPENSION PROTECTOR | SUSPENSION PROTECTOR | 1 | $17.24 | Obsolete | View Details |
| 23 | 9030-060400 REAR RIGHT ARM (LOWER) | REAR RIGHT ARM (LOWER) | 1 | $164.99 | Obsolete | View Details |
| 24 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 25 | 9030-060100 REAR LEFT ARM (UPPER) | REAR LEFT ARM (UPPER) | 1 | $80.49 | Obsolete | View Details |
| 26 | 9030-060500 TORSION BAR COMP. | TORSION BAR COMP. | 1 | $114.99 | Obsolete | View Details |
| 27 | 9030-060200 REAR LEFT ARM (LOWER) | REAR LEFT ARM (LOWER) | 1 | $164.99 | Obsolete | View Details |
| 28 | 9010-060700-1000 BALL PIN, LH | BALL PIN, LH | 1 | $45.99 | Obsolete | View Details |
