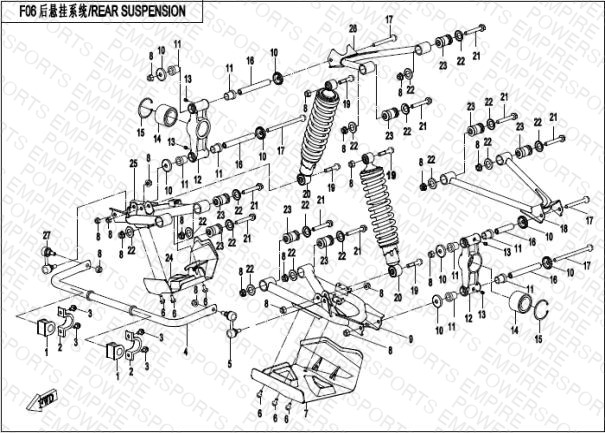

F06 — REAR SUSPENSION
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9010-060003 RUBBER SUPPORT | RUBBER SUPPORT | 1 | $6.89 | Obsolete | View Details |
| 02 | 9GQ0-060601-00001 COVER, SWAY BAR BUSHING | COVER, SWAY BAR BUSHING | 1 | $12.64 | Available to order | 1 |
| 03 | 30006-080012810 BOLT | BOLT | 6 | $1.25 | Available to order | 6 |
| 04 | 9GQ0-060610-10000 REAR STABILIZER BAR | REAR STABILIZER BAR | 1 | $91.99 | Out of Stock | Notify Me |
| 05 | 9010-060700-1000 BALL PIN, LH | BALL PIN, LH | 1 | $45.99 | Obsolete | View Details |
| 06 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 07 | 9GQ0-044043 REAR PROTECTION PLATE,LH | REAR PROTECTION PLATE,LH | 1 | $57.49 | Obsolete | View Details |
| 08 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 09 | 9GQ0-060210-00002 REAR LOWER ARM,LH | REAR LOWER ARM,LH | 1 | $103.49 | Available to order | 1 |
| 10 | 9010-060900 DUST CAP | DUST CAP | 2 | $6.89 | Available to order | 2 |
| 11 | 9010-060004 BUSHING | BUSHING | 2 | $10.34 | Available to order | 2 |
| 12 | 9010-0600A0 HOLDER UNIT,REAR WHEEL SHAFT | HOLDER UNIT,REAR WHEEL SHAFT | 1 | $131.99 | Obsolete | View Details |
| 13 | 3120100 GREASE ZERK | GREASE ZERK | 2 | $3.44 | Available to order | 2 |
| 14 | 9GQ0-050710 BEARING, HUB | BEARING, HUB | 1 | $57.49 | Available to order | 1 |
| 15 | 30800-05505 RETAINER 55 | RETAINER 55 | 6 | $2.29 | Available to order | 6 |
| 16 | 9010-060005 MIDDLE SPACER | MIDDLE SPACER | 2 | $17.24 | Available to order | 2 |
| 17 | 30006-102100840 BOLT M10×1.25×100 | BOLT M10×1.25×100 | 6 | $4.59 | Obsolete | View Details |
| 18 | 9GQ0-060110 REAR UPPER ARM,LH | REAR UPPER ARM,LH | 1 | $103.49 | Available to order | 1 |
| 19 | 30006-102055840 BOLT M10×1.25×55 | BOLT M10×1.25×55 | 6 | $2.29 | Obsolete | View Details |
| 20 | 9GQ0-060500 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER | 1 | $153.99 | Available to order | 1 |
| 21 | 30006-102070810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 22 | 9010-050003 CAP, BUFFERING COLLAR | CAP, BUFFERING COLLAR | 2 | $3.44 | Obsolete | View Details |
| 23 | 9010-050500 BUFFERING COLLAR | BUFFERING COLLAR | 4 | $8.04 | Available to order | 4 |
| 24 | 9GQ0-044044 REAR PROTECTION PLATE,RH | REAR PROTECTION PLATE,RH | 1 | $57.49 | Obsolete | View Details |
| 25 | 9GQ0-060410-00002 REAR LOWER A ARM, RH | REAR LOWER A ARM, RH | 1 | $103.49 | Available to order | 1 |
| 26 | 9GQ0-060310 REAR UPPER ARM,RH | REAR UPPER ARM,RH | 1 | $103.49 | Available to order | 1 |
| 27 | 9010-060800-20000 SWAY BAR LINK (RH) | SWAY BAR LINK (RH) | 1 | $57.49 | Available to order | 1 |
