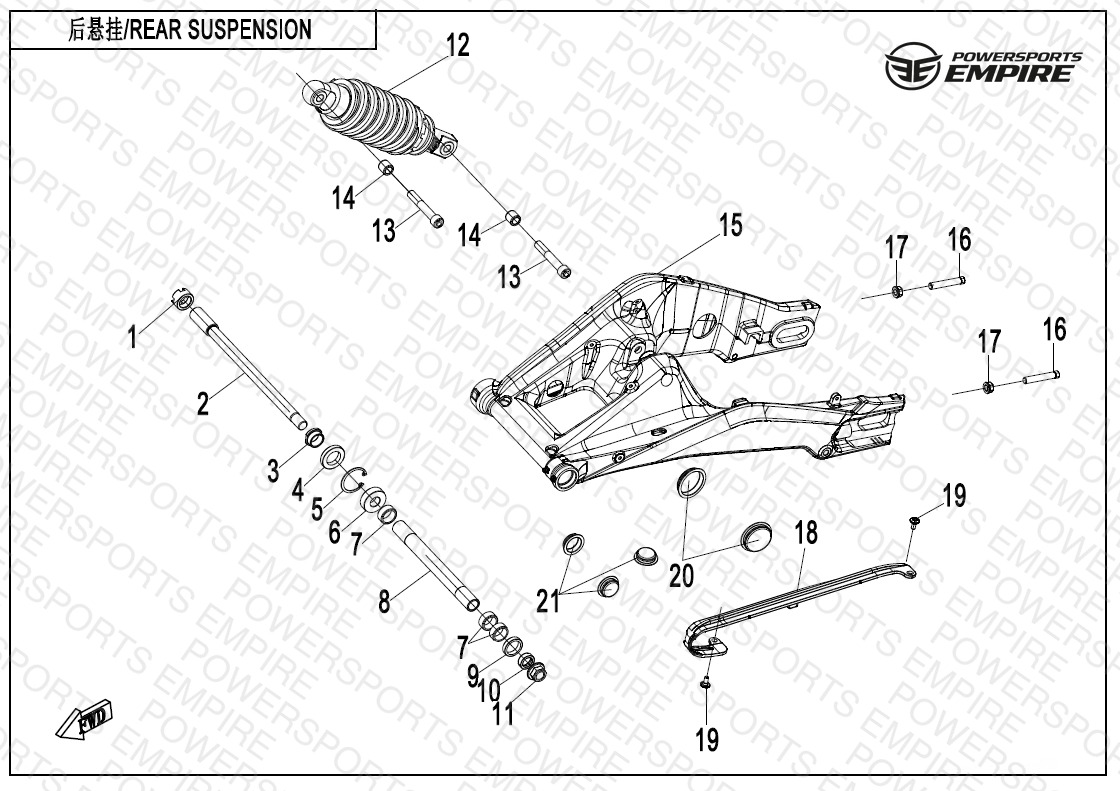

F06 — REAR SUSPENSION
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 6GUV-060019-5600 NUT | NUT | 1 | $5.74 | Available to order | 1 |
| 02 | 6GUV-060001-5600 REAR FORK SHAFT | REAR FORK SHAFT | 1 | $18.39 | Available to order | 1 |
| 03 | 6GUV-060018-5600 THREADED SLEEVE | THREADED SLEEVE | 1 | $4.59 | Available to order | 1 |
| 04 | 30500-025802N OIL SEAL | OIL SEAL | 1 | $3.44 | Available to order | 1 |
| 05 | 30800-04005 CIRCLIP FOR HOLE | CIRCLIP FOR HOLE | 6 | $2.29 | Available to order | 6 |
| 06 | 30400-01704 BEARING 6203 | BEARING 6203 | 1 | $34.49 | Available to order | 1 |
| 07 | 30403-02200 BEARING HK2212, NEEDLE | BEARING HK2212, NEEDLE | 1 | $4.59 | Available to order | 1 |
| 08 | 6GUV-060015-5600 REAR FORK LINER | REAR FORK LINER | 1 | $10.34 | Available to order | 1 |
| 09 | 6WWV-060030-5000-10 OIL SEAL | OIL SEAL | 2 | $3.44 | Available to order | 2 |
| 10 | 6WWV-060002-5000 BUSHING, REAR SWING ARM | BUSHING, REAR SWING ARM | 2 | $6.89 | Available to order | 2 |
| 11 | 6AQV-060006-1000-M1 NUT M16x1.6 | NUT M16x1.6 | 2 | $4.59 | Available to order | 2 |
| 12 | 6GUV-060100-5600-M1 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER | 1 | $483.99 | Available to order | 1 |
| 13 | 6GU#-060006-6000 BOLT M12x75 | BOLT M12x75 | 1 | $5.74 | Out of Stock | Notify Me |
| 14 | 6AQV-060302-3000 BUSHING | BUSHING | 1 | $4.59 | Available to order | 1 |
| 15 | 6GUV-060301-5600-0BP00 REAR FORK | REAR FORK MAUD SPIRIT BLACK | 1 | $549.99 | Out of Stock | Notify Me |
| 16-01 | 6KMV-060002-M500 CHAIN ADJUSTING BOLT | CHAIN ADJUSTING BOLT | 1 | $3.44 | Available to order | 1 |
| 16-02 | 6L30-060002 ADJUSTABLE BOLT, CHAIN | ADJUSTABLE BOLT, CHAIN | 1 | $8.04 | Available to order | 1 |
| 17 | 6L30-060013 LOCK NUT, CHAIN ADJUSTER | LOCK NUT, CHAIN ADJUSTER | 1 | $1.25 | Out of Stock | Notify Me |
| 18 | 6GUV-060002-5601 CHAIN GUARD | CHAIN GUARD | 1 | $16.09 | Out of Stock | Notify Me |
| 19 | 6WWV-046602-5000 INNER HEX STEPPED SCREW M6x15 | INNER HEX STEPPED SCREW M6x15 | 6 | $1.25 | Available to order | 6 |
| 20 | 6NT1-060002 DUST CAP, BIG | DUST CAP, BIG | 1 | $3.44 | Available to order | 1 |
| 21 | 6NT1-060003 DUST CAP, SMALL | DUST CAP, SMALL | 1 | $2.29 | Available to order | 1 |
