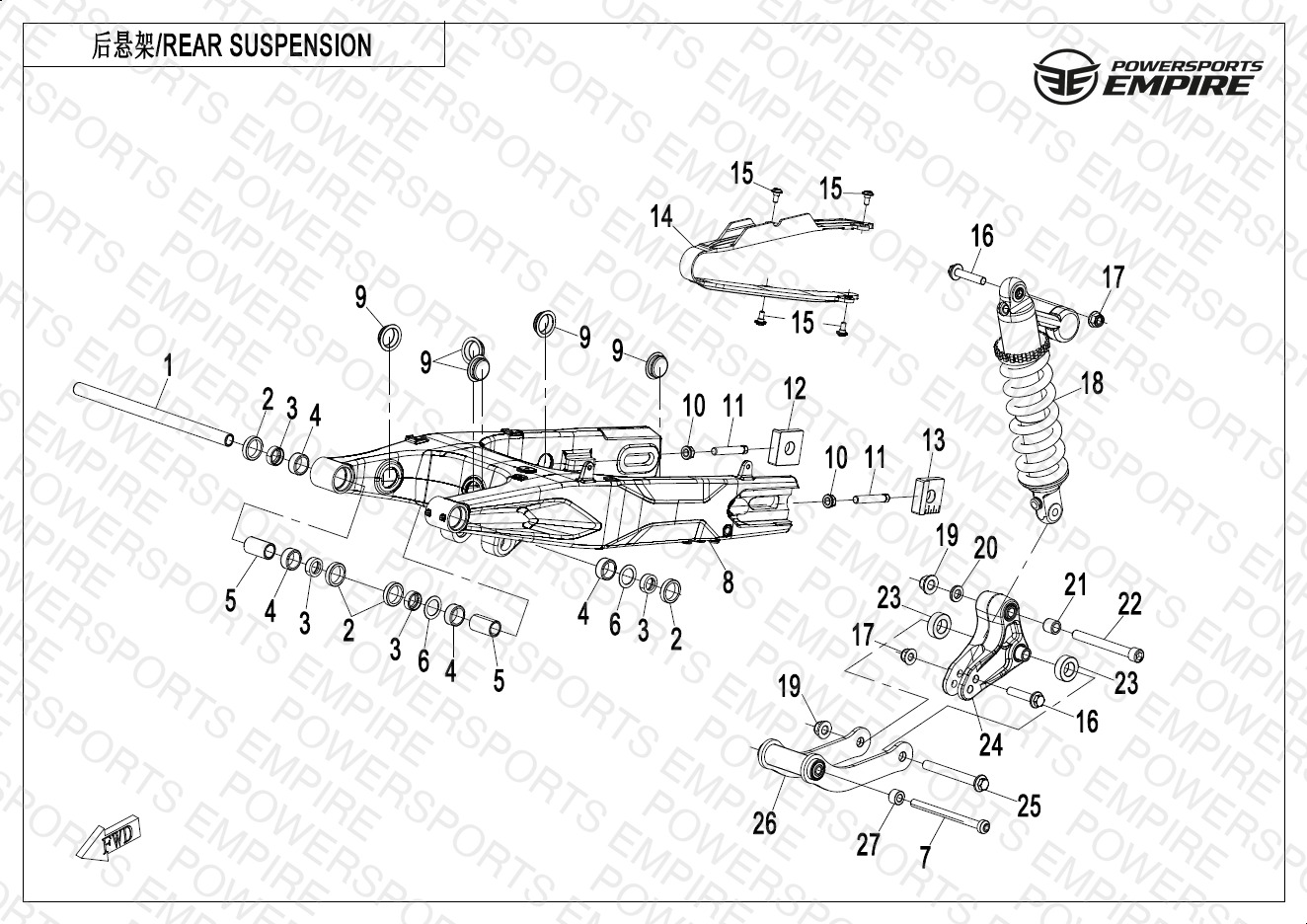

F06 — REAR SUSPENSION
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 6AQV-060007-1000 REAR AXLE | REAR AXLE | 1 | $36.79 | Available to order | 1 |
| 02 | 6WWV-060030-5000-10 OIL SEAL | OIL SEAL | 2 | $3.44 | Available to order | 2 |
| 03 | 6WWV-060002-5000 BUSHING, REAR SWING ARM | BUSHING, REAR SWING ARM | 2 | $6.89 | Available to order | 2 |
| 04 | 30403-02200 BEARING HK2212, NEEDLE | BEARING HK2212, NEEDLE | 1 | $4.59 | Available to order | 1 |
| 05 | 6WWV-060003-5000 LINER, REAR SWING ARM | LINER, REAR SWING ARM | 2 | $10.34 | Out of Stock | Notify Me |
| 06 | 6WWV-060004-5000 WASHER, REAR SWING ARM | WASHER, REAR SWING ARM | 2 | $3.44 | Available to order | 2 |
| 07 | 6AQV-060009-1002 BOLT M10x130, TIE ROD | BOLT M10x130, TIE ROD | 1 | $8.04 | Available to order | 1 |
| 08 | 6AQV-060301-6001 REAR FORK | REAR FORK | 1 | $626.99 | Out of Stock | Notify Me |
| 09 | 6NT1-060003 DUST CAP, SMALL | DUST CAP, SMALL | 1 | $2.29 | Available to order | 1 |
| 10 | 6L30-060013 LOCK NUT, CHAIN ADJUSTER | LOCK NUT, CHAIN ADJUSTER | 1 | $1.25 | Out of Stock | Notify Me |
| 11 | 6KMV-060002-M500 CHAIN ADJUSTING BOLT | CHAIN ADJUSTING BOLT | 1 | $3.44 | Available to order | 1 |
| 12 | 6AQV-060004-6000 RH CHAIN ADJUSTER | RH CHAIN ADJUSTER | 1 | $22.99 | Available to order | 1 |
| 13 | 6AQV-060003-6000 LH CHAIN ADJUSTER | LH CHAIN ADJUSTER | 1 | $22.99 | Available to order | 1 |
| 14 | 6AQV-060002-6001 CHAIN GUARD | CHAIN GUARD | 1 | $22.99 | Available to order | 1 |
| 15 | 6WWV-046602-5000 INNER HEX STEPPED SCREW M6x15 | INNER HEX STEPPED SCREW M6x15 | 6 | $1.25 | Available to order | 6 |
| 16 | 6AQV-060004-1002 BOLT M10x50, REAR SHOCK ABSORBER | BOLT M10x50, REAR SHOCK ABSORBER | 2 | $4.59 | Out of Stock | Notify Me |
| 17 | 30204-102110 NUT M10 | NUT M10 | 6 | — | Obsolete | View Details |
| 18 | 6AQV-060100-6000-M1 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER | 1 | $802.99 | Available to order | 1 |
| 19 | 30204-122810 NUT M12x1.25 | NUT M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 20 | 6AQV-060304-3000 WASHER | WASHER | 1 | $2.29 | Available to order | 1 |
| 21 | 6AQV-060302-3000 BUSHING | BUSHING | 1 | $4.59 | Available to order | 1 |
| 22 | 6AQV-060303-3000 A-SHAPE SWING ARM BOLT | A-SHAPE SWING ARM BOLT | 1 | $6.89 | Available to order | 1 |
| 23 | 6AQV-060504-1000 RETAINER | RETAINER | 1 | $3.44 | Out of Stock | Notify Me |
| 24 | 6AQV-060500-6000 A-SHAPE SWING ARM | A-SHAPE SWING ARM | 1 | $219.99 | Out of Stock | Notify Me |
| 25 | 6AQV-060307-3000 A-SHAPE SWING ARM BOLT | A-SHAPE SWING ARM BOLT | 1 | $6.89 | Available to order | 1 |
| 26 | 6AQV-060600-6000 TIE-ROD ASSY | TIE-ROD ASSY | 1 | $68.99 | Available to order | 1 |
| 27 | 6AQV-060005-1000 SPACER, TIE ROD | SPACER, TIE ROD | 1 | $4.59 | Available to order | 1 |
