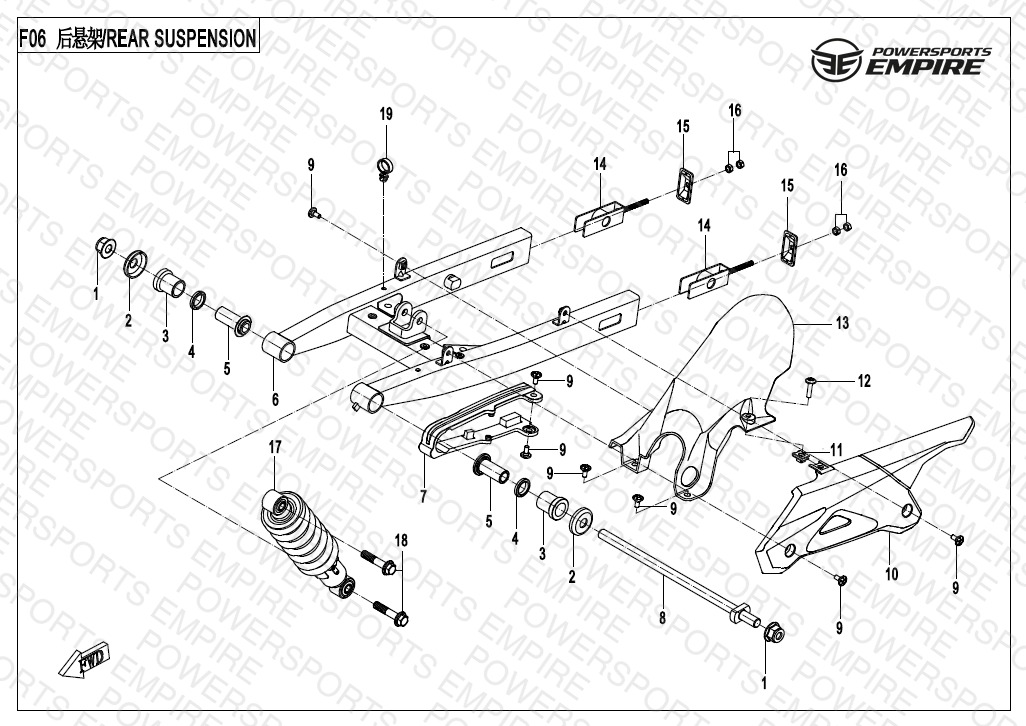

F06 — REAR SUSPENSION
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30204-143810 NUT M14x1.5 | NUT M14x1.5 M14x1.5 | 6 | $2.29 | Available to order | 6 |
| 02 | 6KMV-060010-8001 DUST BOOT COVER 1, REAR SWING ARM | DUST BOOT COVER 1, REAR SWING ARM | 1 | $6.89 | Available to order | 1 |
| 03 | 6100-060008 OUTER COLLAR, REAR SWINGARM | OUTER COLLAR, REAR SWINGARM | 1 | $28.74 | Out of Stock | Notify Me |
| 04 | 6090-060005 DUST RING | DUST RING | 1 | $2.29 | Out of Stock | Notify Me |
| 05 | 6KJ0-060004-00001 RH INNER BUSHING, REAR FORK | RH INNER BUSHING, REAR FORK | 1 | $13.79 | Out of Stock | Notify Me |
| 06 | 6FI3-060100 REAR FORK | REAR FORK | 1 | $114.99 | Available to order | 1 |
| 07 | 6FI3-060001 CHAIN GUARD | CHAIN GUARD | 1 | $22.99 | Available to order | 1 |
| 08 | 6FI3-060007 SHAFT, REAR SWING ARM | SHAFT, REAR SWING ARM | 1 | $20.69 | Available to order | 1 |
| 09 | 5BY0-000303 SCREW M6x17.5 | SCREW M6x17.5 | 6 | $2.29 | Available to order | 6 |
| 10 | 6FI3-060002 CHAIN COVER | CHAIN COVER | 1 | $16.09 | Available to order | 1 |
| 11 | 8030-040800-00001 NUT CLIP M6 | NUT CLIP M6 M6 | 6 | $2.29 | Available to order | 6 |
| 12 | 6GU#-000201-6000 INNER HEX SCREW M6x25 | INNER HEX SCREW M6x25 | 1 | $2.29 | Available to order | 1 |
| 13 | 6FI3-060003 REAR INNER FENDER | REAR INNER FENDER | 1 | $22.99 | Available to order | 1 |
| 14 | 6FI3-060020 CHAIN ADJUSTER | CHAIN ADJUSTER | 1 | $6.89 | Available to order | 1 |
| 15 | 6FI3-060004 REAR PLATE, CHAIN ADJUSTER | REAR PLATE, CHAIN ADJUSTER | 1 | $8.04 | Available to order | 1 |
| 16 | 30200-060810 NUT | NUT M6 | 6 | $1.25 | Available to order | 6 |
| 17 | 6FI3-060200 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER | 1 | $114.99 | Available to order | 1 |
| 18 | 30006-102050810 BOLT M10x1.25x50 | BOLT M10x1.25x50 M10x1.25x50 | 6 | $2.29 | Available to order | 6 |
| 19 | A000-050015 CLAMP, FRONT BRAKE HOSE | CLAMP, FRONT BRAKE HOSE | 1 | $1.25 | Available to order | 1 |
