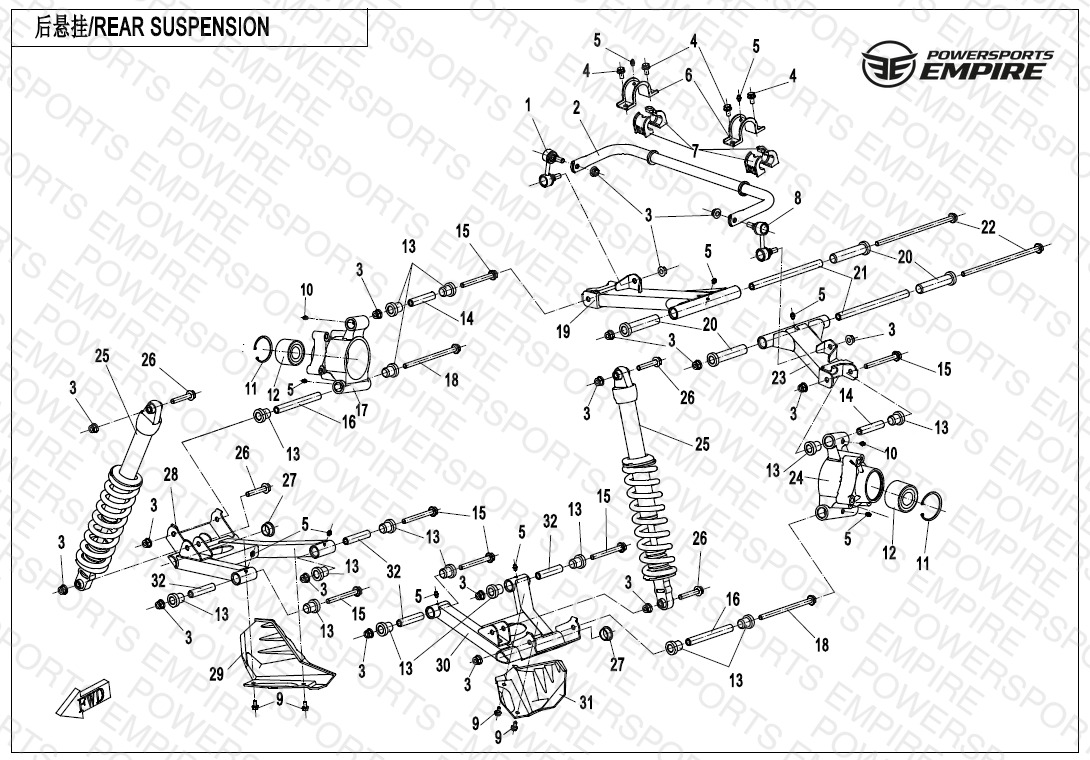

F06-B — REAR SUSPENSION
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9010-060800-20000 SWAY BAR LINK (RH) | SWAY BAR LINK (RH) CCVI | 1 | $57.49 | Available to order | 1 |
| 02 | 5BWA-060610 REAR STABILIZER BAR | REAR STABILIZER BAR | 1 | $91.99 | Out of Stock | Notify Me |
| 03 | 30204-080810 LOCK NUT | LOCK NUT M8 | 6 | $1.25 | Available to order | 6 |
| 04 | 30006-080016810 BOLT M8X16 | BOLT M8X16 M8x16 | 6 | $1.25 | Available to order | 6 |
| 05 | 3121401 GREASE ZERK M6 | GREASE ZERK M6 | 1 | $3.44 | Available to order | 1 |
| 06 | 9030-060002 RETAINING COVER | RETAINING COVER | 1 | $12.64 | Available to order | 1 |
| 07 | 7000-060003 SWAY BAR BUSHING | SWAY BAR BUSHING | 1 | $9.19 | Available to order | 1 |
| 08 | 9010-060700-20000 SWAY BAR LINK (LH) | SWAY BAR LINK (LH) CCVI | 1 | $57.49 | Available to order | 1 |
| 09 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 10 | 3121400 GREASE ZERK | GREASE ZERK 90 DEGREE | 1 | $3.44 | Available to order | 1 |
| 11 | 30800-06300 ELASTIC RETAINER | ELASTIC RETAINER 63 | 6 | $3.44 | Available to order | 6 |
| 12 | 30499-03081 BEARING, HUB | BEARING, HUB DAC3063W | 1 | $57.49 | Available to order | 1 |
| 13 | 9060-050003 SHORT BUSH,SUSPENSION ARM | SHORT BUSH,SUSPENSION ARM | 2 | $12.64 | Available to order | 2 |
| 14 | 9060-060701-10002 UPPER MIDDLE SPACER, REAR BEARING CARRIER | UPPER MIDDLE SPACER, REAR BEARING CARRIER | 1 | $6.89 | Available to order | 1 |
| 15 | 30001-102095110 BOLT M10X1.25X95 | BOLT M10X1.25X95 M10x1.25x95 | 6 | $5.74 | Available to order | 6 |
| 16 | 9060-060702-10002 LOWER MIDDLE SPACER, REAR BEARING CARRIER | LOWER MIDDLE SPACER, REAR BEARING CARRIER | 1 | $11.49 | Available to order | 1 |
| 17 | 5BWB-060703-00001 REAR AXLE SUPPORT | REAR AXLE SUPPORT | 1 | $230.99 | Available to order | 1 |
| 18 | 9060-060704 MOUNTING SHAFT, REAR WHEEL SHAFT SUPPORT | MOUNTING SHAFT, REAR WHEEL SHAFT SUPPORT | 1 | $10.34 | Available to order | 1 |
| 19 | 5BWA-060110 REAR UPPER ARM,RH, BLACK | REAR UPPER ARM,RH, BLACK BLACK | 1 | $103.49 | Available to order | 1 |
| 20 | 9060-050002 LONG BUSH,SUSPENSION ARM | LONG BUSH,SUSPENSION ARM | 2 | $19.54 | Available to order | 2 |
| 21 | 9060-060101-00002 MIDDLE SPACER, REAR UPPER SWING ARM | MIDDLE SPACER, REAR UPPER SWING ARM | 1 | $11.49 | Available to order | 1 |
| 22 | 4060-060101 MOUNTING SHAFT, REAR ARM | MOUNTING SHAFT, REAR ARM | 1 | $12.64 | Available to order | 1 |
| 23 | 5BWA-060310-0B001 REAR UPPER A ARM, LH | REAR UPPER A ARM, LH BLACK | 1 | $91.99 | Obsolete | View Details |
| 24 | 5BWB-060803 RH SUPPORT, REAR WHEEL SHAFT | RH SUPPORT, REAR WHEEL SHAFT | 1 | $230.99 | Obsolete | View Details |
| 25 | 5BWA-060500-10001 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER YIT | 1 | $505.99 | Out of Stock | Notify Me |
| 26 | 30006-102055810 BOLT M10X1.25X55 | BOLT M10X1.25X55 M10x1.25x55 | 6 | $2.29 | Available to order | 6 |
| 27 | 9060-060002 PLUG, REAR LOWER ARM | PLUG, REAR LOWER ARM | 2 | $5.74 | Available to order | 2 |
| 28 | 5BWA-060210 REAR LOWER ARM,RH, BLACK | REAR LOWER ARM,RH, BLACK BLACK | 1 | $114.99 | Available to order | 1 |
| 29 | 5BWA-060201 GUARD,CV SHAFT | GUARD,CV SHAFT | 1 | $12.64 | Obsolete | View Details |
| 30 | 5BWA-060410 REAR LOWER ARM,LH, BLACK | REAR LOWER ARM,LH, BLACK BLACK | 1 | $103.49 | Available to order | 1 |
| 31 | 5BWA-060401 GUARD,CV SHAFT | GUARD,CV SHAFT | 1 | $12.64 | Obsolete | View Details |
| 32 | 9060-060201-00002 MIDDLE SPACER, REAR LOWER SWING ARM | MIDDLE SPACER, REAR LOWER SWING ARM | 1 | $6.89 | Available to order | 1 |
