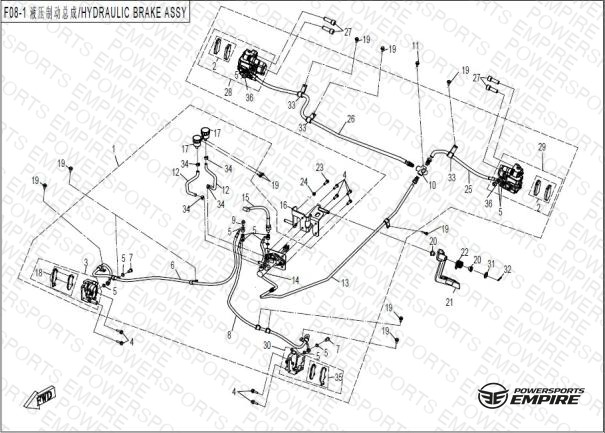

F08-1 — HYDRAULIC BRAKE ASSY
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5BWA-080100-10000 HYDRAULIC BRAKE ASSY | HYDRAULIC BRAKE ASSY SINTERED | 1 | $659.99 | Available to order | 1 |
| 02 | 7000-0801A0 REAR BRAKE PAD | REAR BRAKE PAD STANDARD | 1 | $68.99 | Available to order | 1 |
| 03 | 4060-080800 FRONT CALIPER,RH | FRONT CALIPER,RH STANDARD | 1 | $329.99 | Available to order | 1 |
| 03-01 | 7000-080800 FRONT CALIPER,RH SILVER | FRONT CALIPER,RH SILVER OPTIONAL,SINTERED | 1 | $329.99 | Available to order | 1 |
| 04 | 30006-080025810 BOLT M8X25 | BOLT M8X25 | 6 | $1.25 | Available to order | 6 |
| 05 | 5190-080104 SEAL WASHER | SEAL WASHER | 2 | $2.29 | Available to order | 2 |
| 06 | 5BWA-080110 RH, LOWER BRAKE HOSE,FRONT | RH, LOWER BRAKE HOSE,FRONT | 1 | $68.99 | Available to order | 1 |
| 07 | 7000-080103 CLAMP BOLT | CLAMP BOLT | 1 | $3.44 | Available to order | 1 |
| 08 | 5BWA-080120 LH&LOWER BRAKE HOSE,FRONT | LH&LOWER BRAKE HOSE,FRONT | 1 | $57.49 | Obsolete | View Details |
| 09 | 9010-080101-B000 BANJO BOLT | BANJO BOLT | 6 | $3.44 | Available to order | 6 |
| 10 | 7000-080102 T-JOINT | T-JOINT | 1 | $34.49 | Available to order | 1 |
| 11 | 30006-060030810 BOLT M6x30 | BOLT M6x30 | 6 | $1.25 | Available to order | 6 |
| 12 | 9060-080101 FLUID HOSE, BRAKE FLUID RESERVOIR | FLUID HOSE, BRAKE FLUID RESERVOIR | 1 | $10.34 | Available to order | 1 |
| 13 | 7000-080130 FRONT BRAKE HOSE,REAR | FRONT BRAKE HOSE,REAR | 1 | $91.99 | Obsolete | View Details |
| 14 | 4060-080200 MASTER CYLINDER | MASTER CYLINDER | 1 | $186.99 | Out of Stock | Notify Me |
| 15 | 7020-080160-1000 SWITCH,REAR BRAKE | SWITCH,REAR BRAKE | 1 | $68.99 | Available to order | 1 |
| 16 | 9060-081200-1000 FIXING BRACKET, BRAKE PEDAL | FIXING BRACKET, BRAKE PEDAL | 1 | $57.49 | Available to order | 1 |
| 17 | 9030-080110 BRAKE FLUID RESERVOIR | BRAKE FLUID RESERVOIR | 1 | $19.54 | Out of Stock | Notify Me |
| 18-1 | 7000-0808A0 FRONT BRAKE PAD,RH | FRONT BRAKE PAD,RH OPTIONAL,SINTERED PAD | 1 | $68.99 | Available to order | 1 |
| 18 | 9060-080810 FRONT BRAKE PAD, RH | FRONT BRAKE PAD, RH STANDARD | 1 | $45.99 | Available to order | 1 |
| 19 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 20 | 9060-105002 BUSHING | BUSHING | 2 | $4.59 | Out of Stock | Notify Me |
| 21 | 9060-081300 BRAKE PEDAL | BRAKE PEDAL | 1 | $80.49 | Obsolete | View Details |
| 22 | 9060-080003 RETURN SPRING | RETURN SPRING | 1 | $5.74 | Available to order | 1 |
| 23 | 30107-060040440 SCREW, M6X40 | SCREW, M6X40 | 6 | $1.14 | Obsolete | View Details |
| 24 | 30200-060810 NUT | NUT | 6 | $1.25 | Available to order | 6 |
| 25 | 5BWA-080140 LH&LOWER BRAKE HOSE,REAR | LH&LOWER BRAKE HOSE,REAR | 1 | $45.99 | Available to order | 1 |
| 26 | 5BWA-080160 RH&LOWER BRAKE HOSE,REAR | RH&LOWER BRAKE HOSE,REAR | 1 | $57.49 | Available to order | 1 |
| 27 | 30102-102035810 SCREW M10X35 | SCREW M10X35 | 6 | $2.29 | Available to order | 6 |
| 28 | 7000-080170 REAR CALIPER,RH SILVER | REAR CALIPER,RH SILVER STANDARD | 1 | $329.99 | Available to order | 1 |
| 28-1 | 7000-080170-10000 REAR CALIPER,RH RED | REAR CALIPER,RH RED OPTIONAL,SINTERED | 1 | $329.99 | Available to order | 1 |
| 29 | 7000-080150 REAR CALIPER,LH SILVER | REAR CALIPER,LH SILVER STANDARD | 1 | $329.99 | Available to order | 1 |
| 29-1 | 7000-080150-10000 REAR CALIPER,LH RED | REAR CALIPER,LH RED OPTIONAL,SINTERED | 1 | $329.99 | Obsolete | View Details |
| 30 | 4060-080900 FRONT CALIPER,LH | FRONT CALIPER,LH STANDARD | 1 | $329.99 | Available to order | 1 |
| 30-1 | 7000-080900 FRONT CALIPER,LH SILVER | FRONT CALIPER,LH SILVER OPINIONAL,SINTERED | 1 | $329.99 | Available to order | 1 |
| 31 | 30306-120142 WASHER | WASHER | 6 | $1.25 | Obsolete | View Details |
| 32 | 30903-0322210 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 33 | 9010-080104 CIRCLIP | CIRCLIP | 6 | $5.74 | Available to order | 6 |
| 34 | 9010-080405 CLAMP | CLAMP | 6 | $3.44 | Available to order | 6 |
| 35-1 | 7000-0809A0 FRONT BRAKE PAD,LH | FRONT BRAKE PAD,LH OPTIONAL,SINTERED PAD | 1 | $68.99 | Available to order | 1 |
| 35 | 9060-080910 FRONT BRAKE PAD, LH | FRONT BRAKE PAD, LH STANDARD | 1 | $45.99 | Available to order | 1 |
| 36 | 9030-080103 BOLT, FLUID BYPASS | BOLT, FLUID BYPASS | 6 | $3.44 | Available to order | 6 |
