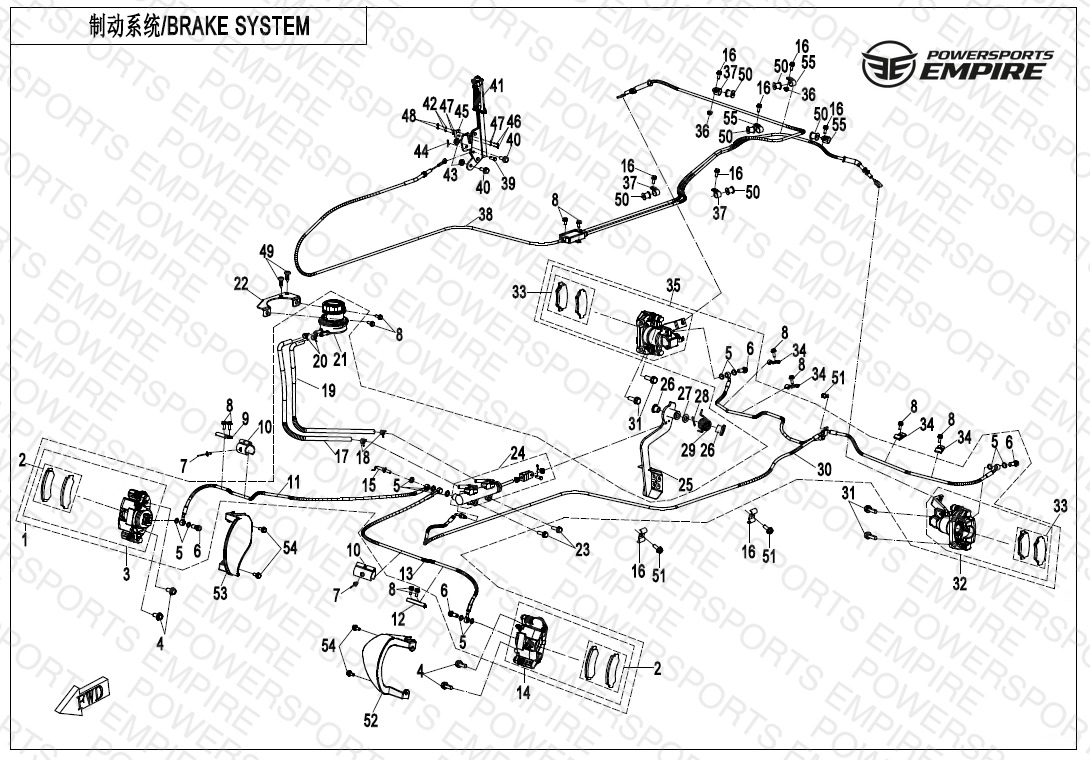

F08 — BRAKE SYSTEM
Parts (55)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5SYV-081000-6301 BRAKE ASSY | BRAKE ASSY | 1 | $1759.99 | Out of Stock | Notify Me |
| 02 | 5HYV-0811A0 FRONT BRAKE PAD ASSY | FRONT BRAKE PAD ASSY | 1 | $91.99 | Available to order | 1 |
| 03 | 9AWA-081200-4000 FRONT RH BRAKE CALIPER | FRONT RH BRAKE CALIPER | 1 | $175.99 | Available to order | 1 |
| 04 | 30006-102025810 BOLT M10X1.25X25 | BOLT M10X1.25X25 | 6 | $2.29 | Available to order | 6 |
| 05 | 901B-080102 WASHER | WASHER | 6 | — | Obsolete | View Details |
| 06 | 7020-081004 BANJO BOLT | BANJO BOLT | 6 | $3.44 | Available to order | 6 |
| 07 | 30902-0400820 POP RIVET | POP RIVET | 6 | — | Obsolete | View Details |
| 08 | 30006-060016810 BOLT | BOLT | 6 | $1.25 | Available to order | 6 |
| 09 | 5HY0-080004 CLIP, FRONT BRAKE LINE, RH | CLIP, FRONT BRAKE LINE, RH | 1 | $2.29 | Available to order | 1 |
| 10 | 9AWA-080001 PLASTIC CLIP | PLASTIC CLIP | 1 | $3.44 | Available to order | 1 |
| 11 | 5HYV-081020-2500 RH FRONT BRAKE FLUID HOSE | RH FRONT BRAKE FLUID HOSE | 1 | $57.49 | Available to order | 1 |
| 12 | 5HY0-080003 CLIP, FRONT BRAKE LINE, LH | CLIP, FRONT BRAKE LINE, LH | 1 | $2.29 | Available to order | 1 |
| 13 | 5HYV-081010-2500 LH FRONT BRAKE FLUID HOSE | LH FRONT BRAKE FLUID HOSE | 1 | $57.49 | Available to order | 1 |
| 14 | 9AWA-081100-4000 FRONT LH BRAKE CALIPER | FRONT LH BRAKE CALIPER | 1 | $175.99 | Available to order | 1 |
| 15 | 5HY0-080010-20000 BRAKE SWITCH ASSY | BRAKE SWITCH ASSY | 1 | $45.99 | Available to order | 1 |
| 16 | 5BY0-080001 CLIP I, LH OIL HOSE | CLIP I, LH OIL HOSE | 1 | $5.74 | Available to order | 1 |
| 17 | 5UWB-081002 BRAKE RESERVOIR HOSE 2 | BRAKE RESERVOIR HOSE 2 | 1 | $12.64 | Available to order | 1 |
| 18 | 7020-081002 PIPE CLIP | PIPE CLIP | 1 | $2.29 | Available to order | 1 |
| 19 | 5UWB-081001 BRAKE RESERVOIR HOSE 1 | BRAKE RESERVOIR HOSE 1 | 1 | $12.64 | Available to order | 1 |
| 20 | 9010-080405 CLAMP | CLAMP | 6 | $3.44 | Available to order | 6 |
| 21 | 5BW1-080150-20000 RESERVOIR ASSY | RESERVOIR ASSY | 1 | $68.99 | Available to order | 1 |
| 22 | 5UWB-030110 BRACKET, BRAKE RESERVOIR | BRACKET, BRAKE RESERVOIR | 1 | $8.04 | Available to order | 1 |
| 23 | 30006-080025810 BOLT M8X25 | BOLT M8X25 | 6 | $1.25 | Available to order | 6 |
| 24 | 5SYV-081100-6000 MASTER CYLINDER | MASTER CYLINDER | 1 | $164.99 | Available to order | 1 |
| 25 | 5HYV-082000-1201 BRAKE PEDAL | BRAKE PEDAL | 1 | $25.29 | Available to order | 1 |
| 26 | 9060-105002 BUSHING | BUSHING | 2 | $4.59 | Out of Stock | Notify Me |
| 27 | 30306-120112 PLAIN WASHER | PLAIN WASHER | 6 | $1.25 | Out of Stock | Notify Me |
| 28 | 30903-0322210 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 29 | 9060-080003 RETURN SPRING | RETURN SPRING | 1 | $5.74 | Available to order | 1 |
| 30 | 5SYV-081030-6000 REAR BRAKE FLUID HOSE | REAR BRAKE FLUID HOSE | 1 | $241.99 | Out of Stock | Notify Me |
| 31 | 30006-102030810 BOLT M10X30 | BOLT M10X30 | 6 | $2.29 | Available to order | 6 |
| 32 | 5HYV-081050-2G00 REAR LH BRAKE CALIPER | REAR LH BRAKE CALIPER | 1 | $329.99 | Available to order | 1 |
| 33 | 5HYV-0813A0 REAR BRAKE PAD ASSY | REAR BRAKE PAD ASSY | 1 | $80.49 | Available to order | 1 |
| 34 | 5HY0-080002 CLIP, REAR BRAKE LINE | CLIP, REAR BRAKE LINE | 1 | $5.74 | Available to order | 1 |
| 35 | 5HYV-081060-2G00 REAR RH BRAKE CALIPER | REAR RH BRAKE CALIPER | 1 | $329.99 | Available to order | 1 |
| 36 | 30202-060110 NUT M6 | NUT M6 | 6 | — | Obsolete | View Details |
| 37 | 9AWA-080004 FIXING CLIP | FIXING CLIP | 1 | $4.59 | Out of Stock | Notify Me |
| 38 | 5SYV-083200-6000 PARKING CABLE | PARKING CABLE | 1 | $114.99 | Available to order | 1 |
| 39 | 30904-0602010 SHAFT, PIN | SHAFT, PIN | 6 | $5.74 | Available to order | 6 |
| 40 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 41 | 5HYV-083100-1000 PARKING BRAKE LEVER | PARKING BRAKE LEVER | 1 | $114.99 | Available to order | 1 |
| 42 | 30303-020900 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 43 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 44 | 30903-0162010 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 45 | 7000-082210-20000 MICRO SWITCH | MICRO SWITCH | 1 | $25.29 | Available to order | 1 |
| 46 | 30105-020016700 SCREW M2X16 | SCREW M2X16 | 6 | $1.25 | Available to order | 6 |
| 47 | 30306-020800 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 48 | 30200-020500 NUT M2 | NUT M2 | 6 | $1.25 | Available to order | 6 |
| 49 | 30110-421130010 SELF TAPPING SCREW | SELF TAPPING SCREW | 6 | $3.44 | Available to order | 6 |
| 50 | 9030-180008 RUBBERSLEEVE | RUBBERSLEEVE | 6 | $1.14 | Available to order | 6 |
| 51 | 30102-060016810 SCREW | SCREW | 6 | $1.25 | Available to order | 6 |
| 52 | 5BY0-080007 GUARD, FRONT LH BRAKE CALIPER | GUARD, FRONT LH BRAKE CALIPER | 1 | $6.89 | Available to order | 1 |
| 53 | 5BY0-080008 GUARD, FRONT RH BRAKE CALIPER | GUARD, FRONT RH BRAKE CALIPER | 1 | $6.89 | Available to order | 1 |
| 54 | 8010-000004 BOLT M6x14 | BOLT M6x14 | 6 | $1.25 | Available to order | 6 |
| 55 | 5HYV-080410-1C00 WIRE CLIP, OIL HOSE | WIRE CLIP, OIL HOSE | 1 | $3.44 | Available to order | 1 |
