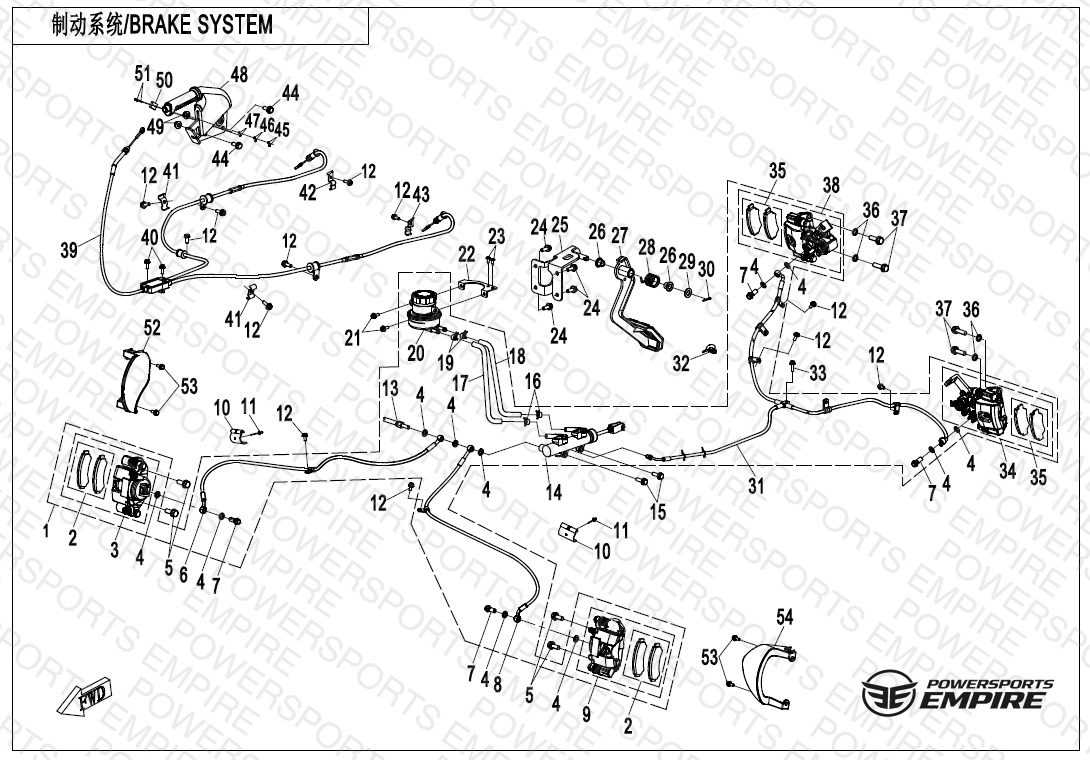

F08 — BRAKE SYSTEM
Parts (54)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5BYA-081000 HYDRAULIC BRAKE ASSY. | HYDRAULIC BRAKE ASSY. | 1 | $1099.99 | Obsolete | View Details |
| 02 | 9AWA-0811A0 BRAKE PAD SET | BRAKE PAD SET | 1 | — | Obsolete | View Details |
| 03 | 9AWV-081200-4000 FRONT RH BRAKE CALIPER | FRONT RH BRAKE CALIPER | 1 | $252.99 | Available to order | 1 |
| 04 | 0010-060010 WASHER 10 | WASHER 10 80 | 6 | $3.44 | Available to order | 6 |
| 05 | 30006-102025810 BOLT M10X1.25X25 | BOLT M10X1.25X25 M10x1.25x25 | 6 | $2.29 | Available to order | 6 |
| 06 | 5BYA-081030 RH FRONT BRAKE HOSE | RH FRONT BRAKE HOSE | 1 | $57.49 | Available to order | 1 |
| 07 | 7020-081004 BANJO BOLT | BANJO BOLT | 6 | $3.44 | Available to order | 6 |
| 08 | 5BYA-081010 LH FRONT BRAKE HOSE | LH FRONT BRAKE HOSE | 1 | $68.99 | Available to order | 1 |
| 09 | 9AWV-081100-4000 FRONT LH BRAKE CALIPER | FRONT LH BRAKE CALIPER | 1 | $252.99 | Available to order | 1 |
| 10 | 5BY0-080002 PLASTIC CLASP | PLASTIC CLASP | 1 | $2.29 | Out of Stock | Notify Me |
| 11 | 30902-0401320 POP RIVET | POP RIVET 4x8 | 6 | $1.25 | Available to order | 6 |
| 12 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 13 | 5HY0-080010 HYDRAULIC BRAKE SWITCH | HYDRAULIC BRAKE SWITCH | 1 | $68.99 | Available to order | 1 |
| 14 | 5BWB-081100-00002 MASTER CYLINDER | MASTER CYLINDER | 1 | $186.99 | Available to order | 1 |
| 15 | 30006-080025810 BOLT M8X25 | BOLT M8X25 M8vó25 | 6 | $1.25 | Available to order | 6 |
| 16 | 7020-081002 PIPE CLIP | PIPE CLIP | 1 | $2.29 | Available to order | 1 |
| 17 | 5BY0-081001 RESERVOIR HOSE 1 | RESERVOIR HOSE 1 | 1 | $34.49 | Out of Stock | Notify Me |
| 18 | 5BY0-081002 RESERVOIR HOSE 2 | RESERVOIR HOSE 2 | 1 | $34.49 | Out of Stock | Notify Me |
| 19 | 9010-080405 CLAMP | CLAMP | 6 | $3.44 | Available to order | 6 |
| 20 | 5BW1-080150-10000 BRAKE RESERVOIR | BRAKE RESERVOIR | 1 | $57.49 | Available to order | 1 |
| 21 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 22 | 5UWB-030110 BRACKET, BRAKE RESERVOIR | BRACKET, BRAKE RESERVOIR | 1 | $8.04 | Available to order | 1 |
| 23 | 30110-480130010 TAPPING SCREW ST4.8x13 | TAPPING SCREW ST4.8x13 ST4.8x13 | 6 | $2.29 | Obsolete | View Details |
| 24 | 30006-080025870 BOLT M8x25 | BOLT M8x25 M8x25 | 6 | $2.29 | Available to order | 6 |
| 25 | 5BY0-080010 FIXED BRACKET, FOOT PEDAL | FIXED BRACKET, FOOT PEDAL | 1 | $45.99 | Available to order | 1 |
| 26 | 9060-105002 BUSHING | BUSHING | 2 | $4.59 | Out of Stock | Notify Me |
| 27 | 5HY0-082000 BRAKE PEDAL | BRAKE PEDAL | 1 | $68.99 | Available to order | 1 |
| 28 | 9060-080003 RETURN SPRING | RETURN SPRING | 1 | $5.74 | Available to order | 1 |
| 29 | 30306-120112 PLAIN WASHER | PLAIN WASHER 12 | 6 | $1.25 | Out of Stock | Notify Me |
| 30 | 30903-0322210 COTTER PIN | COTTER PIN 3.2x22 | 6 | $1.25 | Available to order | 6 |
| 31 | 5BY0-081020 REAR BRAKE FLUID HOSE | REAR BRAKE FLUID HOSE | 1 | $252.99 | Available to order | 1 |
| 32 | 7030-150005 TIE BAND | TIE BAND | 6 | $3.44 | Available to order | 6 |
| 33 | 30006-060020870 BOLT M6x20 | BOLT M6x20 M6x20 | 6 | $2.29 | Available to order | 6 |
| 34 | 5BY0-081060 REAR BRAKE CALIPER | REAR BRAKE CALIPER | 1 | $329.99 | Available to order | 1 |
| 35 | 7020-0810A0 REAR BRAKE PAD | REAR BRAKE PAD | 1 | — | Obsolete | View Details |
| 36 | 30303-100112 SPRING WASHER 10 | SPRING WASHER 10 | 6 | $1.25 | Available to order | 6 |
| 37 | 30006-102035810 BOLT, M10X1.2X35 | BOLT, M10X1.2X35 M10x1.25x35 | 6 | $2.29 | Out of Stock | Notify Me |
| 38 | 5BY0-081050 REAR BRAKE CALIPER | REAR BRAKE CALIPER | 1 | $329.99 | Available to order | 1 |
| 39 | 5BY0-083100 PARKING BRAKE CABLE | PARKING BRAKE CABLE | 1 | $80.49 | Available to order | 1 |
| 40 | 30006-050016810 BOLT M5x16 | BOLT M5x16 M5x16 | 6 | $1.25 | Available to order | 6 |
| 41 | 5BY0-080001 CLIP I, LH OIL HOSE | CLIP I, LH OIL HOSE | 1 | $5.74 | Available to order | 1 |
| 42 | 5BY0-080006 CLIP III, RH OIL HOSE | CLIP III, RH OIL HOSE | 1 | $5.74 | Available to order | 1 |
| 43 | 5BY0-080005 CLIP III, LH OIL HOSE | CLIP III, LH OIL HOSE | 1 | $5.74 | Available to order | 1 |
| 44 | 30006-080020810 BOLT M8x20 | BOLT M8x20 M8x20 | 6 | $1.25 | Available to order | 6 |
| 45 | 30200-020500 NUT M2 | NUT M2 M2 | 6 | $1.25 | Available to order | 6 |
| 46 | 30303-020900 WASHER | WASHER 2 | 6 | $1.25 | Available to order | 6 |
| 47 | 30306-020800 WASHER | WASHER 2 | 6 | $1.25 | Available to order | 6 |
| 48 | 5BY0-083200 PARKING BRAKE ASSY | PARKING BRAKE ASSY | 1 | $131.99 | Obsolete | View Details |
| 49 | 30204-080810 LOCK NUT | LOCK NUT M8 | 6 | $1.25 | Available to order | 6 |
| 50 | 7000-082210-10000 PARKING SWITCH | PARKING SWITCH SUMITOMO PLUG | 1 | $34.49 | Available to order | 1 |
| 51 | 30105-020016700 SCREW M2X16 | SCREW M2X16 M2x16 | 6 | $1.25 | Available to order | 6 |
| 52 | 5BY0-080008 GUARD, FRONT RH BRAKE CALIPER | GUARD, FRONT RH BRAKE CALIPER | 1 | $6.89 | Available to order | 1 |
| 53 | 8010-000004 BOLT M6x14 | BOLT M6x14 M6x14 | 6 | $1.25 | Available to order | 6 |
| 54 | 5BY0-080007 GUARD, FRONT LH BRAKE CALIPER | GUARD, FRONT LH BRAKE CALIPER | 1 | $6.89 | Available to order | 1 |
