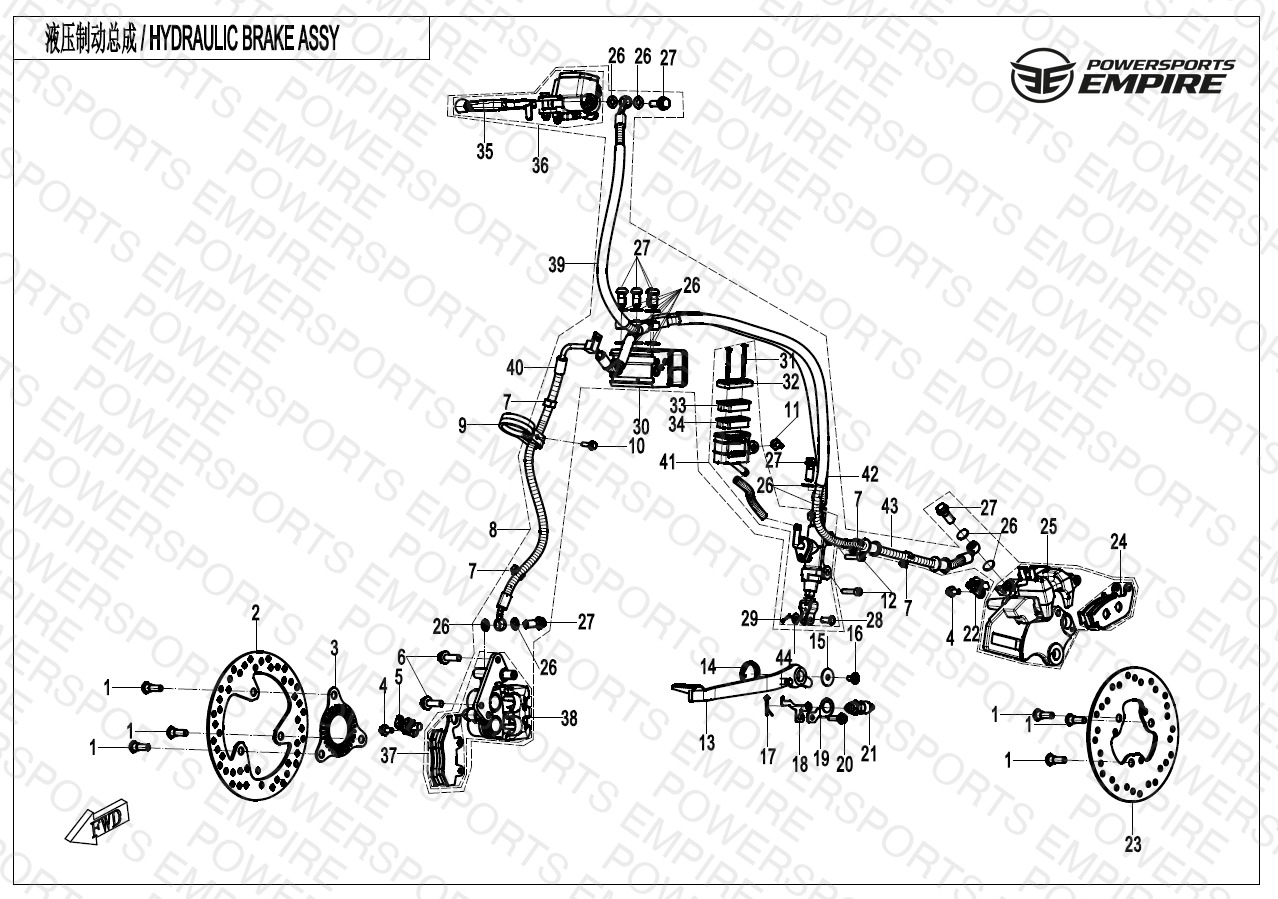

F08-A — MAB BRAKE ASSY
Parts (43)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 8010-080118 BOLT, BRAKE DISC | BOLT, BRAKE DISC | 6 | $1.25 | Available to order | 6 |
| 02 | 6FI3-080001 FRONT BRAKE DISC | FRONT BRAKE DISC | 1 | $34.49 | Available to order | 1 |
| 03 | 6FIV-080003-7000 FRONT GEAR RING | FRONT GEAR RING | 1 | $12.64 | Available to order | 1 |
| 04 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 05 | 6FIV-080004-7000-M1 SPEED SENSOR | SPEED SENSOR | 1 | $39.09 | Available to order | 1 |
| 06 | 30102-080025870 INNER HEX SCREW M8x25 | INNER HEX SCREW M8x25 | 6 | $3.44 | Available to order | 6 |
| 07 | EAEV-080006-1000 WIRE CLIP, BRAKE FLUID HOSE | WIRE CLIP, BRAKE FLUID HOSE | 6 | $2.29 | Out of Stock | Notify Me |
| 09 | 6FIV-080005-4100 BRAKE FLUID HOSE CLAMP | BRAKE FLUID HOSE CLAMP | 1 | $4.59 | Available to order | 1 |
| 10 | 30102-050016870 SCREW | SCREW | 1 | $1.25 | Available to order | 1 |
| 11 | 30006-060012810 BOLT M6x12 | BOLT M6x12 | 6 | — | Obsolete | View Details |
| 12 | 6WWV-047002-5000 INNER HEX SCREW M6x26 | INNER HEX SCREW M6x26 | 2 | $1.25 | Out of Stock | Notify Me |
| 13 | 6FIV-080300-4100 REAR BRAKE PEDAL | REAR BRAKE PEDAL | 1 | $28.74 | Available to order | 1 |
| 14 | 6AQV-080400-1000 SPRING | SPRING | 1 | $6.89 | Available to order | 1 |
| 15 | A000-080006-10000 WASHER 1 | WASHER 1 | 1 | $2.29 | Available to order | 1 |
| 16 | 6WWV-046702-5000 INNER HEX SCREW M6x13 | INNER HEX SCREW M6x13 | 6 | $1.25 | Available to order | 6 |
| 17 | 30903-0162010 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 18 | 6FIV-080007-4101 BRAKE SWITCH LIMIT PLATE | BRAKE SWITCH LIMIT PLATE | 1 | $2.29 | Available to order | 1 |
| 19 | 6FIV-080003-4100 BRAKE SWITCH BRACKET | BRAKE SWITCH BRACKET | 1 | $2.29 | Available to order | 1 |
| 20 | 8010-000004 BOLT M6x14 | BOLT M6x14 | 6 | $1.25 | Available to order | 6 |
| 21 | 6FIV-080006-4101-M1 MECHANICAL BRAKE SWITCH | MECHANICAL BRAKE SWITCH | 1 | $16.09 | Available to order | 1 |
| 22 | 6NTV-080004-4101-M1 SPEED SENSOR | SPEED SENSOR | 1 | $40.24 | Available to order | 1 |
| 23 | 6FIV-080010-7000 REAR BRAKE DISC | REAR BRAKE DISC | 1 | $57.49 | Available to order | 1 |
| 24 | 6FIV-080220-71A0-M1 REAR BRAKE PAD | REAR BRAKE PAD | 1 | $34.49 | Available to order | 1 |
| 25 | 6FIV-080220-7100-M1 REAR BRAKE CALIPER | REAR BRAKE CALIPER | 1 | $186.99 | Available to order | 1 |
| 26 | 6KM#-081000-8100-20 WASHER | WASHER | 2 | $3.44 | Available to order | 2 |
| 27 | 6KM#-080103-8101 BOLT | BOLT | 1 | $8.04 | Obsolete | View Details |
| 28 | 30904-0062270 PIN SHAFT | PIN SHAFT | 1 | $1.25 | Available to order | 1 |
| 29 | 30903-0022070 COTTER PIN | COTTER PIN | 1 | $1.25 | Available to order | 1 |
| 30 | 6FIV-081100-4400-M1 ABS CONTROLLER | ABS CONTROLLER | 1 | $439.99 | Obsolete | View Details |
| 31 | A000-080229-2000 SCREW, FLUID RESERVOIR CAP | SCREW, FLUID RESERVOIR CAP | 1 | $10.34 | Available to order | 1 |
| 32 | 6KM0-091201-20000 CAP, FLUID RESERVOIR | CAP, FLUID RESERVOIR | 1 | $16.09 | Available to order | 1 |
| 33 | 6KM0-091202-20000 SEALING LINER, FLUID RESERVOIR | SEALING LINER, FLUID RESERVOIR | 1 | $11.49 | Available to order | 1 |
| 34 | 6KM0-091203-20000 SEALING GASKET, FLUID RESERVOIR | SEALING GASKET, FLUID RESERVOIR | 1 | $11.49 | Available to order | 1 |
| 35 | 6KMV-081100-B000-20 BRAKE LEVER | BRAKE LEVER | 1 | $22.99 | Available to order | 1 |
| 36 | 6KMV-081100-B100-M1 HAND BRAKE PUMP ASSY | HAND BRAKE PUMP ASSY | 1 | $153.99 | Available to order | 1 |
| 37 | 6FIV-080120-71A0-M1 FRONT BRAKE PAD | FRONT BRAKE PAD | 1 | $34.49 | Available to order | 1 |
| 38 | 6FIV-080120-7100-M1 FRONT BRAKE CALIPER | FRONT BRAKE CALIPER | 1 | $140.79 | Available to order | 1 |
| 39 | 6FIV-081010-4000 FRONT BRAKE FLUID INLET HOSE | FRONT BRAKE FLUID INLET HOSE | 1 | $57.49 | Out of Stock | Notify Me |
| 40 | 6FIV-081020-4000 FRONT BRAKE FLUID OUTLET HOSE | FRONT BRAKE FLUID OUTLET HOSE | 1 | $36.79 | Available to order | 1 |
| 41 | 6FIV-081200-4000-M1 REAR BRAKE MASTER CYLINDER | REAR BRAKE MASTER CYLINDER | 1 | $131.99 | Available to order | 1 |
| 42 | 6FIV-090270-9200 REAR BRAKE FLUID INLET HOSE | REAR BRAKE FLUID INLET HOSE | 1 | $27.59 | Available to order | 1 |
| 43 | 6FIV-081040-7000 REAR BRAKE FLUID OUTLET HOSE | REAR BRAKE FLUID OUTLET HOSE | 1 | $45.99 | Available to order | 1 |
| 44 | 30304-006170 PLAIN WASHER | PLAIN WASHER | 1 | $1.25 | Available to order | 1 |
