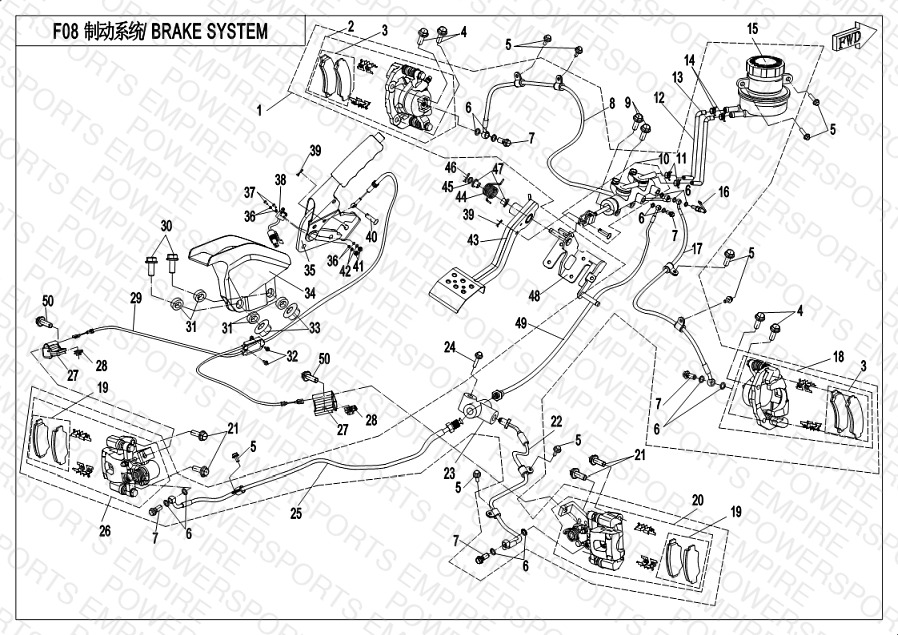

F08-A — BRAKE SYSTEM(SUMITOMO)
Parts (49)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5BW1-081000-10000 COMPLETE BRAKE SYSTEM | COMPLETE BRAKE SYSTEM | 1 | $1099.99 | Obsolete | View Details |
| 02 | 7020-081030-10000 BRAKE CALIPER | BRAKE CALIPER LEFT SIDE UFORCE,RIGHT SIDE ZFORCE | 1 | $197.99 | Available to order | 1 |
| 03 | 7020-0810B0 FRONT BRAKE PAD | FRONT BRAKE PAD | 1 | $68.99 | Obsolete | View Details |
| 04 | 30006-102020810 BOLT M10x1.25x20 | BOLT M10x1.25x20 | 6 | $2.29 | Out of Stock | Notify Me |
| 05 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 06 | 0010-060010 WASHER 10 | WASHER 10 | 6 | $3.44 | Available to order | 6 |
| 07 | 7020-081004 BANJO BOLT | BANJO BOLT | 6 | $3.44 | Available to order | 6 |
| 08 | 5BWB-081010-00001 FLUID HOSE, LH FRONT BRAKE | FLUID HOSE, LH FRONT BRAKE | 1 | $103.49 | Available to order | 1 |
| 09 | 30006-080025810 BOLT M8X25 | BOLT M8X25 | 6 | $1.25 | Available to order | 6 |
| 10 | 5BWB-081100-00002 MASTER CYLINDER | MASTER CYLINDER | 1 | $186.99 | Available to order | 1 |
| 11 | 7020-081002 PIPE CLIP | PIPE CLIP | 1 | $2.29 | Available to order | 1 |
| 12 | 5BWB-081001-10000 FLUID RESERVOIR HOSE #1 | FLUID RESERVOIR HOSE #1 | 1 | $18.39 | Out of Stock | Notify Me |
| 13 | 5BWB-081002-10000 FLUID RESERVOIR HOSE #2 | FLUID RESERVOIR HOSE #2 | 1 | $16.09 | Obsolete | View Details |
| 14 | 9010-080405 CLAMP | CLAMP | 6 | $3.44 | Available to order | 6 |
| 15 | 5BW1-080150-10000 BRAKE RESERVOIR | BRAKE RESERVOIR | 1 | $57.49 | Available to order | 1 |
| 16 | 7020-080010-30000 HYDRAULIC BRAKE SWITCH | HYDRAULIC BRAKE SWITCH | 1 | $57.49 | Available to order | 1 |
| 17 | 5BWB-081020 RH, FRONT BRAKE HOSE | RH, FRONT BRAKE HOSE | 1 | $91.99 | Obsolete | View Details |
| 18 | 7020-081040-10000 BRAKE CALIPER | BRAKE CALIPER RIGHT SIDE UFORCE,LEFT SIDE ZFORCE | 1 | $197.99 | Available to order | 1 |
| 19 | 7020-0810A0 REAR BRAKE PAD | REAR BRAKE PAD | 1 | — | Obsolete | View Details |
| 20 | 5BWB-081200-10000 REAR BRAKE CALIPER | REAR BRAKE CALIPER | 1 | $329.99 | Obsolete | View Details |
| 21 | 30006-102045840 BOLT M10x1.25x45 | BOLT M10x1.25x45 | 6 | $2.29 | Available to order | 6 |
| 22 | 5BWB-081040 RH, REAR BRAKE HOSE | RH, REAR BRAKE HOSE | 1 | $91.99 | Available to order | 1 |
| 23 | 7020-081001 T-JOINT | T-JOINT | 1 | $34.49 | Available to order | 1 |
| 24 | 30006-060030810 BOLT M6x30 | BOLT M6x30 | 6 | $1.25 | Available to order | 6 |
| 25 | 5BWB-081030 LH, REAR BRAKE HOSE | LH, REAR BRAKE HOSE | 1 | $91.99 | Out of Stock | Notify Me |
| 26 | 5BWB-081300-10000 BRAKE CALIPER | BRAKE CALIPER | 1 | $329.99 | Obsolete | View Details |
| 27 | 5UW2-080001 CABLE CLIP | CABLE CLIP | 1 | $3.44 | Available to order | 1 |
| 28 | 8030-040800-00001 NUT CLIP M6 | NUT CLIP M6 | 6 | $2.29 | Available to order | 6 |
| 29 | 5BWB-083100-10000 PARKING BRAKE CABLE | PARKING BRAKE CABLE | 1 | $68.99 | Available to order | 1 |
| 30 | 30006-080035810 BOLT M8x35 | BOLT M8x35 | 6 | $1.25 | Available to order | 6 |
| 31 | 7000-082003 BRAKE COVER BUSHING | BRAKE COVER BUSHING | 1 | $5.74 | Available to order | 1 |
| 32 | 30006-050016810 BOLT M5x16 | BOLT M5x16 | 6 | $1.25 | Available to order | 6 |
| 33 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 34 | 7000-082002 BRAKE COVER | BRAKE COVER | 1 | $12.64 | Available to order | 1 |
| 35 | 7000-082200 PARKING BRAKE | PARKING BRAKE | 1 | $114.99 | Available to order | 1 |
| 36 | 30306-020800 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 37 | 30105-020016700 SCREW M2X16 | SCREW M2X16 | 6 | $1.25 | Available to order | 6 |
| 38 | 7000-082210-10000 PARKING SWITCH | PARKING SWITCH | 1 | $34.49 | Available to order | 1 |
| 39 | 30903-0162520 PIN | PIN | 6 | $1.25 | Available to order | 6 |
| 40 | 30904-0602010 SHAFT, PIN | SHAFT, PIN | 6 | $5.74 | Available to order | 6 |
| 41 | 30200-020500 NUT M2 | NUT M2 | 6 | $1.25 | Available to order | 6 |
| 42 | 30303-020900 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 43 | 9060-081300 BRAKE PEDAL | BRAKE PEDAL | 1 | $80.49 | Obsolete | View Details |
| 44 | 9060-080003 RETURN SPRING | RETURN SPRING | 1 | $5.74 | Available to order | 1 |
| 45 | 30306-120112 PLAIN WASHER | PLAIN WASHER | 6 | $1.25 | Out of Stock | Notify Me |
| 46 | 30903-0322210 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 47 | 9060-105002 BUSHING | BUSHING | 2 | $4.59 | Out of Stock | Notify Me |
| 48 | 9060-081200-1000 FIXING BRACKET, BRAKE PEDAL | FIXING BRACKET, BRAKE PEDAL | 1 | $57.49 | Available to order | 1 |
| 49 | 5BWB-081060 REAR BRAKE HOSE | REAR BRAKE HOSE | 1 | $114.99 | Available to order | 1 |
