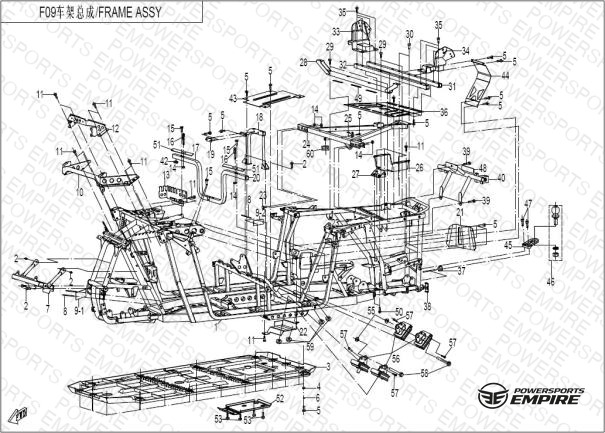

F09 — FRAME ASSY
Parts (58)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9060-030100-2000 FRAME ASSY. | FRAME ASSY. | 1 | $1759.99 | Obsolete | View Details |
| 02 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 03 | 9060-040024-10000 SKID PLATE. (TRUCK FREIGHT) | SKID PLATE. (TRUCK FREIGHT) | 1 | $384.99 | Out of Stock | Notify Me |
| 04 | 9060-040028 CUPPED WASHER | CUPPED WASHER | 1 | $3.44 | Available to order | 1 |
| 05 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 06 | 30303-060112 LOCK WASHER | LOCK WASHER | 6 | $1.25 | Available to order | 6 |
| 07 | 9060-037300 LOWER BRACKET,RADIATOR | LOWER BRACKET,RADIATOR | 1 | $57.49 | Obsolete | View Details |
| 08 | 30902-0401320 POP RIVET | POP RIVET | 6 | $1.25 | Available to order | 6 |
| 09-01 | 9010-190015 VEHICLE NAME PLATE | VEHICLE NAME PLATE | 1 | $6.89 | Obsolete | View Details |
| 10 | 9060-037250-1000 MOUNTING BRACKET, FRONT TOP COVER | MOUNTING BRACKET, FRONT TOP COVER | 1 | $45.99 | Obsolete | View Details |
| 11 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 12 | 9060-037110-10000 UPPER BRACKET, RESERVOIR TANK | UPPER BRACKET, RESERVOIR TANK | 1 | $24.14 | Available to order | 1 |
| 13 | 9060-038010 RELAY SEAT | RELAY SEAT | 1 | $22.99 | Obsolete | View Details |
| 14 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 15 | 30006-080040840 BOLT M8×40 | BOLT M8×40 | 6 | $2.29 | Obsolete | View Details |
| 16 | 9060-037663 LIMIT ROD, SEAT | LIMIT ROD, SEAT | 1 | $18.39 | Obsolete | View Details |
| 17 | 9060-038030-1000 SEAT SUPPORT(RH) | SEAT SUPPORT(RH) | 1 | $34.49 | Obsolete | View Details |
| 18 | 9060-037570-1000 PARKING BRAKE BRACKET | PARKING BRAKE BRACKET | 1 | $53.42 | Obsolete | View Details |
| 19 | 9060-038310-1000 REINFORCEMENT BRACKET, PARKING BRAKE | REINFORCEMENT BRACKET, PARKING BRAKE | 1 | $28.74 | Obsolete | View Details |
| 20 | 9060-038020 SEAT SUPPORT(LH) | SEAT SUPPORT(LH) | 1 | $34.49 | Obsolete | View Details |
| 21 | 9060-030491 PROTECTION PLATE 3,FUEL TANK | PROTECTION PLATE 3,FUEL TANK | 1 | $28.74 | Obsolete | View Details |
| 22 | 9060-030488 PROTECTION PLATE 2, FUEL TANK | PROTECTION PLATE 2, FUEL TANK | 1 | $17.24 | Obsolete | View Details |
| 23 | 30006-080048840 BOLT M8x48 | BOLT M8x48 | 6 | $1.14 | Available to order | 6 |
| 24 | 9060-037710-3000 X-GIRDER ASSEMBLY | X-GIRDER ASSEMBLY | 1 | $114.99 | Obsolete | View Details |
| 25 | 9060-038203 PALTE, IDLE VALVE | PALTE, IDLE VALVE | 1 | $3.44 | Obsolete | View Details |
| 26 | 9060-031670 HEAT INSULATION PLATE,REAR AXLE | HEAT INSULATION PLATE,REAR AXLE | 1 | $45.99 | Obsolete | View Details |
| 27 | 9060-038130-1000 FRONT CONNECTION BRACKET, REAR AXLE | FRONT CONNECTION BRACKET, REAR AXLE | 1 | $34.49 | Obsolete | View Details |
| 28 | 9060-037760 FRONT SUPPORT BEAM COMP. | FRONT SUPPORT BEAM COMP. | 1 | $45.99 | Obsolete | View Details |
| 29 | 30006-080035810 BOLT M8x35 | BOLT M8x35 | 6 | $1.25 | Available to order | 6 |
| 31 | 9060-037850 SUPPORT BEAM(2), CARGO BOX | SUPPORT BEAM(2), CARGO BOX | 1 | $57.49 | Obsolete | View Details |
| 32 | 9060-037810 SUPPORT BEAM(1), CARGO BOX | SUPPORT BEAM(1), CARGO BOX | 1 | $68.99 | Obsolete | View Details |
| 33 | 9060-038202 JOINT PLATE(RH),BUMPER | JOINT PLATE(RH),BUMPER | 1 | $114.99 | Obsolete | View Details |
| 34 | 9060-038201 JOINT PLATE(LH),BUMPER | JOINT PLATE(LH),BUMPER | 1 | $114.99 | Obsolete | View Details |
| 35 | 30006-102030840 BOLT M10×1.25×30 | BOLT M10×1.25×30 | 6 | $3.44 | Obsolete | View Details |
| 36 | 9060-038120 HEAT INSULATION PLATE ASSEMBLY | HEAT INSULATION PLATE ASSEMBLY | 1 | $80.49 | Obsolete | View Details |
| 37 | 9060-038123 CIRCULAR PIUG | CIRCULAR PIUG | 6 | $2.29 | Obsolete | View Details |
| 38 | 9060-038122 RECTANGLE PIUG | RECTANGLE PIUG | 6 | $3.44 | Available to order | 6 |
| 39 | 30006-102020810 BOLT M10x1.25x20 | BOLT M10x1.25x20 | 6 | $2.29 | Out of Stock | Notify Me |
| 40 | 9060-037910 REAR END BUMPER BRACKET | REAR END BUMPER BRACKET | 1 | $52.85 | Obsolete | View Details |
| 41 | 30202-060140 NUT M6 | NUT M6 | 6 | $1.25 | Obsolete | View Details |
| 42 | 5190-001003 RUBBER CUSHION,MAIN BRACKET | RUBBER CUSHION,MAIN BRACKET | 6 | $3.44 | Available to order | 6 |
| 43 | 9060-038125 HEAT INSULATOR, FUEL TANK | HEAT INSULATOR, FUEL TANK | 1 | $28.74 | Obsolete | View Details |
| 44 | 9060-038124 HEAT INSULATOR, REAR | HEAT INSULATOR, REAR | 1 | $45.99 | Obsolete | View Details |
| 45 | 9010-030002 TOWING BRACKET | TOWING BRACKET | 1 | $26.44 | Available to order | 1 |
| 46 | 9010-205000-1000 HITCH BALL 50MM (Not incl. USA) | HITCH BALL 50MM (Not incl. USA) | 1 | $80.49 | Obsolete | View Details |
| 47 | 30102-102040810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 48 | 9060-038128 SPONGE STRIPE, HEAT INSULATOR | SPONGE STRIPE, HEAT INSULATOR | 1 | $2.29 | Out of Stock | Notify Me |
| 49 | 9060-038129 SPONGE, HEAT ISOLATOR | SPONGE, HEAT ISOLATOR | 6 | $3.44 | Available to order | 6 |
| 50 | 30006-080014810 BOLT M8X14 | BOLT M8X14 | 6 | $1.25 | Available to order | 6 |
| 51 | 9060-038023 REAR SUPPORT PLATE, SEAT | REAR SUPPORT PLATE, SEAT | 1 | $11.49 | Obsolete | View Details |
| 52 | 9060-390001 SKID PLATE,ENGINE | SKID PLATE,ENGINE | 1 | $131.99 | Available to order | 1 |
| 54 | 30006-060025810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 55 | 30204-122840 NUT M12×1.25 | NUT M12×1.25 | 6 | $2.29 | Obsolete | View Details |
| 56 | 401B-000200-10000 ENGINE MOUNT | ENGINE MOUNT | 1 | $45.99 | Available to order | 1 |
| 57 | 30102-060012810 SCREW M6X12 | SCREW M6X12 | 6 | $1.25 | Available to order | 6 |
| 58 | 30006-122145840 BOLT | BOLT | 6 | $10.34 | Obsolete | View Details |
| 59 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 60 | 5020-031001 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
