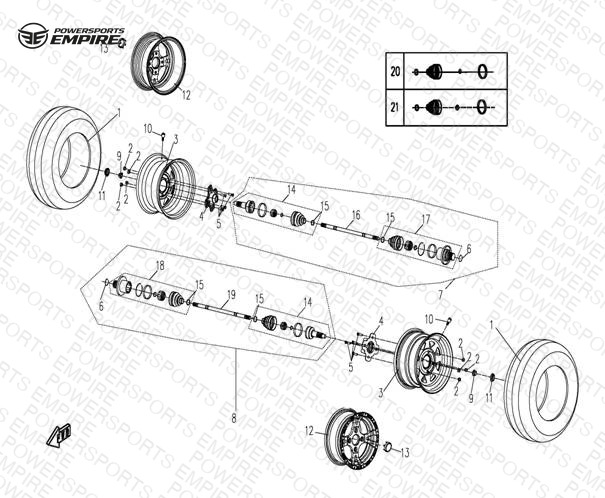

F09 — REAR WHEEL ASSY
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30703-1223 REAR TIRE | REAR TIRE | 1 | $219.99 | Obsolete | View Details |
| 02 | 9010-070002-A000 NUT, RIM | NUT, RIM | 4 | $3.44 | Available to order | 4 |
| 03 | 9030-110100-B000 REAR ALUM.RIM | REAR ALUM.RIM SEE RIM CHART | 1 | $208.99 | Obsolete | View Details |
| 04 | 9010-110001-1000 HUB,REAR WHEEL | HUB,REAR WHEEL | 1 | $91.99 | Out of Stock | Notify Me |
| 05 | 9010-070201 WHEEL STUD | WHEEL STUD | 4 | $6.89 | Available to order | 4 |
| 06 | 9010-280102-00001 WIRE CIRCLIP | WIRE CIRCLIP | 6 | $2.29 | Out of Stock | Notify Me |
| 07 | 9030-280200-1000 REAR CV DRIVE SHAFT,RH | REAR CV DRIVE SHAFT,RH WHEN REPLACING ORIGINAL SHAFT NEED TO ADD 5HY0-110001 NUT AND 30903-0504000 COTTER PIN. | 1 | $296.99 | Obsolete | View Details |
| 08 | 9030-280100-1000 REAR CV DRIVE SHAFT,LH | REAR CV DRIVE SHAFT,LH WHEN REPLACING ORIGINAL SHAFT NEED TO ADD 5HY0-110001 NUT AND 30903-0504000 COTTER PIN. | 1 | $252.99 | Out of Stock | Notify Me |
| 09 | 9030-070003 NUT,RIM SHAFT | NUT,RIM SHAFT | 4 | $11.49 | Obsolete | View Details |
| 10 | 5190-070030-1000 VALVE,INFLATION | VALVE,INFLATION | 1 | $5.74 | Available to order | 1 |
| 11 | 9030-040035 TIRE CAP | TIRE CAP | 1 | $5.74 | Obsolete | View Details |
| 12 | 9010-110100-A000 REAR ALUM RIM | REAR ALUM RIM SEE RIM CHART | 1 | $186.99 | Obsolete | View Details |
| 13 | 9050-040036-1000 CAP, ALUM.RIM | CAP, ALUM.RIM | 1 | $19.54 | Available to order | 1 |
| 14 | 9010-270160 BEARING KIT, FIXED END | BEARING KIT, FIXED END | 1 | $114.99 | Obsolete | View Details |
| 15 | 9010-270106 SMALL CLAMP,FIXED END | SMALL CLAMP,FIXED END | 2 | $5.74 | Obsolete | View Details |
| 17 | 9010-280230-1000 BEARING KIT,MOTION END(RR) | BEARING KIT,MOTION END(RR) | 1 | $114.99 | Obsolete | View Details |
| 18 | 9010-280150 BEARING KIT,MOTION END (LH) | BEARING KIT,MOTION END (LH) | 1 | $114.99 | Obsolete | View Details |
| 20 | 9010-270150-1000 DUST BOOT KIT,FIXING END | DUST BOOT KIT,FIXING END SPS, FIXED, OUTER BOOT | 1 | $57.49 | Available to order | 1 |
| 20-1 | 9010-270150-2000 DUST BOOT,FIXING END | DUST BOOT,FIXING END QC. FIXED, OUTER BOOT | 1 | $45.99 | Obsolete | View Details |
| 21-1 | 9010-270160-2000 DUST BOOT,MOTION END | DUST BOOT,MOTION END QC, MOTION, INNER BOOT | 1 | $57.49 | Available to order | 1 |
| 21 | 9010-270170-10000 DUST BOOT KIT,MOTION END | DUST BOOT KIT,MOTION END SPS, MOTION, INNER BOOT | 1 | $57.49 | Available to order | 1 |
