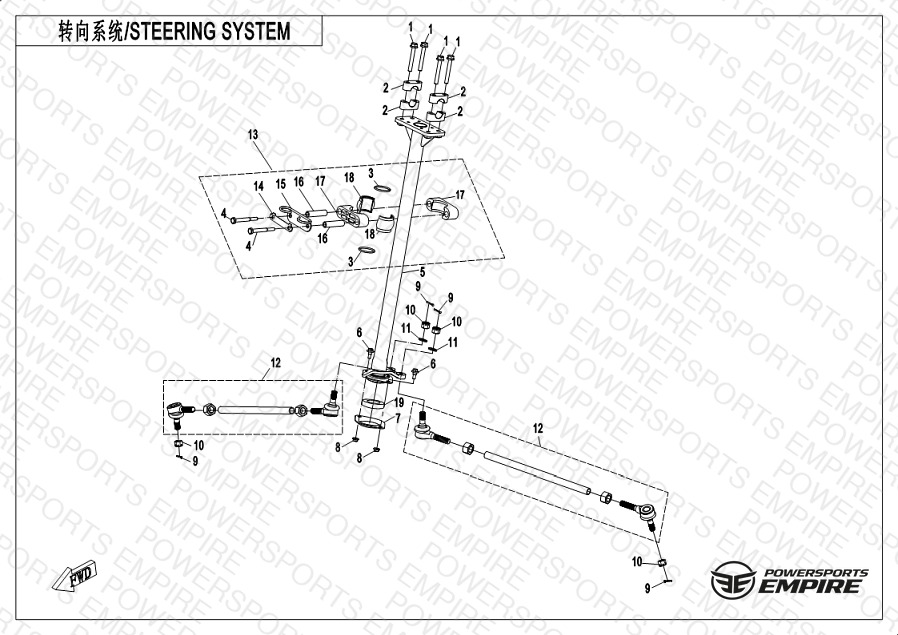

F10-2-A — STEERING SYSTEM
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-080055810 BOLT | BOLT M8×55 | 6 | $2.29 | Available to order | 6 |
| 02 | 9DSV-100001-6K01 HANDLEBAR BLOCK | HANDLEBAR BLOCK | 1 | $20.69 | Available to order | 1 |
| 03 | 30502-032800N O-RING | O-RING | 1 | $1.25 | Available to order | 1 |
| 04 | 30003-080075810 BOLT | BOLT M8×75 | 6 | $2.29 | Available to order | 6 |
| 05 | 9GQ0-102100 STEERING STEM ASSY. | STEERING STEM ASSY. | 1 | $114.99 | Obsolete | View Details |
| 06 | 7020-100001 BOLT | BOLT M8×22 | 6 | $2.29 | Available to order | 6 |
| 07 | 7020-100301-10000 BEARING SEAT, STEERING | BEARING SEAT, STEERING | 1 | $6.89 | Available to order | 1 |
| 08 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 09 | 30903-0201610 COTTER PIN 2.0x16 | COTTER PIN 2.0x16 | 6 | $2.29 | Available to order | 6 |
| 10 | 9010-100002 NUT M10x1.25 | NUT M10x1.25 | 6 | $3.44 | Available to order | 6 |
| 11 | 30306-100112 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 12 | 9GQ0-100530 TIE ROD ASSY. | TIE ROD ASSY. | 1 | $114.99 | Available to order | 1 |
| 13 | 7020-1006A0 BUSHING,STEERING STEM | BUSHING,STEERING STEM | 1 | $57.49 | Out of Stock | Notify Me |
| 14 | 7020-100603 LOCKING PIECE | LOCKING PIECE | 1 | $2.29 | Available to order | 1 |
| 15 | 7020-100610-10000 LINKING PLATE ASSY | LINKING PLATE ASSY | 1 | $3.44 | Available to order | 1 |
| 16 | 7020-100604-00001 BUSHING | BUSHING | 1 | $2.29 | Available to order | 1 |
| 17 | 7020-100601-00001 OUTER BUSHING, STEERING SHAFT SPHERICAL | OUTER BUSHING, STEERING SHAFT SPHERICAL | 1 | $8.04 | Available to order | 1 |
| 18 | 7020-100602 INNER BUSHING,STEERING SHAFT SPHERICAL | INNER BUSHING,STEERING SHAFT SPHERICAL | 1 | $19.54 | Out of Stock | Notify Me |
| 19 | 7020-100600 BEARING,STEERING STEM | BEARING,STEERING STEM | 1 | $26.44 | Out of Stock | Notify Me |
