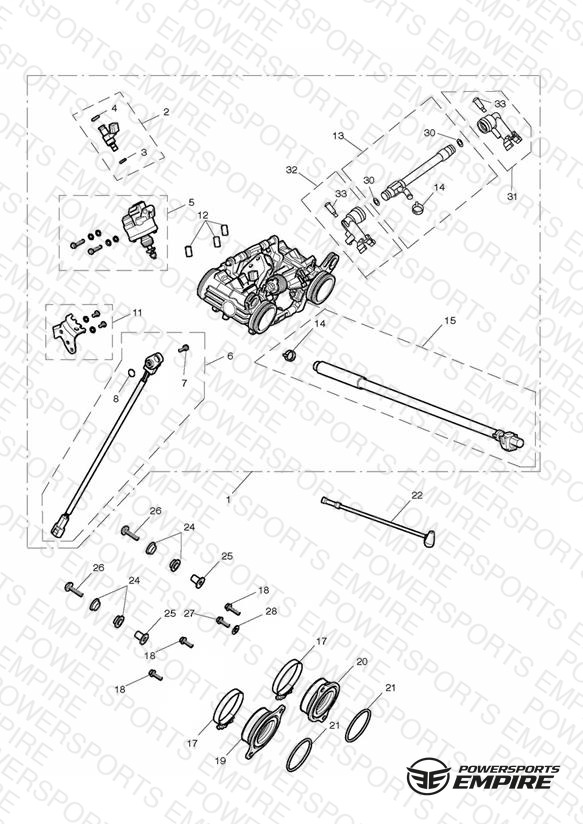

Loading schematic...
Throttle Bodies
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1246000 Throttle Body Assy | Throttle Body Assy | 1 | $3309.52 | Out of Stock | Notify Me |
| 2 | T1246001 Injector, Fuel, Kn7 120% Uprated | Injector, Fuel, Kn7 120% Uprated | 2 | $316.87 | Available to order | 2 |
| 3 | T1246009 O-Ring, Injector, Kn7, Lower | O-Ring, Injector, Kn7, Lower | 2 | $3.90 | Available to order | 2 |
| 4 | T1246008 O-Ring, Injector, Kn7, Upper | O-Ring, Injector, Kn7, Upper | 2 | $3.90 | Available to order | 2 |
| 5 | T1241182 Actuator, ISC | Actuator, ISC | 1 | $268.08 | Available to order | 1 |
| 6 | T1246004 Throttle Position Sensor, Pri | Throttle Position Sensor, Pri | 1 | $166.86 | Available to order | 1 |
| 7 | T1246013 Screw, Tps, Hex Head | Screw, Tps, Hex Head | 1 | $1.40 | Available to order | 1 |
| 8 | T1245012 O Ring, TPS | O Ring, TPS | 1 | $4.45 | Available to order | 1 |
| 11 | T1246006 Bracket, Throttle Cable, Kit | Bracket, Throttle Cable, Kit | 1 | $40.67 | Out of Stock | Notify Me |
| 12 | T1245009 Cap, Vacuum Connection | Cap, Vacuum Connection | 3 | $4.74 | Available to order | 3 |
| 13 | T1246007 Fuel Rail Assy | Fuel Rail Assy | 1 | $254.75 | Backorder — Late July 2026 | 1 |
| 14 | T1245017 Clamp | Clamp | 2 | $3.39 | Available to order | 2 |
| 15 | T1246199 Fuel Feed Hose | Fuel Feed Hose | 1 | $245.24 | Backorder — Mid August 2026 | 1 |
| 17 | T3700041 Clip, Intake, Venturi, 60mm, Cap | Clip, Intake, Venturi, 60mm, Cap | 2 | $7.87 | Available to order | 2 |
| 18 | T3205063 Bolt, HHF, Lghtd, M6 x 16, Slv | Bolt, HHF, Lghtd, M6 x 16, Slv | 3 | $3.50 | Available to order | 3 |
| 19 | T1243151 Adapter, Throttle Body, LHS | Adapter, Throttle Body, LHS | 1 | $39.24 | Available to order | 1 |
| 20 | T1243152 Adapter, Throttle Body, RHS | Adapter, Throttle Body, RHS | 1 | $39.06 | Available to order | 1 |
| 21 | T1243515 O-Ring, Dia 55.25 x 2.62, Viton | O-Ring, Dia 55.25 x 2.62, Viton | 2 | $4.92 | Available to order | 2 |
| 22 | T1243219 Pipe, Map Sensor | Pipe, Map Sensor | 2 | $23.08 | Available to order | 2 |
| 24 | T1246014 Flanged Sleeve, Rubber | Flanged Sleeve, Rubber | 4 | $3.17 | Available to order | 4 |
| 25 | T3010701 Flanged Sleeve, 6.4 x 10 x 14.5 | Flanged Sleeve, 6.4 x 10 x 14.5 | 2 | $5.30 | Available to order | 2 |
| 26 | T3330231 Screw, Lge Skt Hd, M6 X 1 X 25 | Screw, Lge Skt Hd, M6 X 1 X 25 | 2 | $13.51 | Available to order | 2 |
| 27 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 1 | $4.55 | Available to order | 1 |
| 28 | T3555004 Washer, 6.4 x 14 x 1.6 | Washer, 6.4 x 14 x 1.6 | 1 | $1.40 | Available to order | 1 |
| 30 | T1246020 O Ring, Fuel Rail | O Ring, Fuel Rail | 2 | $6.07 | Available to order | 2 |
| 31 | T1246030 Kit, LH, Inj Cup | Kit, LH, Inj Cup | 1 | $54.51 | Available to order | 1 |
| 32 | T1246035 Kit, RH, Inj Cup | Kit, RH, Inj Cup | 1 | $54.20 | Available to order | 1 |
| 33 | T1240471 Screw, Fuel Rail | Screw, Fuel Rail | 2 | $4.85 | Available to order | 2 |
