Loading schematic...

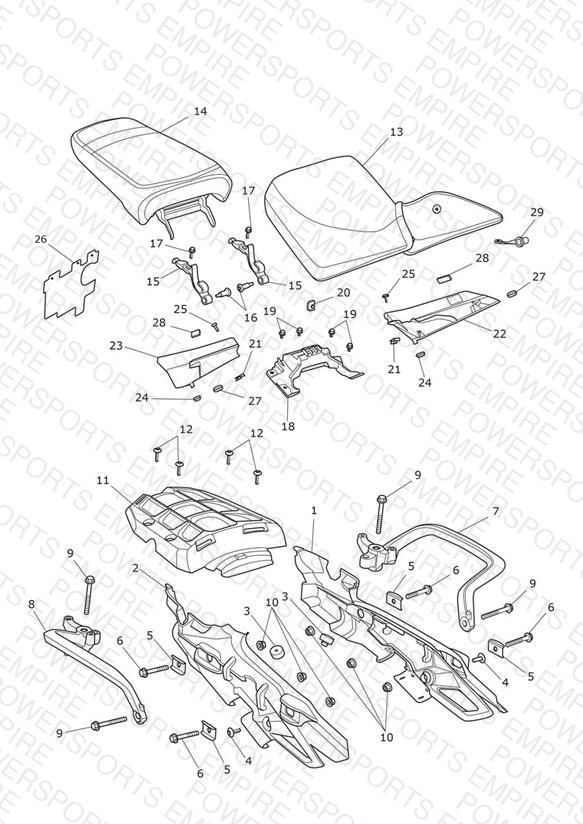

Rear Bodywork & Seat
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2303014 Rear Panel, LH | Rear Panel, LH | 1 | $90.30 | Available to order | 1 |
| 2 | T2303015 Rear Panel, RH | Rear Panel, RH | 1 | $90.10 | Available to order | 1 |
| 3 | T3020163 Rubber Foot, Push In | Rubber Foot, Push In | 2 | $11.79 | Available to order | 2 |
| 4 | T3330727 Screw, But/Hd, M6 x 20, Slv | Screw, But/Hd, M6 x 20, Slv | 2 | $3.39 | Available to order | 2 |
| 5 | T3552570 Plate, Pannier Mount | Plate, Pannier Mount | 4 | $21.41 | Available to order | 4 |
| 6 | T3202307 Bolt, HHF, M8 x 50, Slv | Bolt, HHF, M8 x 50, Slv | 4 | $6.65 | Available to order | 4 |
| 7 | T2309640 Grabrail, LH | Grabrail, LH | 1 | $267.57 | Available to order | 1 |
| 8 | T2309641 Grabrail, RH | Grabrail, RH | 1 | $267.57 | Available to order | 1 |
| 9 | T3202315 Bolt, HHF, M8 x 65, Slv | Bolt, HHF, M8 x 65, Slv | 4 | $8.18 | Available to order | 4 |
| 10 | T3350004 Locknut, Flanged, M8 x 1.25 | Locknut, Flanged, M8 x 1.25 | 6 | $2.45 | Available to order | 6 |
| 11 | T2303017 Rear Rack | Rear Rack | 1 | $100.76 | Available to order | 1 |
| 12 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 4 | $5.30 | Available to order | 4 |
| 13 | T2309239 Rider Seat, Heated | Rider Seat, Heated | 1 | $413.67 | Backorder — Early August 2026 | 1 |
| 14 | T2309248 Pillion Seat, Heated | Pillion Seat, Heated | 1 | $413.67 | Backorder — Early August 2026 | 1 |
| 15 | T2304373 Seat Hook | Seat Hook | 2 | $15.27 | Available to order | 2 |
| 16 | T3330242 Bolt, Lge Skt Hd, Shld, M6 x 37.0 | Bolt, Lge Skt Hd, Shld, M6 x 37.0 | 2 | $5.56 | Available to order | 2 |
| 18 | T2304588 Seat Bridge, Moulding | Seat Bridge, Moulding | 1 | $46.76 | Available to order | 1 |
| 19 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 4 | $1.72 | Out of Stock | Notify Me |
| 20 | T3350111 Nut, Captive, M6 | Nut, Captive, M6 | 1 | $4.92 | Backorder — Early August 2026 | 1 |
| 21 | T3350123 Nut, Captive, M5, Non-Secured | Nut, Captive, M5, Non-Secured | 2 | $2.48 | Available to order | 2 |
| 22 | T2306252 Seat Infill, LH | Seat Infill, LH | 1 | $57.03 | Available to order | 1 |
| 23 | T2306253 Seat Infill, RH | Seat Infill, RH | 1 | $57.03 | Available to order | 1 |
| 24 | T3020330 Grommet, Rectangular | Grommet, Rectangular | 2 | $2.95 | Available to order | 2 |
| 25 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 2 | $6.73 | Available to order | 2 |
| 26 | T2304367 Sheet, Air Dam | Sheet, Air Dam | 1 | $15.46 | Available to order | 1 |
| 27 | T3020203 Grommet, Rectangular Slot | Grommet, Rectangular Slot | 2 | $4.85 | Available to order | 2 |
| 28 | T3660171 Pad, Rubber, 30 x 10 x 5, thick | Pad, Rubber, 30 x 10 x 5, thick | 2 | $8.09 | Available to order | 2 |
| 29 | T2304379 Seat, Rubber, Front | Seat, Rubber, Front | 2 | $8.18 | Available to order | 2 |
