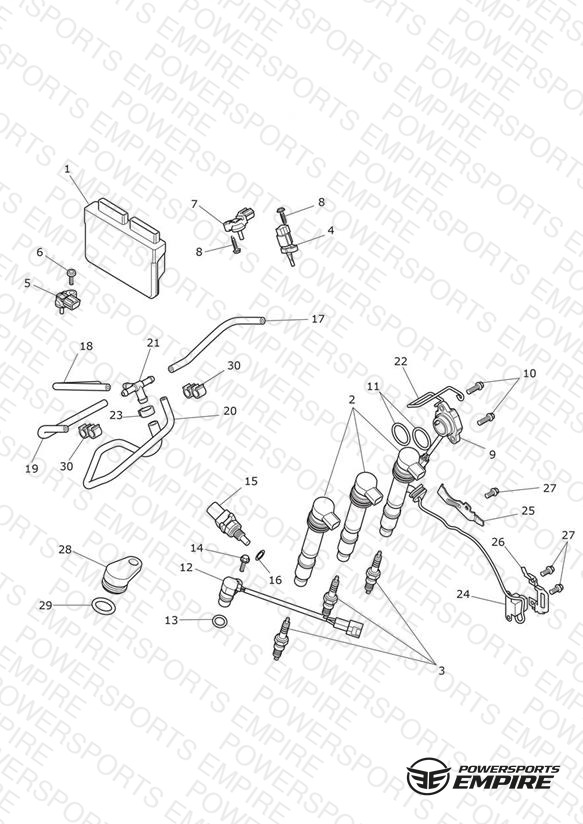

Loading schematic...
Engine Management System
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T1293450 ECM Base | ECM Base | 1 | $1065.03 | Available to order | 1 |
| 2 | T1291503 Coil, Ignition, 1.4 OHM | Coil, Ignition, 1.4 OHM | 3 | $195.81 | Out of Stock | Notify Me |
| 3 | T1290023 Spark plug | Spark plug | 3 | $17.50 | Available to order | 3 |
| 4 | T1290088 Sensor, Air Temperature | Sensor, Air Temperature | 1 | $64.75 | Available to order | 1 |
| 5 | T1290975 Air Pressure Sensor | Air Pressure Sensor | 1 | $144.49 | Available to order | 1 |
| 6 | T3205067 Bolt, HHF, Lghtd, M6 x 25, Slv | Bolt, HHF, Lghtd, M6 x 25, Slv | 1 | $2.46 | Available to order | 1 |
| 8 | T3332464 Screw, S/Tap, Tx, 5 x 25 | Screw, S/Tap, Tx, 5 x 25 | 2 | $2.17 | Available to order | 2 |
| 9 | T1299232 Sensor, Gear Position | Sensor, Gear Position | 1 | $119.76 | Available to order | 1 |
| 10 | T3205066 Bolt, HHF, Lghtd, M6 x 20, Slv | Bolt, HHF, Lghtd, M6 x 20, Slv | 2 | $4.55 | Available to order | 2 |
| 11 | T3600267 O Ring, ID 26.65 x Dia 2.62 | O Ring, ID 26.65 x Dia 2.62 | 2 | $1.51 | Available to order | 2 |
| 14 | T3205064 Bolt, RHHF, Domed, S/S, M6 x 16, Enc | Bolt, RHHF, Domed, S/S, M6 x 16, Enc | 1 | $4.01 | Available to order | 1 |
| 15 | T2100808 Sensor, Engine Coolant | Sensor, Engine Coolant | 1 | $54.02 | Available to order | 1 |
| 16 | T3550571 Washer, Cu, OD 16 x ID 12.5 | Washer, Cu, OD 16 x ID 12.5 | 1 | $5.07 | Available to order | 1 |
| 17 | T1292075 Hose, Throttle Body, Cyl 1 | Hose, Throttle Body, Cyl 1 | 1 | $3.24 | Available to order | 1 |
| 18 | T1292076 Hose, Throttle Body, Cyl 2 | Hose, Throttle Body, Cyl 2 | 1 | $3.24 | Available to order | 1 |
| 19 | T1292077 Hose, Throttle Body, Cyl 3 | Hose, Throttle Body, Cyl 3 | 1 | $3.24 | Available to order | 1 |
| 20 | T1290136 Hose, Map Sensor | Hose, Map Sensor | 1 | $11.97 | Available to order | 1 |
| 21 | T1242929 Connector, 4 Way | Connector, 4 Way | 1 | $10.90 | Available to order | 1 |
| 22 | T3700254 Hose Guide | Hose Guide | 1 | $6.55 | Out of Stock | Notify Me |
| 23 | T3700077 Clip, 10.5 Rer Oetiker | Clip, 10.5 Rer Oetiker | 1 | $4.01 | Available to order | 1 |
| 28 | T1164500 Blanking Plug | Blanking Plug | 1 | $2.55 | Available to order | 1 |
| 29 | T3600085 O-Ring, ID 14.6, SD 2.4 | O-Ring, ID 14.6, SD 2.4 | 1 | $4.01 | Available to order | 1 |
| 30 | T2040811 Twin Clip, Brake Hose | Twin Clip, Brake Hose | 2 | $2.63 | Available to order | 2 |
