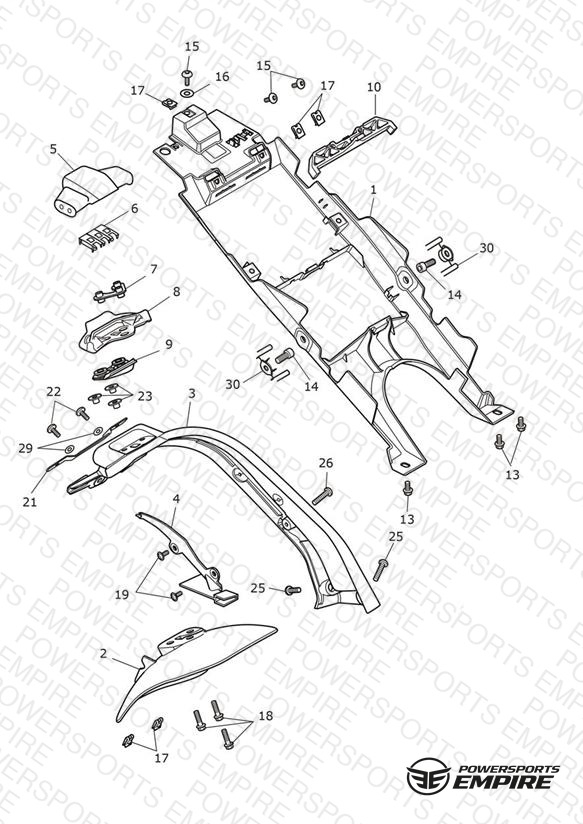

Rear Mudguard
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | T2313210 Battery Tray Moulding | Battery Tray Moulding | 1 | $60.56 | Available to order | 1 |
| 2 | T2313202 Spray Guard, Number Plate Hanger, Moulding | Spray Guard, Number Plate Hanger, Moulding | 1 | $29.16 | Available to order | 1 |
| 3 | T2316789-PS Arm, Number Plate Hanger, Matt Jet Black | Arm, Number Plate Hanger, Matt Jet Black | 1 | $195.36 | Available to order | 1 |
| 4 | T2313222 Harness Cover, Number Plate, Mldg | Harness Cover, Number Plate, Mldg | 1 | $14.33 | Available to order | 1 |
| 5 | T2319995 Light Holder, Number Plate Mldg | Light Holder, Number Plate Mldg | 1 | $13.64 | Available to order | 1 |
| 6 | T2312631 Connector Holder, Moulding | Connector Holder, Moulding | 1 | $3.01 | Available to order | 1 |
| 7 | T2313205 Bracket, Indicator Mount | Bracket, Indicator Mount | 1 | $53.13 | Available to order | 1 |
| 8 | T2313204 Indicator Mount, Moulding | Indicator Mount, Moulding | 1 | $20.47 | Available to order | 1 |
| 9 | T2313206 Gasket, Number Plate Hanger | Gasket, Number Plate Hanger | 1 | $4.65 | Available to order | 1 |
| 10 | T2313214 Insert, Battery | Insert, Battery | 1 | $7.42 | Available to order | 1 |
| 13 | T3203222 Bolt, HHF, M6 x 12, Slv | Bolt, HHF, M6 x 12, Slv | 3 | $1.72 | Out of Stock | Notify Me |
| 14 | T3050158 Screw, Cap/Hd, M8 x 20, Enc | Screw, Cap/Hd, M8 x 20, Enc | 2 | $4.74 | Available to order | 2 |
| 15 | T3330941 Screw, But/Hd, Skt, M5 x 16, Slv | Screw, But/Hd, Skt, M5 x 16, Slv | 3 | $6.73 | Available to order | 3 |
| 16 | T3550286 Washer, 5.3 x 18 x 1.6 | Washer, 5.3 x 18 x 1.6 | 1 | $1.62 | Backorder — Late August 2026 | 1 |
| 17 | T3350161 Nut, Captive, M5 | Nut, Captive, M5 | 5 | $4.55 | Backorder — Late August 2026 | 5 |
| 18 | T3202304 Bolt, RHHF, M6 x 20, Slv | Bolt, RHHF, M6 x 20, Slv | 3 | $5.30 | Available to order | 3 |
| 19 | T3331433 Screw, S/Tap, Pan TX, 4 x 11, PT | Screw, S/Tap, Pan TX, 4 x 11, PT | 2 | $1.78 | Unavailable | View Details |
| 21 | T2318044 Bracket, Number Plate | Bracket, Number Plate HK Only | 1 | $46.42 | Available to order | 1 |
| 22 | T3331005 Screw, But/Hd, M5 x 14, Slv, Enc | Screw, But/Hd, M5 x 14, Slv, Enc | 2 | $8.46 | Available to order | 2 |
| 23 | T3010108 Flanged Sleeve, M6 | Flanged Sleeve, M6 | 3 | $3.02 | Available to order | 3 |
| 25 | T3330286 Screw, But/Hd, TX, M8 x 25, Enc | Screw, But/Hd, TX, M8 x 25, Enc | 2 | $3.35 | Available to order | 2 |
| 26 | T3335001 Screw, Btn Hd, M5 x 14, Slv Enc | Screw, Btn Hd, M5 x 14, Slv Enc | 1 | $2.67 | Available to order | 1 |
| 29 | T3555012 Washer, 6.4 x 16 x 2 | Washer, 6.4 x 16 x 2 HK Only | 2 | $4.12 | Available to order | 2 |
| 30 | T2503649 Wire Guide, Harness | Wire Guide, Harness | 2 | $44.40 | Backorder — Mid August 2026 | 2 |
