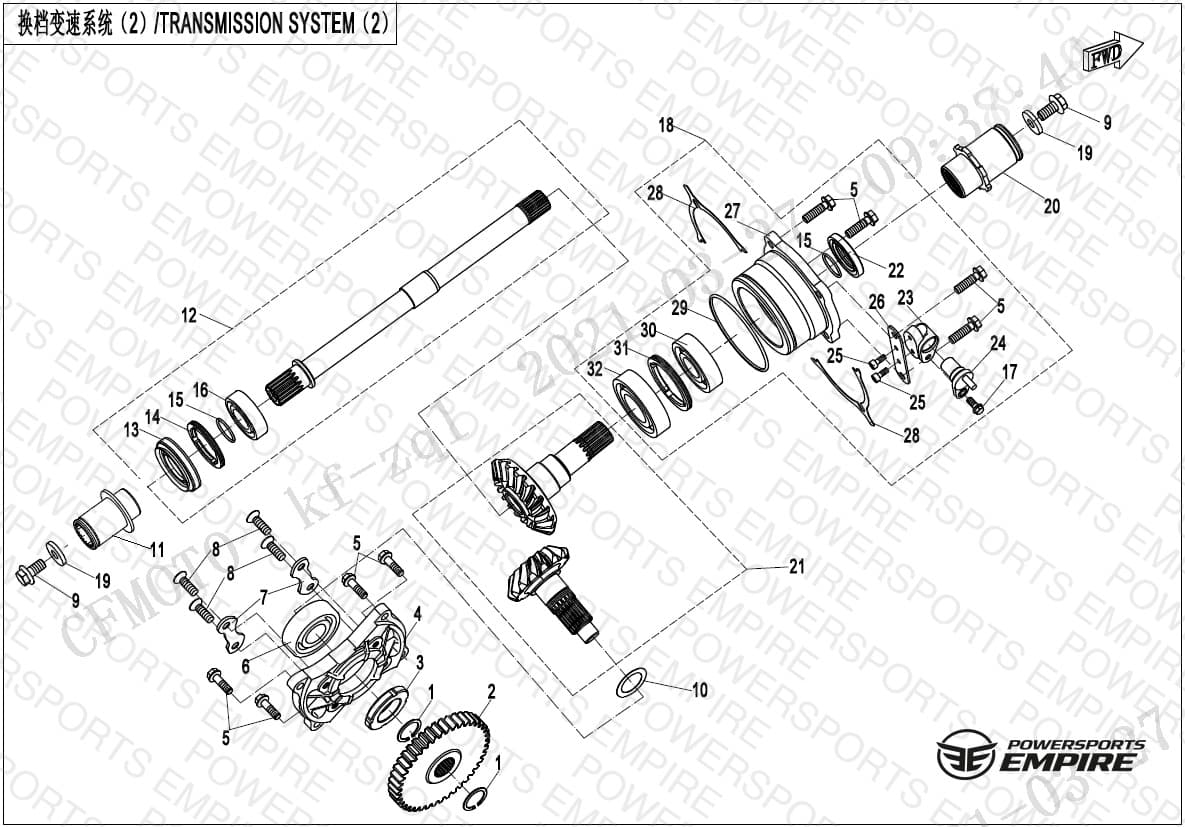

E06-2-V4 — TRANSMISSION SYSTEM(2)
Parts (41)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0180-061007-0050 RETAINER 25 | RETAINER 25 25 | 2 | $1.25 | Available to order | 2 |
| 02 | 0800-062102 DRIVEN GEAR, OUTPUT | DRIVEN GEAR, OUTPUT | 1 | $114.99 | Available to order | 1 |
| 03 | 0JYA-062102-00001 LOCK NUT, BEVEL GEAR | LOCK NUT, BEVEL GEAR M10x1.25x30 | 1 | $5.74 | Available to order | 1 |
| 04 | 0JYA-062103 BEARING SEAT, DRIVE BEVEL GEAR | BEARING SEAT, DRIVE BEVEL GEAR | 1 | — | Obsolete | View Details |
| 05 | 0JYA-062104 BOLT M8x28 | BOLT M8x28 M8x28 | 6 | $2.29 | Available to order | 6 |
| 06 | 0110-041007 BEARING, BALL | BEARING, BALL 28x68x18 | 1 | $80.49 | Available to order | 1 |
| 07 | 0180-062104-0010 LIMITATOR, BEARING | LIMITATOR, BEARING | 1 | $5.74 | Available to order | 1 |
| 08 | 30124-080025810 SCREW M8x25 | SCREW M8x25 M8x25 | 6 | $1.25 | Available to order | 6 |
| 09 | 0JWA-060002-00001 BOLT M10x1.25x30 | BOLT M10x1.25x30 | 1 | $4.59 | Available to order | 1 |
| 10-03 | 0JYA-062101-00200 ADJUSTING SHIM T=0.20 | ADJUSTING SHIM T=0.20 T=0.20 | 1 | $1.25 | Obsolete | View Details |
| 10-04 | 0JYA-062101-00300 ADJUSTING SHIM T=0.25 | ADJUSTING SHIM T=0.25 T=0.25 | 1 | $1.25 | Obsolete | View Details |
| 10-02 | 0JYV-062101-1E00-Q0-00001 ADJUSTING WASHER, DRIVE BEVEL GEAR, T=1.400-1.449 | ADJUSTING WASHER, DRIVE BEVEL GEAR, T=1.400-1.449 T=0.15 | 1 | $1.25 | Available to order | 1 |
| 10-05 | 0JYV-062101-1E00-Q0-00004 ADJUSTING WASHER, DRIVE BEVEL GEAR, t=1.550-1.549 | ADJUSTING WASHER, DRIVE BEVEL GEAR, t=1.550-1.549 T=0.30 | 1 | $1.25 | Available to order | 1 |
| 10-01 | 0JYV-062101-1E00-Q0-00005 ADJUSTING WASHER, DRIVE BEVEL GEAR, T=1.6.00-1.649 | ADJUSTING WASHER, DRIVE BEVEL GEAR, T=1.6.00-1.649 T=0.35 | 1 | $1.25 | Available to order | 1 |
| 11 | 0GQ0-060100 SLEEVE,FRONT OUTPUT | SLEEVE,FRONT OUTPUT | 1 | — | Obsolete | View Details |
| 12 | 0JWA-062300-10001 FRONT OUTPUT SHAFT ASSY | FRONT OUTPUT SHAFT ASSY | 1 | $142.99 | Available to order | 1 |
| 13 | 0JWA-062302 OIL SEAL 35X61X9 | OIL SEAL 35X61X9 35x61x9 | 1 | — | Obsolete | View Details |
| 14 | 0180-060008 RETAINER, BEARING | RETAINER, BEARING | 1 | $17.24 | Available to order | 1 |
| 15 | 0800-062205 O-RING 25x2 | O-RING 25x2 25x2 | 2 | $5.74 | Available to order | 2 |
| 16 | 30400-02501 BALL BEARING 6025 | BALL BEARING 6025 25 | 1 | $19.54 | Available to order | 1 |
| 17 | 30001-060014810 BOLT, M6X14 | BOLT, M6X14 M6x14 | 6 | $1.25 | Available to order | 6 |
| 18 | 0800-0622B0-00001 DRIVEN BEVEL GEAR | DRIVEN BEVEL GEAR | 1 | $208.99 | Available to order | 1 |
| 19 | 0GR0-062204 WASHER10x27.5x4 | WASHER10x27.5x4 10x27.5x4 | 6 | $3.44 | Available to order | 6 |
| 20 | 0JYA-060100 COUPLER ASSY. | COUPLER ASSY. | 1 | $80.49 | Obsolete | View Details |
| 21 | 0JYA-0622B0-00002 BEVEL GEAR ASSY | BEVEL GEAR ASSY | 1 | $362.99 | Available to order | 1 |
| 22 | 0800-062204 OIL SEAL 35x50x7 | OIL SEAL 35x50x7 35x50x7 | 1 | $17.24 | Available to order | 1 |
| 23 | 0800-062208 SEAT, SPEED SENSOR | SEAT, SPEED SENSOR | 1 | $12.64 | Available to order | 1 |
| 24 | 7020-150400 SPEED SENSOR | SPEED SENSOR | 1 | $57.49 | Available to order | 1 |
| 25 | 30102-050012810 SCREW M5x12 | SCREW M5x12 M5x12 | 6 | $1.25 | Out of Stock | Notify Me |
| 26 | 0800-062209 PLATE,SPEED SENSOR | PLATE,SPEED SENSOR | 1 | $5.74 | Available to order | 1 |
| 27 | 0800-062202-10001 DRIVEN BEVEL GEAR BEARING SEAT | DRIVEN BEVEL GEAR BEARING SEAT | 1 | $89.69 | Obsolete | View Details |
| 28-03 | 0800-062203 ADJUST SHIM, DRIVEN BEVEL GEAR | ADJUST SHIM, DRIVEN BEVEL GEAR T=0.1 | 1 | $3.44 | Available to order | 1 |
| 28-04 | 0800-062203-0001 SHIM, DRIVEN BEVEL GEAR | SHIM, DRIVEN BEVEL GEAR T=0.2 | 1 | $3.44 | Available to order | 1 |
| 28-05 | 0800-062203-0002 SHIM, DRIVEN BEVEL GEAR | SHIM, DRIVEN BEVEL GEAR T=0.3 | 1 | $2.29 | Available to order | 1 |
| 28-06 | 0800-062203-0003 SHIM, DRIVEN BEVEL GEAR | SHIM, DRIVEN BEVEL GEAR T=0.4 | 1 | $2.29 | Available to order | 1 |
| 28-01 | 0800-062203-0004 SHIM, DRIVEN BEVEL GEAR | SHIM, DRIVEN BEVEL GEAR T=0.5 | 1 | $2.29 | Available to order | 1 |
| 28-02 | 0800-062203-0050 ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.15 | ADJUSTING GASKET, DRIVEN BEVEL GEAR T=0.15 T=0.15 | 1 | $1.83 | Available to order | 1 |
| 29 | 0180-062205 O-RING 88x2.5 | O-RING 88x2.5 88x2.5 | 1 | $10.34 | Available to order | 1 |
| 30 | 30499-02501 BALL BEARING 6305 | BALL BEARING 6305 25 | 1 | $57.49 | Available to order | 1 |
| 31 | 0800-062206 STOPPER NUT, BEARING | STOPPER NUT, BEARING | 1 | $10.34 | Available to order | 1 |
| 32 | 30400-03500 BALL BEARING 6207c3 | BALL BEARING 6207c3 35 | 1 | $26.44 | Available to order | 1 |
