2012 SNO PRO 600 GREEN
Parts Diagrams
Showing OEM parts for your 2012 Arctic Cat SNO PRO 600 GREEN
A-ARM AND SWAY BAR ASSEMBLY
24 parts
AIR SILENCER, CARBURETOR, AND FUEL PUMP ASSEMBLY
46 parts
BELT GUARD ASSEMBLY
12 parts
CARBURETOR - EXTERNAL PARTS
22 parts
CARBURETOR - INTERNAL PARTS
42 parts
CHAIN CASE ASSEMBLY
32 parts

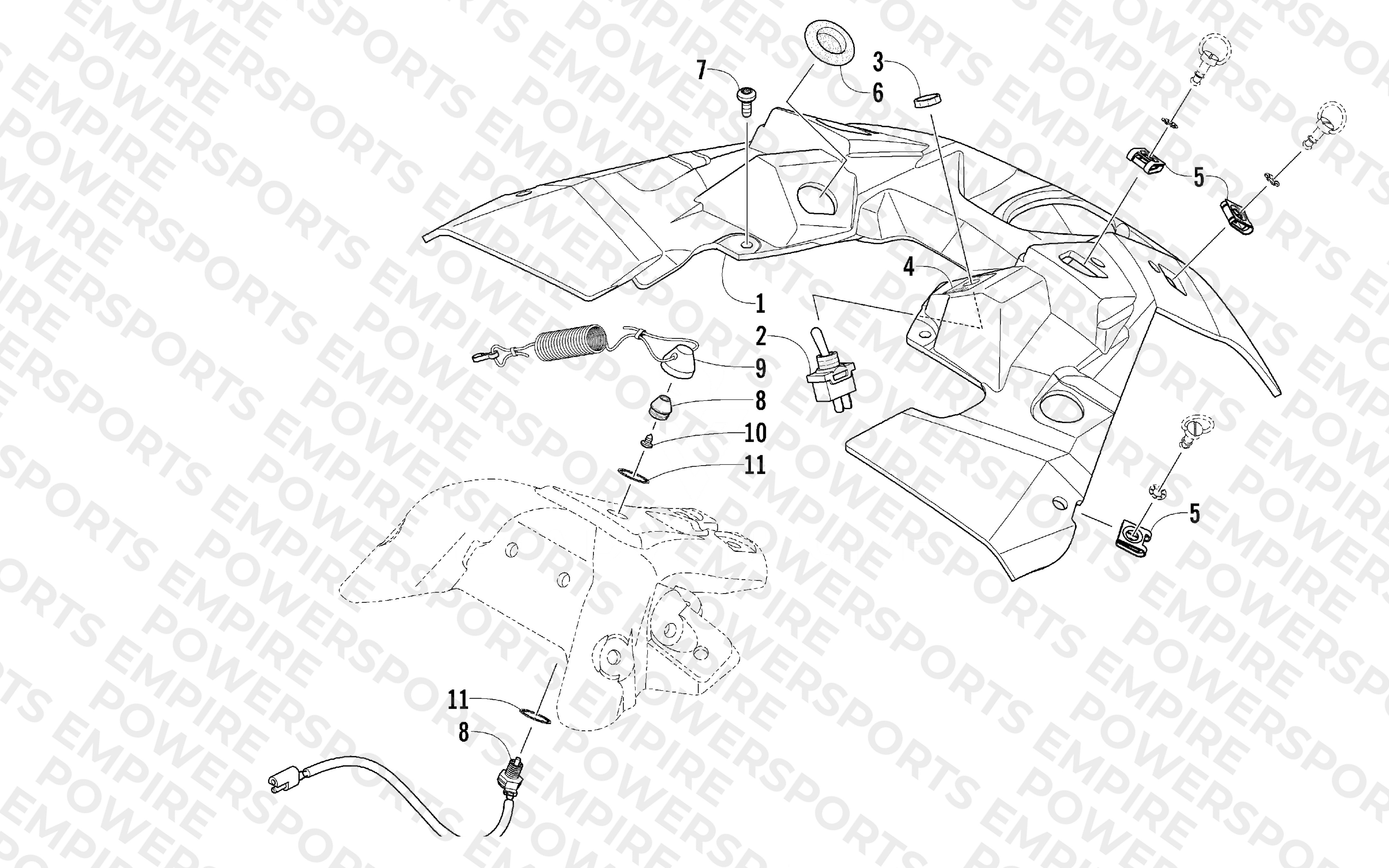

CONSOLE AND SWITCH ASSEMBLY
11 parts
COOLING ASSEMBLY
30 parts
CRANKCASE ASSEMBLY
12 parts
CYLINDER AND HEAD ASSEMBLY
32 parts
DRIVE CLUTCH
10 parts
DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
31 parts
DRIVEN CLUTCH
14 parts
ELECTRICAL
11 parts
ELECTRICAL PANEL ASSEMBLY
8 parts
ENGINE AND RELATED PARTS
26 parts
EXHAUST ASSEMBLY
29 parts
FRONT BUMPER AND FRAME ASSEMBLY
29 parts
FRONT SUSPENSION SHOCK ABSORBER
75 parts
GAS TANK AND TAILLIGHT ASSEMBLY
32 parts
HANDLEBAR ASSEMBLY
14 parts
HEADLIGHT AND WIRING ASSEMBLY
14 parts

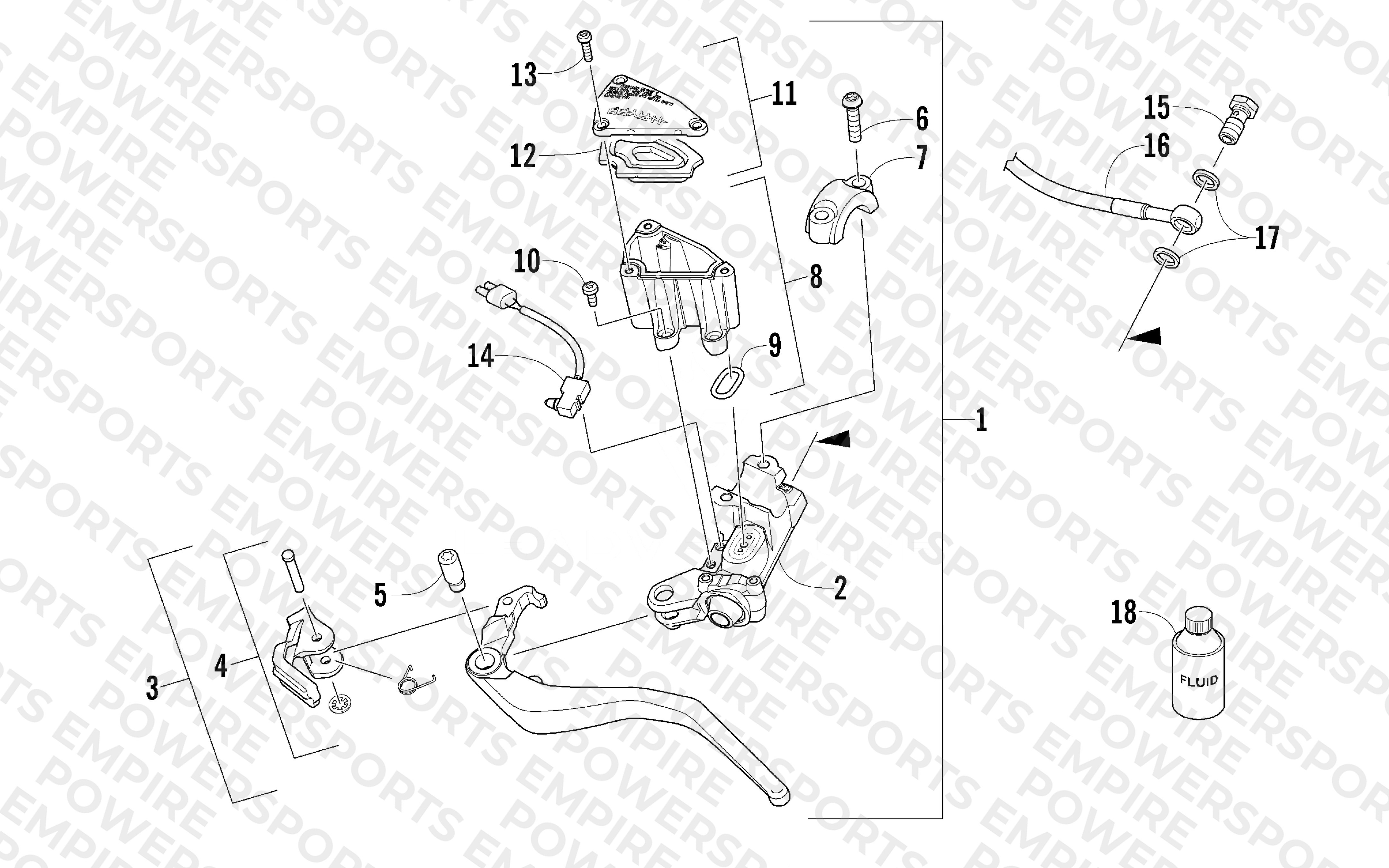

HYDRAULIC BRAKE CONTROL ASSEMBLY
18 parts
IDLER WHEEL ASSEMBLY
28 parts
MAGNETO
12 parts
PISTON AND CRANKSHAFT
36 parts

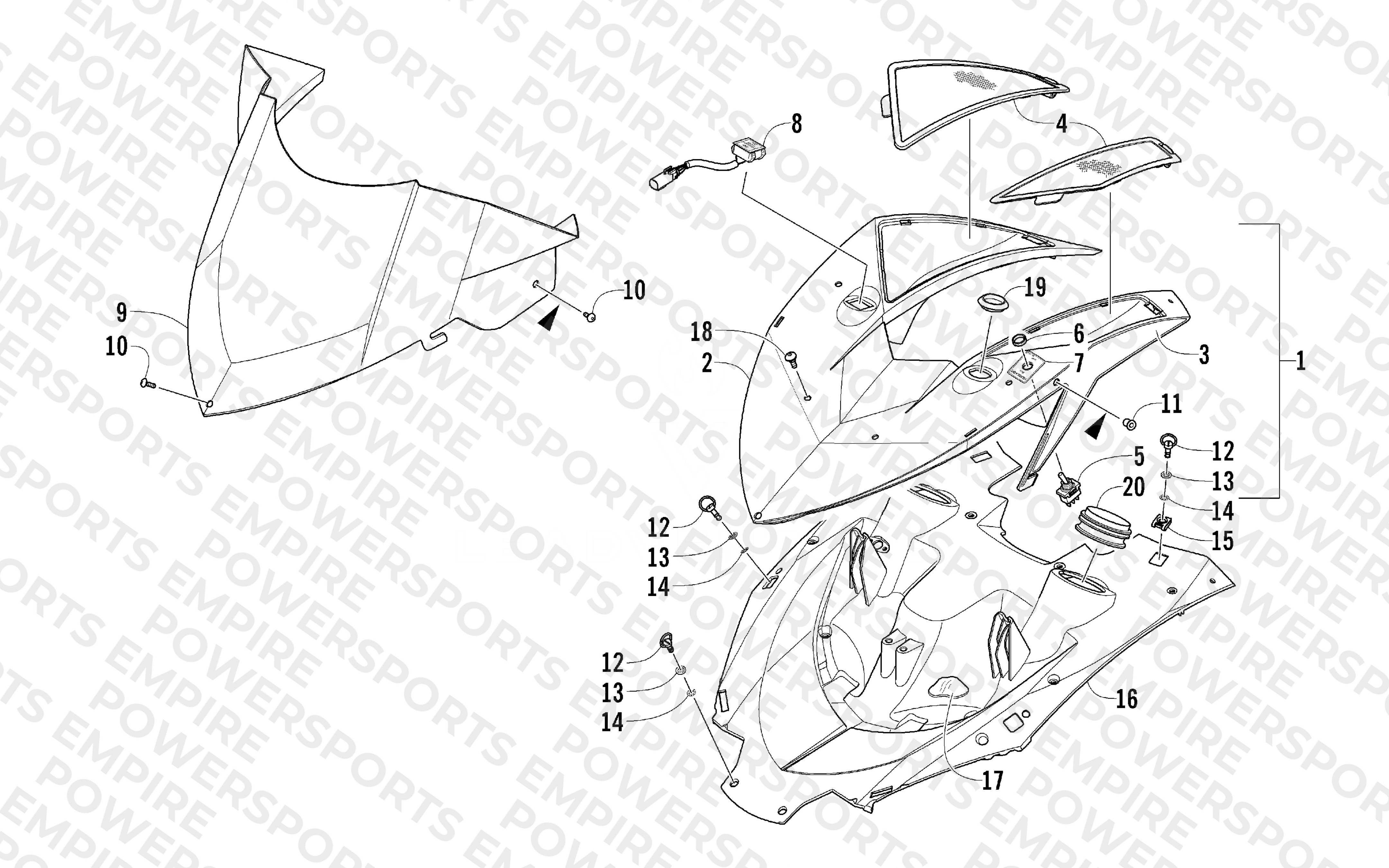

POD AND WINDSHIELD ASSEMBLY
22 parts
REAR SUSPENSION FRONT ARM ASSEMBLY
21 parts
REAR SUSPENSION FRONT ARM SHOCK ABSORBER
48 parts

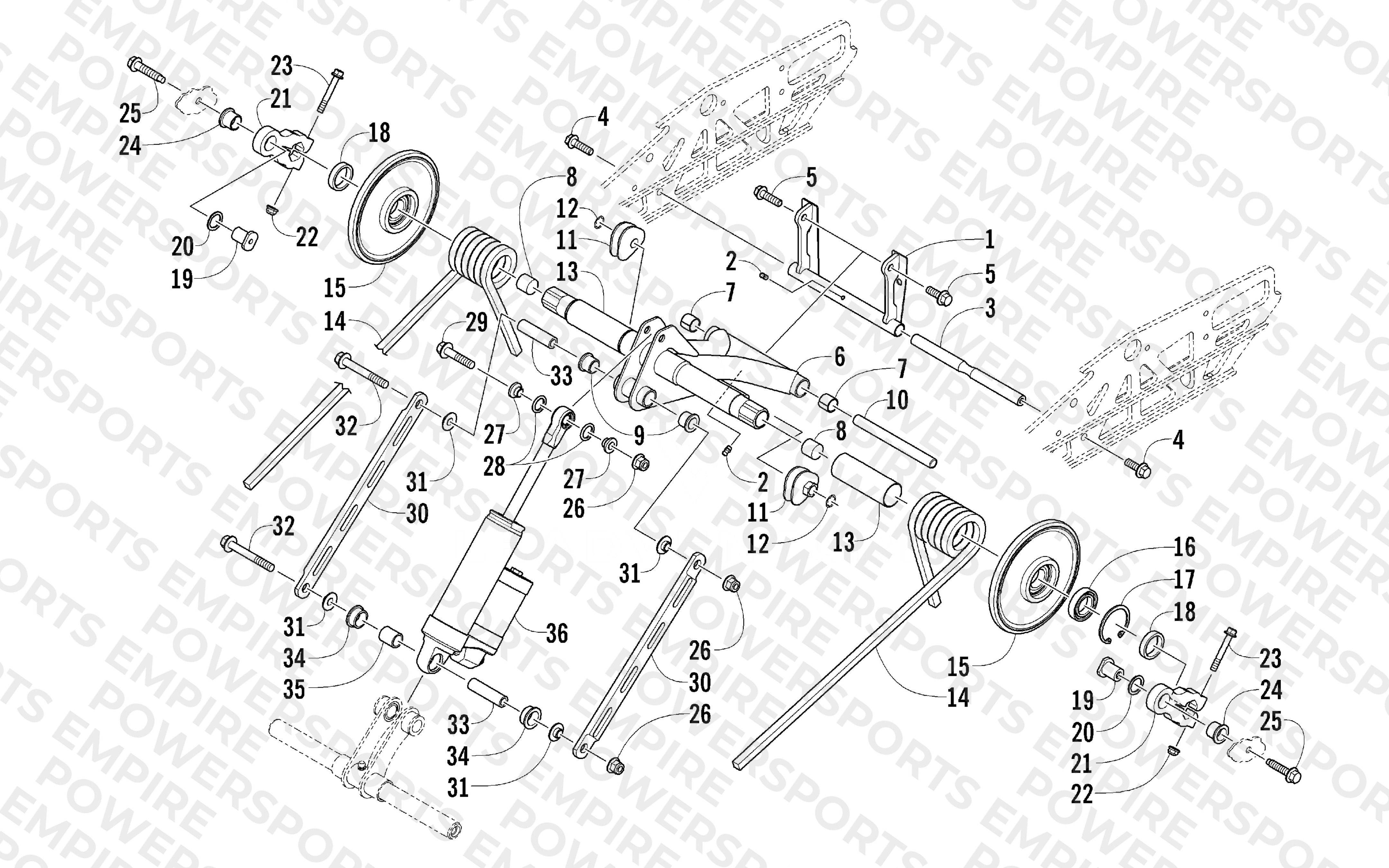

REAR SUSPENSION REAR ARM ASSEMBLY
38 parts
REAR SUSPENSION REAR ARM SHOCK ABSORBER
55 parts
RECOIL STARTER
12 parts
REED VALVE ASSEMBLY
6 parts
SEAT ASSEMBLY
5 parts
SERVOMOTOR ASSEMBLY
3 parts
SHOCK ABSORBER ASSEMBLY
7 parts
SKI AND SPINDLE ASSEMBLY
17 parts
SKID PLATE AND SIDE PANEL ASSEMBLY
56 parts
SLIDE RAIL AND TRACK ASSEMBLY
29 parts
STEERING POST ASSEMBLY
11 parts
STEERING SUPPORT ASSEMBLY
31 parts
THROTTLE CONTROL ASSEMBLY
14 parts
TIE ROD ASSEMBLY
16 parts
TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
70 parts
WATER PUMP AND THERMOSTAT
16 parts
