2020 ALTERRA 570 DYNAMIC GRAY
Parts Diagrams
Showing OEM parts for your 2020 Arctic Cat ALTERRA 570 DYNAMIC GRAY
AIR INTAKE ASSEMBLY
21 parts
BATTERY AND STARTER ASSEMBLY
24 parts
CAM CHAIN ASSEMBLY
10 parts
CASE/BELT COOLING ASSEMBLY
7 parts

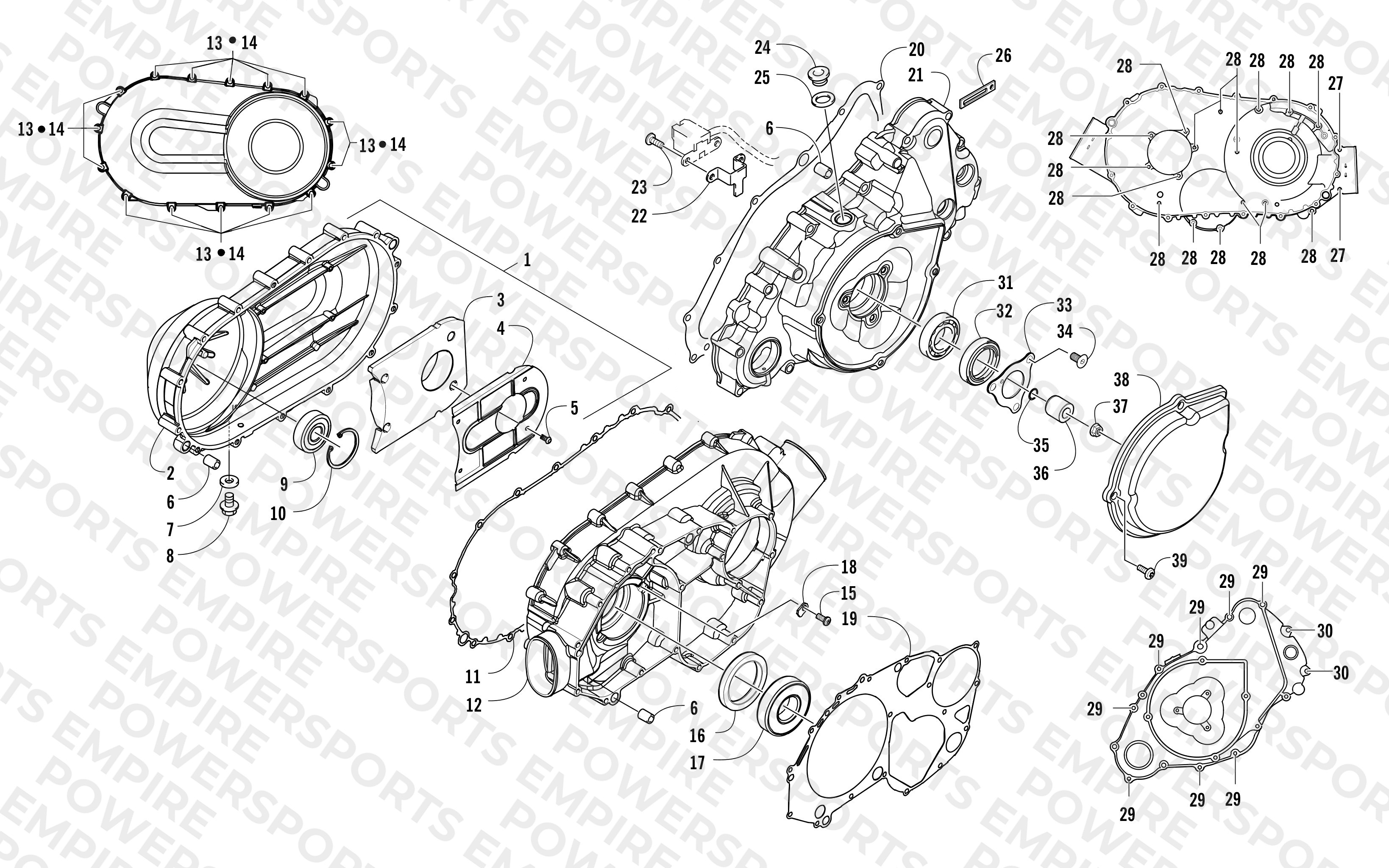

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY
39 parts
CONSOLE AND INSTRUMENT ASSEMBLY
14 parts
COOLING ASSEMBLY
26 parts

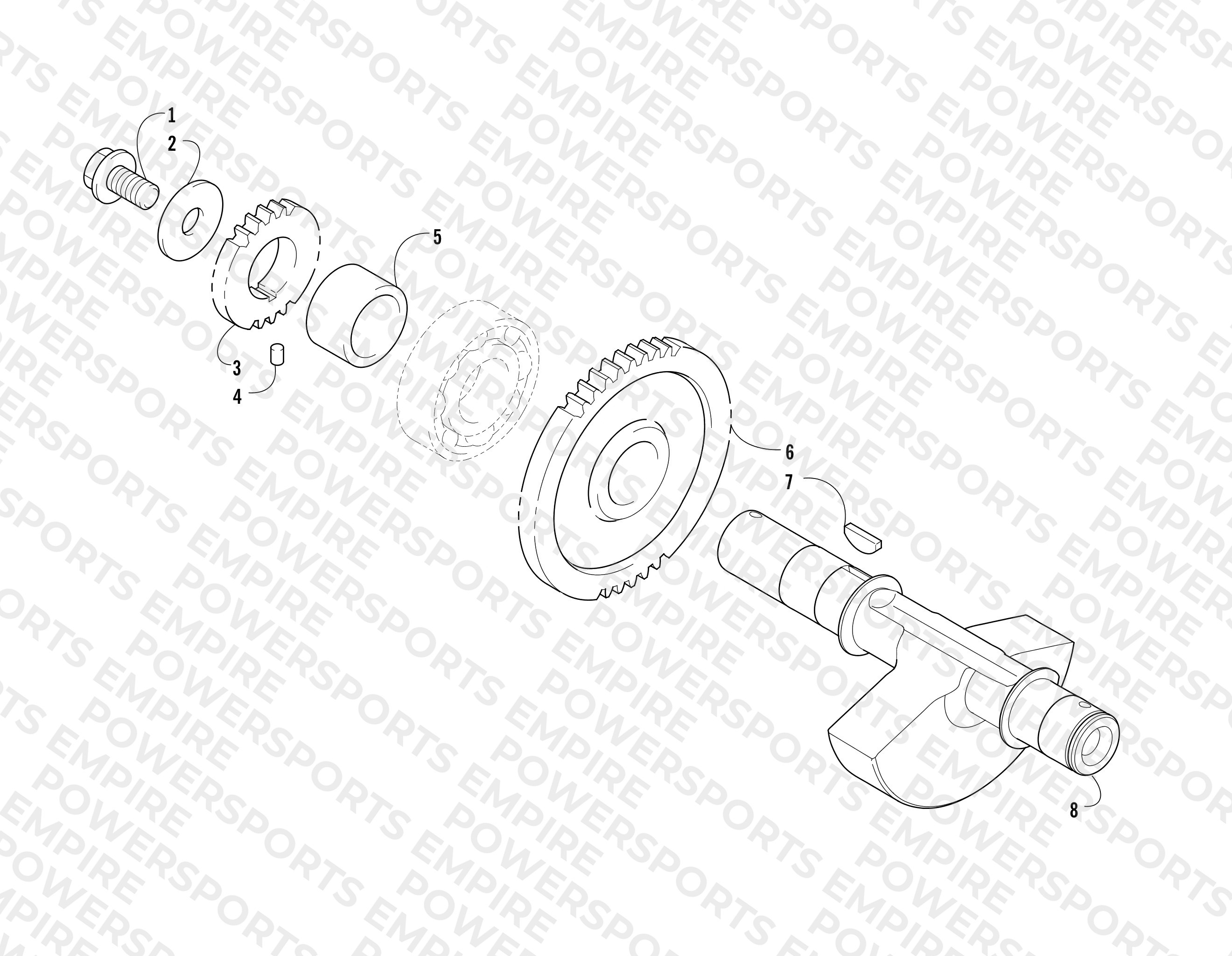

CRANK BALANCER ASSEMBLY
8 parts
CRANKCASE ASSEMBLY
33 parts
CRANKSHAFT AND PISTON ASSEMBLY
5 parts
CYLINDER ASSEMBLY
8 parts
CYLINDER HEAD AND CAMSHAFT/VALVE ASSEMBLY
41 parts
DECALS
6 parts
DRIVE TRAIN ASSEMBLY
19 parts

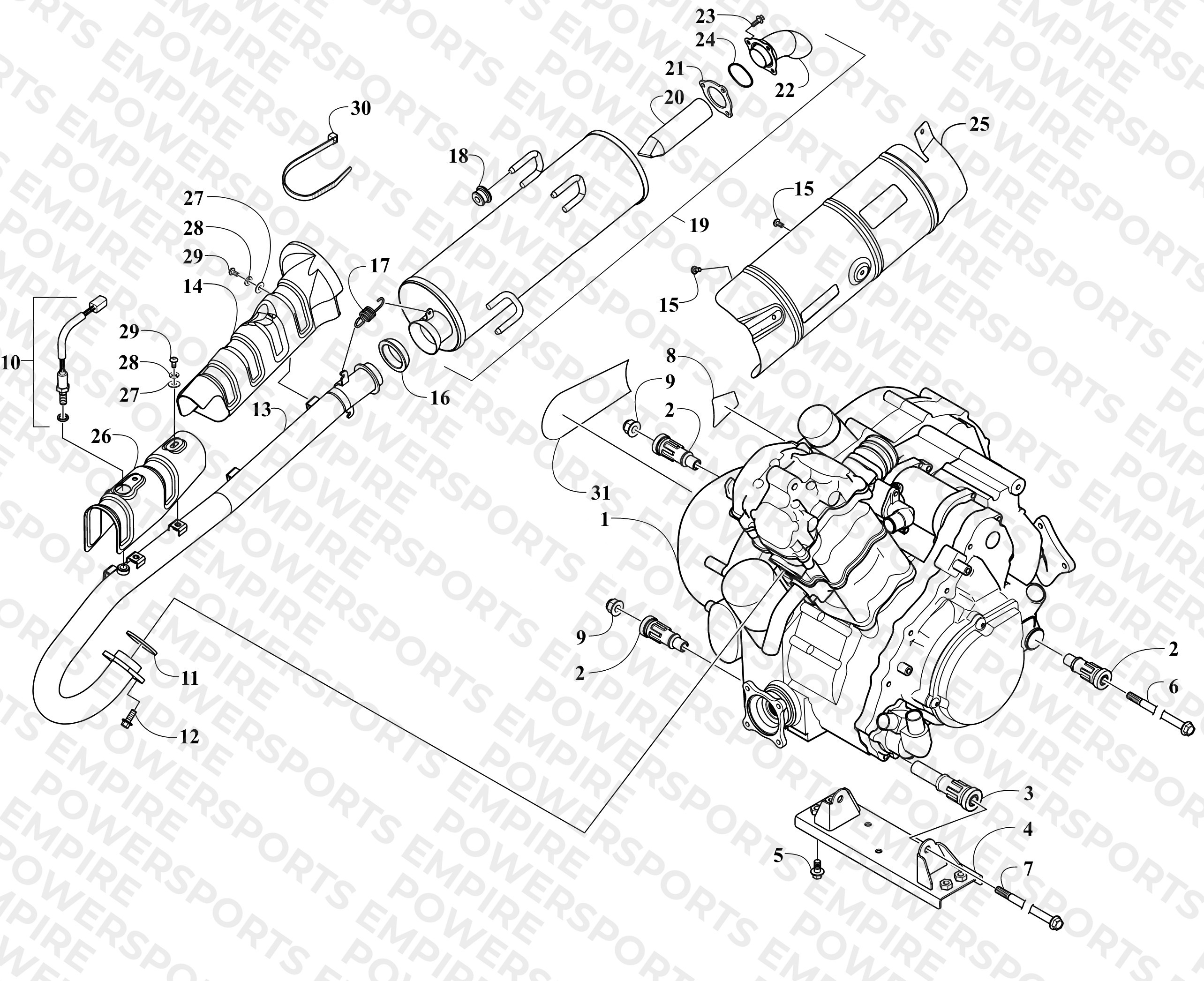

ENGINE AND EXHAUST
31 parts
FRAME AND RELATED PARTS
9 parts

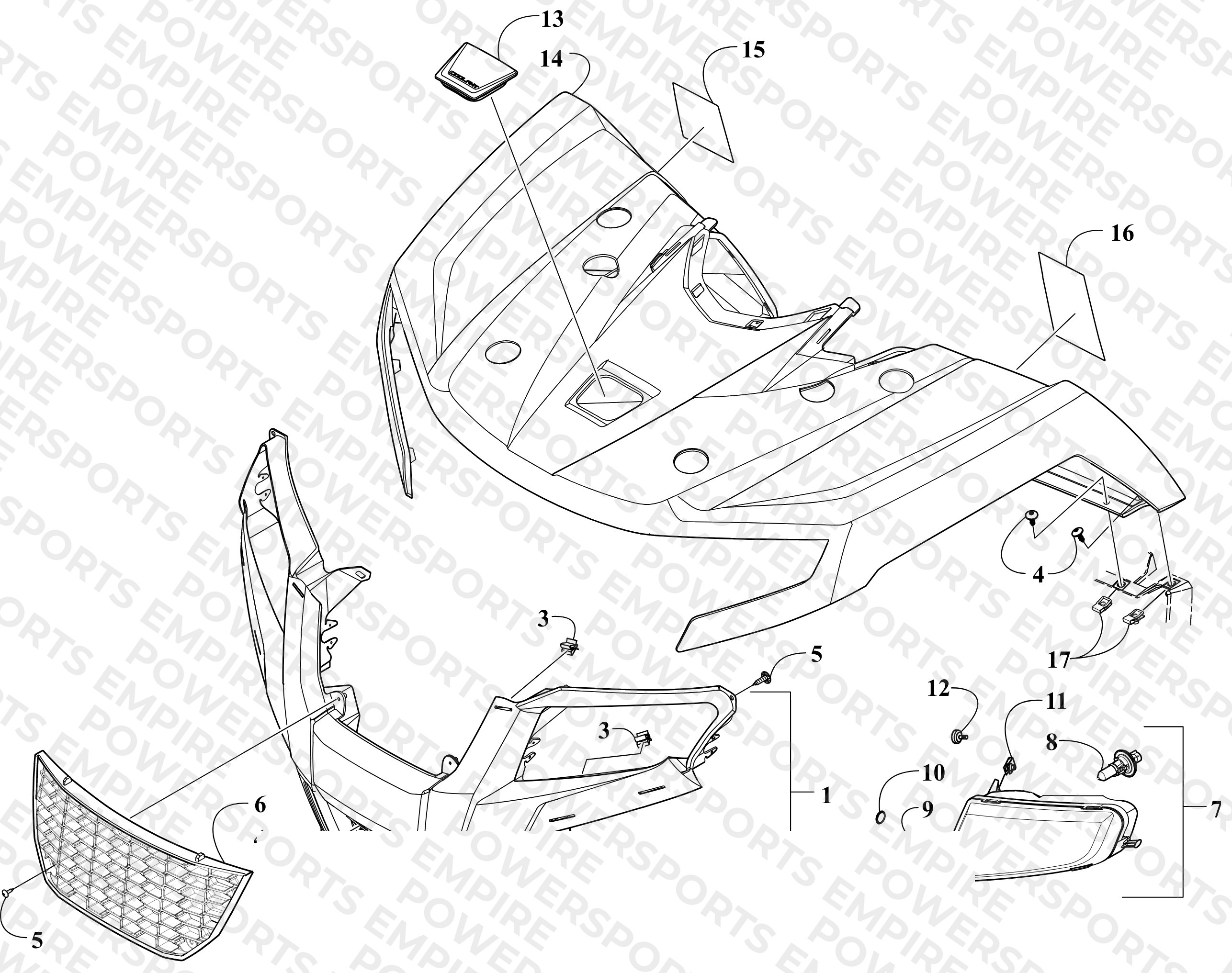

FRONT BODY PANEL AND HEADLIGHT ASSEMBLIES
20 parts

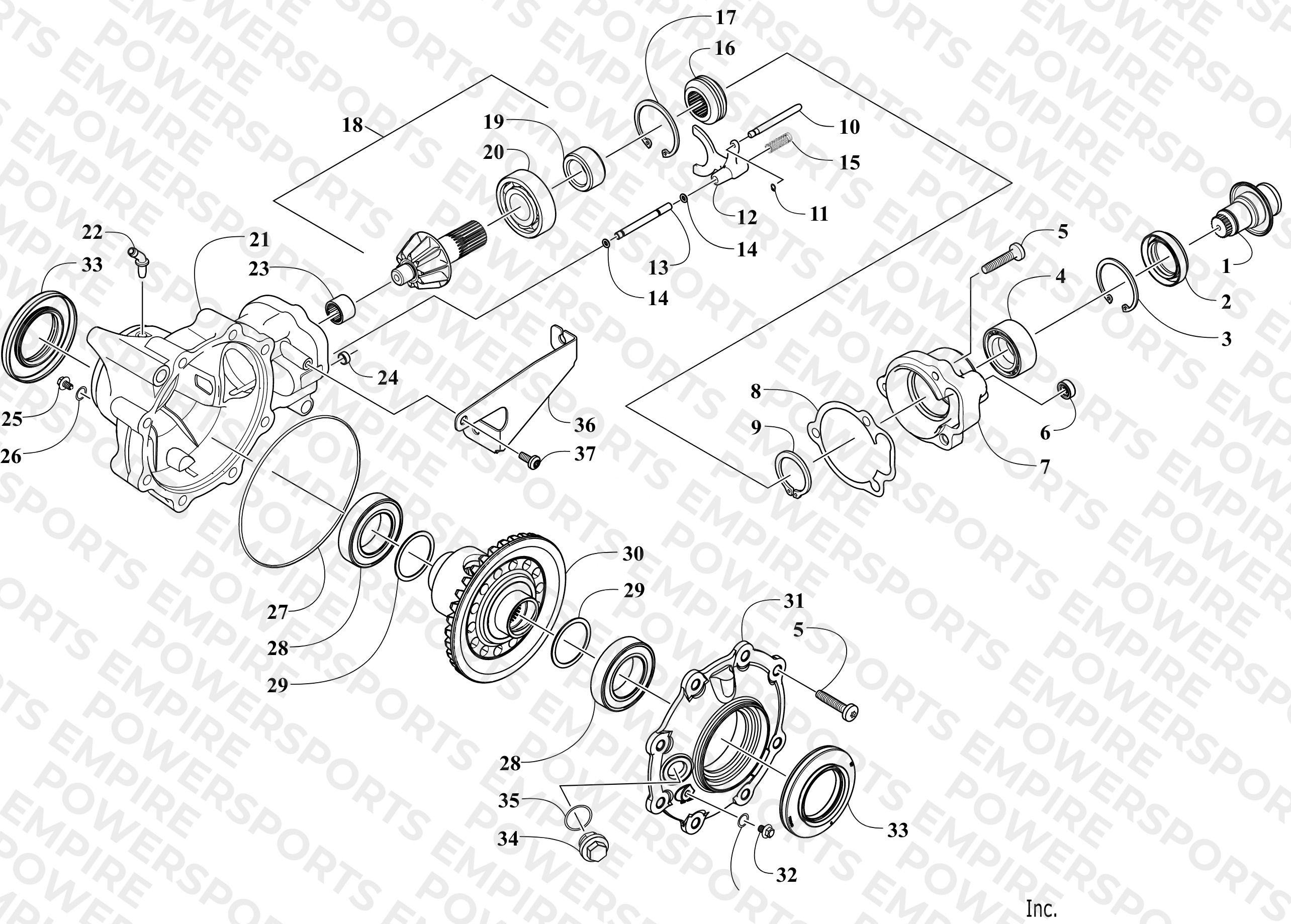

FRONT DRIVE GEARCASE ASSEMBLY
38 parts
FRONT RACK AND SIDE PANEL ASSEMBLIES
25 parts
FRONT SUSPENSION ASSEMBLY
29 parts
GAS TANK ASSEMBLY
22 parts
GEAR SHIFTING ASSEMBLY
22 parts
HANDLEBAR ASSEMBLY
18 parts
HYDRAULIC BRAKE ASSEMBLY
44 parts
MAGNETO ASSEMBLY
7 parts
OIL FILTER/PUMP ASSEMBLY
15 parts
REAR DRIVE GEARCASE ASSEMBLY
40 parts
REAR RACK, BODY PANEL, FOOTWELL AND TAILLIGHT ASSEMBLIES
28 parts
REAR SUSPENSION ASSEMBLY
27 parts
SEAT ASSEMBLY
16 parts
SECONDARY DRIVE ASSEMBLY
21 parts

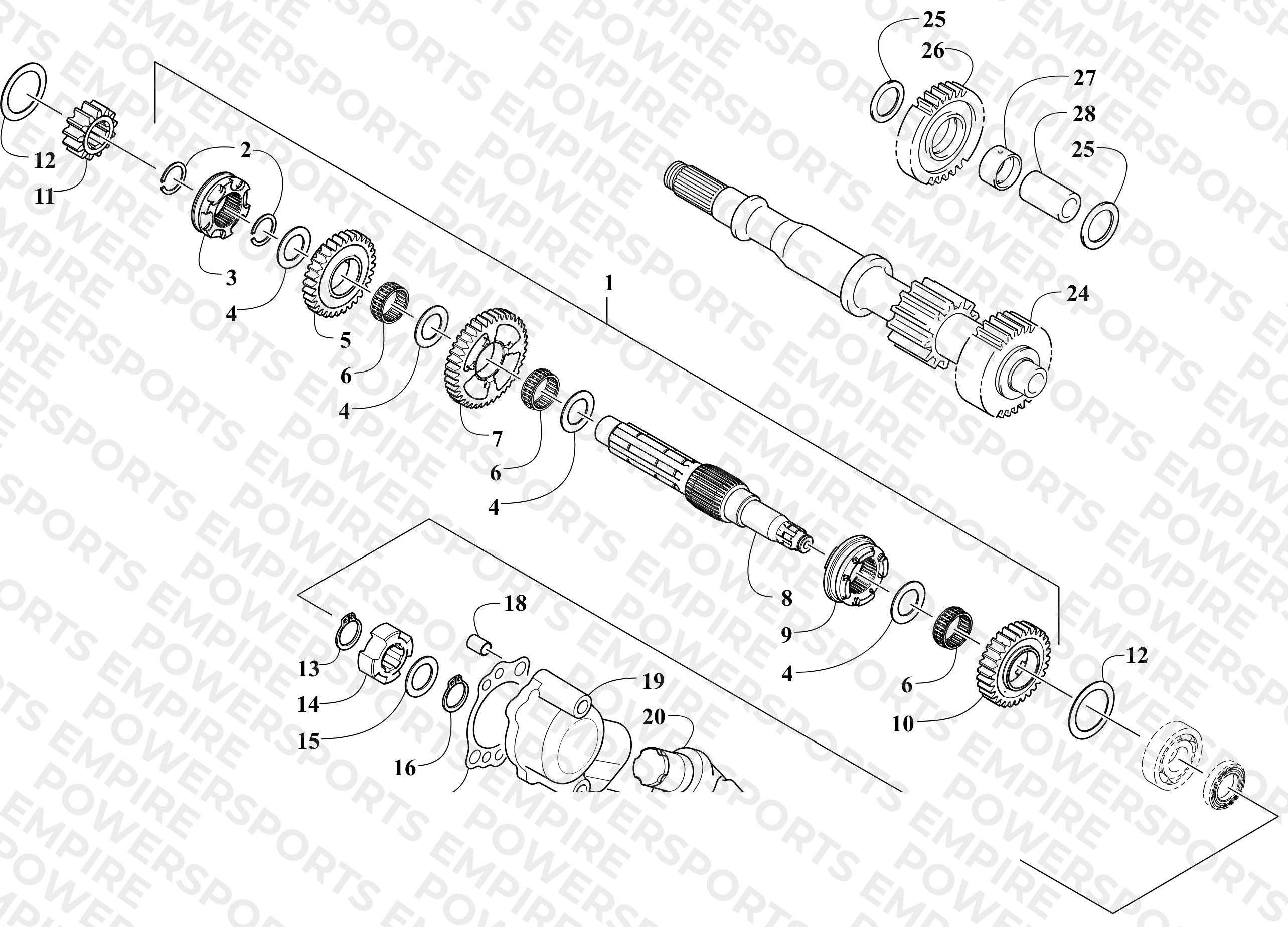

SECONDARY TRANSMISSION ASSEMBLY
28 parts
SHIFT LEVER ASSEMBLY
19 parts
STARTER CLUTCH ASSEMBLY
10 parts
STEERING ASSEMBLY
20 parts
THROTTLE BODY ASSEMBLY
17 parts
TRANSMISSION ASSEMBLY
23 parts
WATER PUMP ASSEMBLY
12 parts
WHEEL AND TIRE ASSEMBLY
16 parts
WIRING HARNESS ASSEMBLY
31 parts
