2002 MOUNTAIN CAT 570
Parts Diagrams
Showing OEM parts for your 2002 Arctic Cat MOUNTAIN CAT 570
AIR SILENCER ASSEMBLY
24 parts

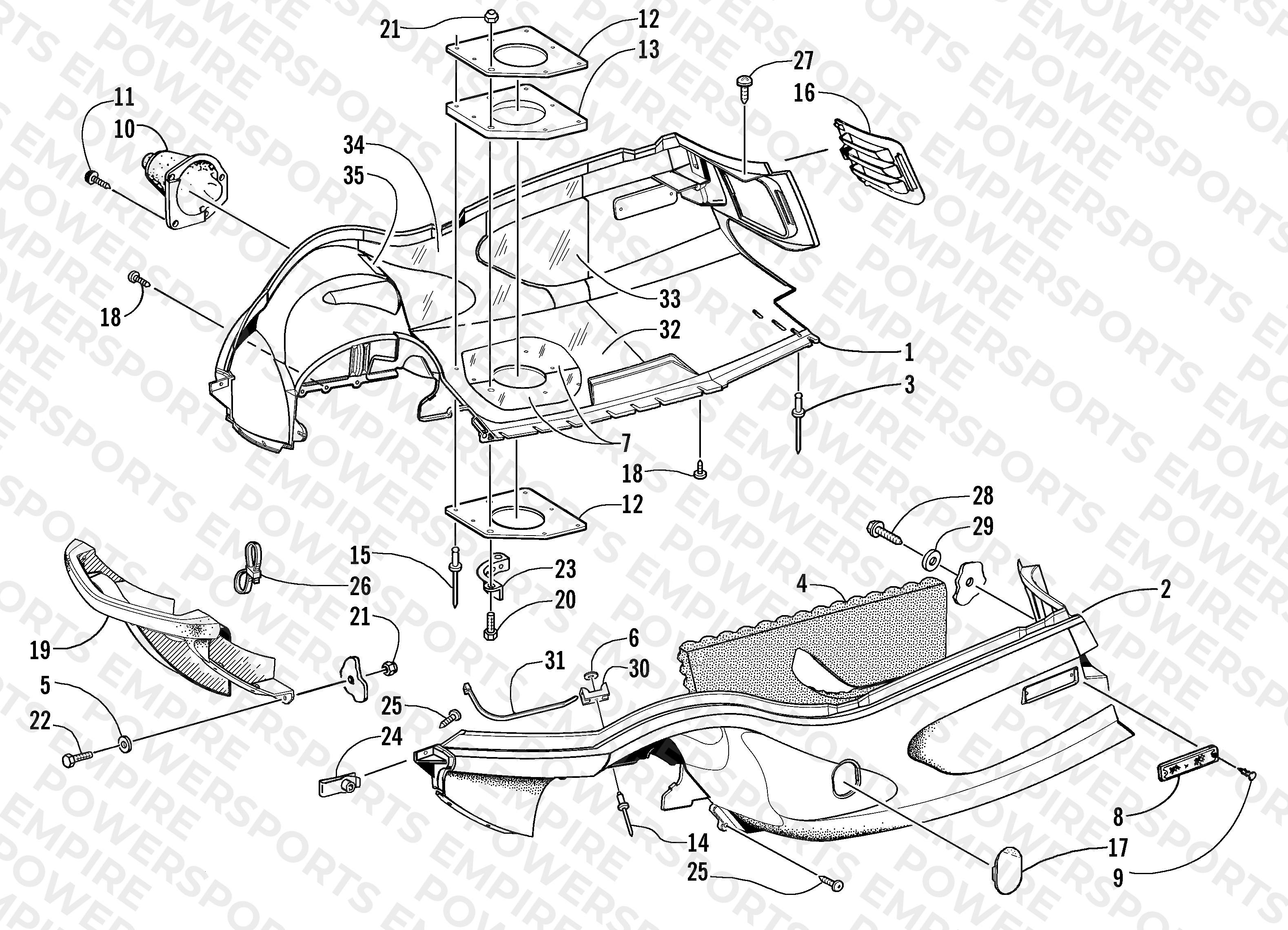

BELLY PAN AND FRONT BUMPER ASSEMBLY
37 parts

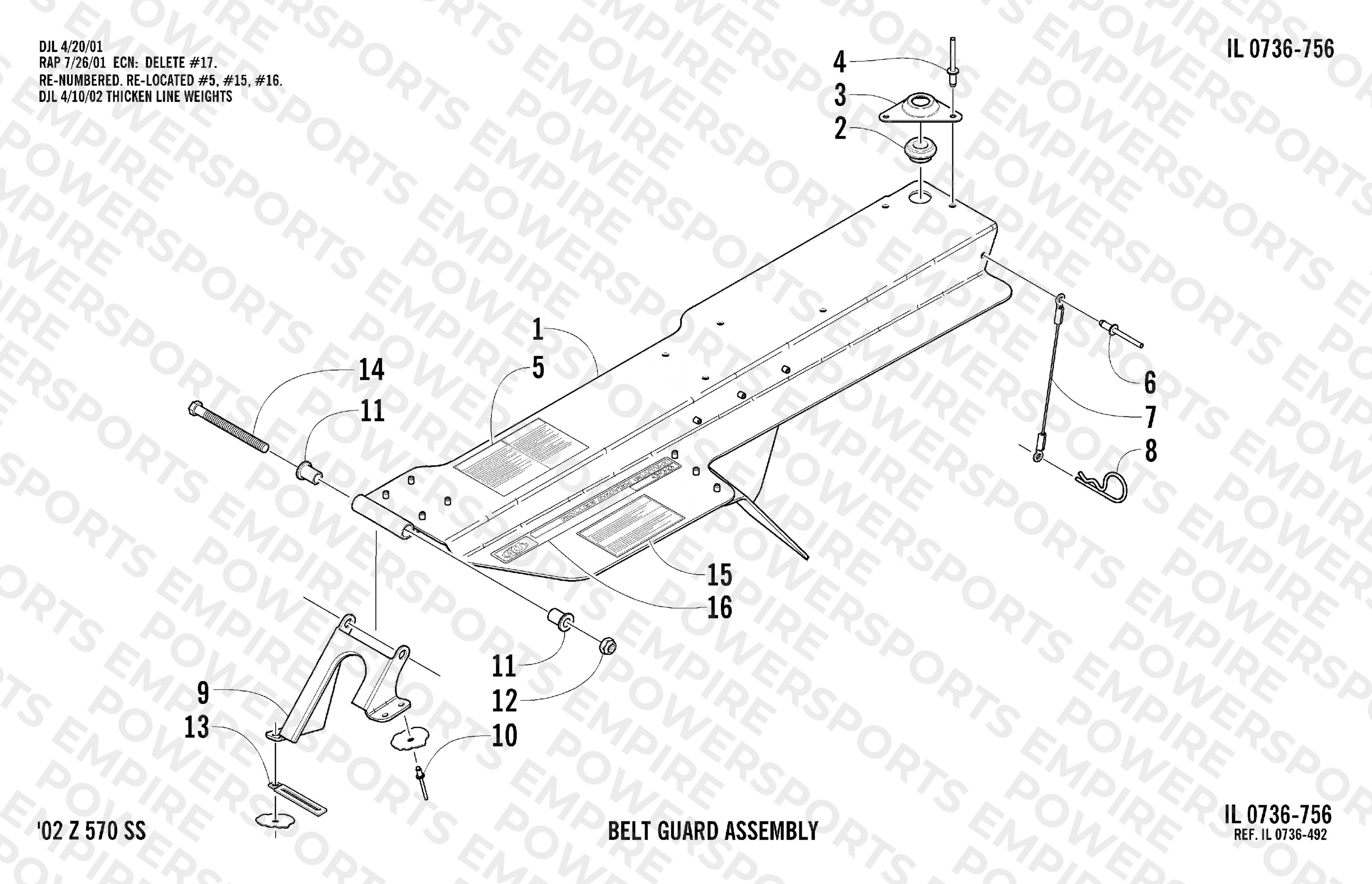

BELT GUARD ASSEMBLY
16 parts
CARBURETOR
40 parts
CARBURETOR AND FUEL PUMP ASSEMBLY
22 parts
COOLING FAN AND CYLINDER COWLING ASSEMBLY
10 parts

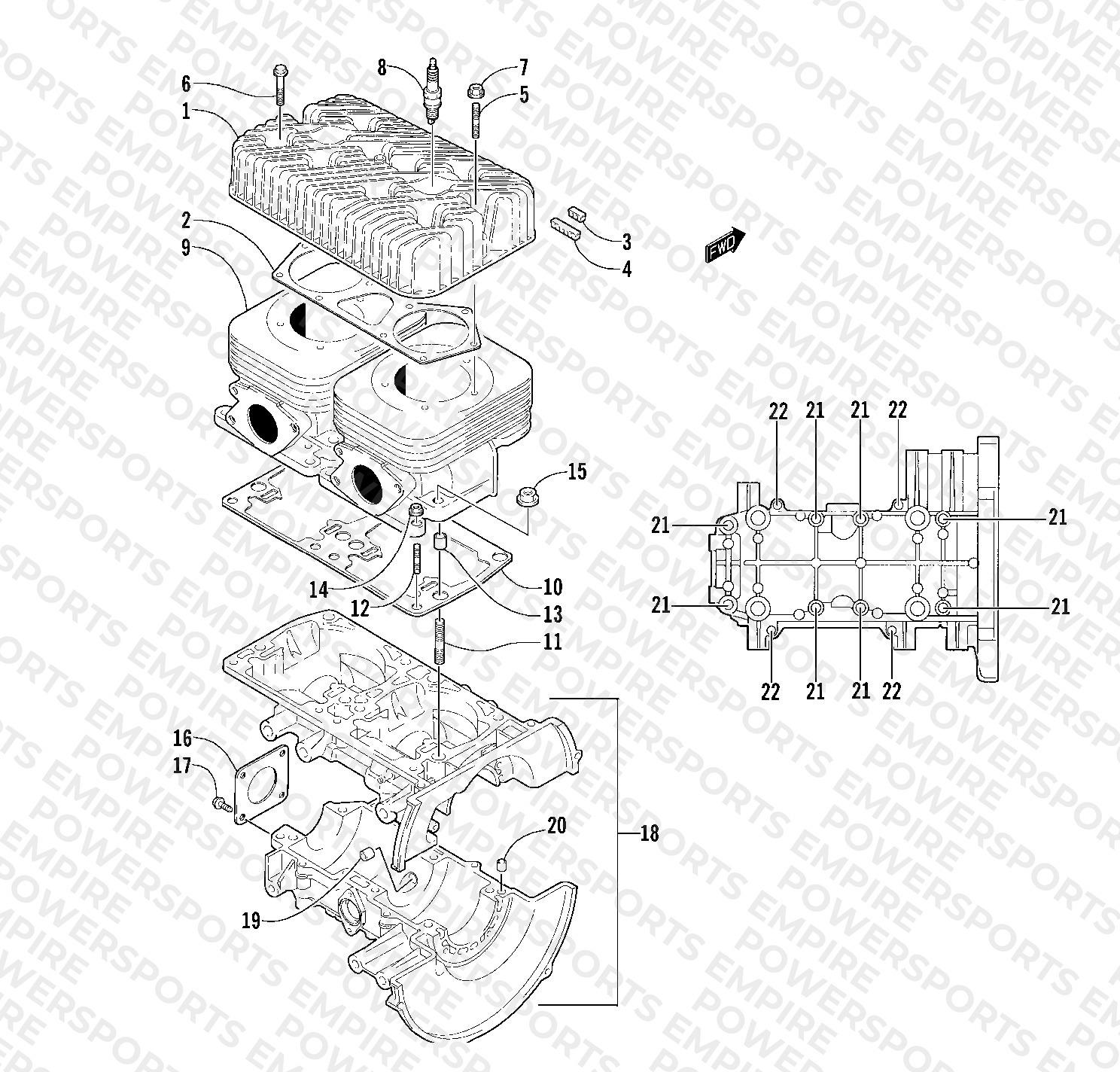

CRANKCASE AND CYLINDER
22 parts
DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
45 parts
DRIVE/DROPCASE ASSEMBLY
57 parts
DRIVE/REVERSE DROPCASE ASSEMBLY (Optional)
46 parts
ELECTRICAL
6 parts
ENGINE AND RELATED PARTS
32 parts
EXHAUST ASSEMBLY
30 parts
FRONT FRAME AND FOOTREST ASSEMBLY
35 parts
FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY
13 parts
HANDLEBAR AND CONTROLS
31 parts
HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
28 parts
HOOD AND WINDSHIELD ASSEMBLY
44 parts
INTAKE ASSEMBLY
9 parts
MAGNETO
11 parts
PISTON AND CRANKSHAFT
32 parts
RECOIL STARTER
11 parts
SLIDE RAIL AND TRACK ASSEMBLY
30 parts
TUNNEL AND REAR BUMPER
39 parts
