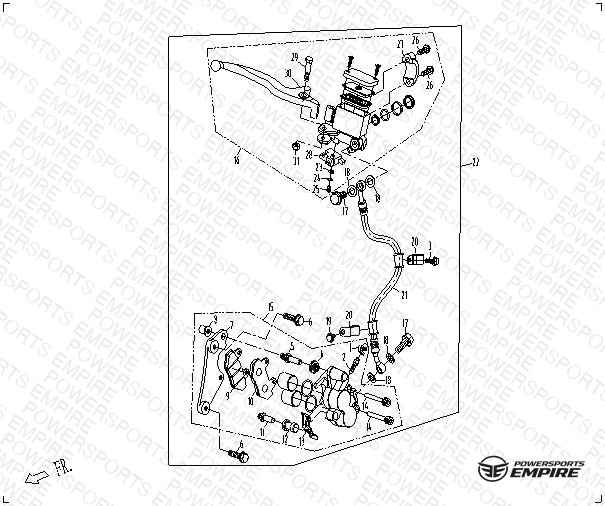

F16 — HYDRAULIC BRAKE (FRONT)
Parts (31)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5190-080155 COVER, BLEED BOLT | COVER, BLEED BOLT | 6 | $1.14 | Obsolete | View Details |
| 02 | 5190-080154 BLEED BOLT | BLEED BOLT | 6 | $2.29 | Obsolete | View Details |
| 03 | 30006-060012870 BOLT M6x12 | BOLT M6x12 ARMY GREEN | 6 | $1.25 | Available to order | 6 |
| 04 | 5190-080262 RUBBER COLLAR, MAIN SLIDING SHAFT | RUBBER COLLAR, MAIN SLIDING SHAFT | 6 | $1.14 | Obsolete | View Details |
| 05 | 5190-080263 MAIN SLIDING SHAFT | MAIN SLIDING SHAFT | 1 | $2.29 | Obsolete | View Details |
| 06 | 30006-080032840 BOLT, M8x32 | BOLT, M8x32 | 6 | $1.14 | Obsolete | View Details |
| 07 | 6050-080170 MOUNTING BRACKET | MOUNTING BRACKET | 1 | $34.49 | Obsolete | View Details |
| 08 | 5190-080264 GUIDE ROD, OUTER BRAKE PAD | GUIDE ROD, OUTER BRAKE PAD | 1 | $2.29 | Obsolete | View Details |
| 09 | 6050-080180 OUTER BRAKE PAD | OUTER BRAKE PAD | 1 | $17.24 | Obsolete | View Details |
| 10 | 6050-0801A0 FRONT BRAKE PAD COMP. | FRONT BRAKE PAD COMP. | 1 | $22.99 | Obsolete | View Details |
| 11 | 5190-080259 SECONDARY SLIDING SHAFT | SECONDARY SLIDING SHAFT | 1 | $2.29 | Obsolete | View Details |
| 12 | 5190-080164 RUBBER COLLAR, SECONDARY SLIDING SHAFT | RUBBER COLLAR, SECONDARY SLIDING SHAFT | 1 | $2.29 | Obsolete | View Details |
| 13 | 5190-080254 BRAKE PAD TONGUE | BRAKE PAD TONGUE | 1 | $2.29 | Obsolete | View Details |
| 14 | 5190-080253 GUIDE ROD | GUIDE ROD | 1 | $2.29 | Obsolete | View Details |
| 15 | 6050-080150 BRAKE CALIPER COMP. | BRAKE CALIPER COMP. | 1 | $91.99 | Obsolete | View Details |
| 16 | 6050-080110 BRAKE PUMP COMP. | BRAKE PUMP COMP. | 1 | $80.49 | Obsolete | View Details |
| 17 | 5190-080103 DRAIN BOLT | DRAIN BOLT | 1 | $3.44 | Obsolete | View Details |
| 18 | 5190-080104 SEAL WASHER | SEAL WASHER | 2 | $2.29 | Available to order | 2 |
| 19 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 20 | 6050-080103 CLAMP | CLAMP | 6 | $3.44 | Obsolete | View Details |
| 21 | 6050-080130 HOSE COMP., FRONT BRAKE | HOSE COMP., FRONT BRAKE | 1 | $57.49 | Obsolete | View Details |
| 22 | 6050-080100 FRONT HYDRAULIC BRAKE | FRONT HYDRAULIC BRAKE | 1 | $164.99 | Obsolete | View Details |
| 23 | 30304-040420 WASHER 4 | WASHER 4 | 6 | $2.29 | Obsolete | View Details |
| 24 | 30303-040042 WASHER 4 | WASHER 4 | 6 | $1.14 | Obsolete | View Details |
| 25 | 30105-040010440 SCREW, M4X10 | SCREW, M4X10 ARMY GREEN | 6 | $1.14 | Obsolete | View Details |
| 26 | 5190-080127 BOLT | BOLT | 6 | $1.14 | Obsolete | View Details |
| 27 | 5190-080126 SEMI-COVER | SEMI-COVER | 1 | $3.44 | Obsolete | View Details |
| 28 | 5190-080125 LIGHT, REAR BRAKE | LIGHT, REAR BRAKE | 1 | $5.74 | Obsolete | View Details |
| 29 | 6050-080124 BOLT, LEVER | BOLT, LEVER | 1 | $2.29 | Obsolete | View Details |
| 30 | 5190-080123 FRONT BRAKE LEVER | FRONT BRAKE LEVER | 1 | $34.49 | Obsolete | View Details |
| 31 | 30204-060810 NUT M6 | NUT M6 | 6 | $1.25 | Available to order | 6 |
